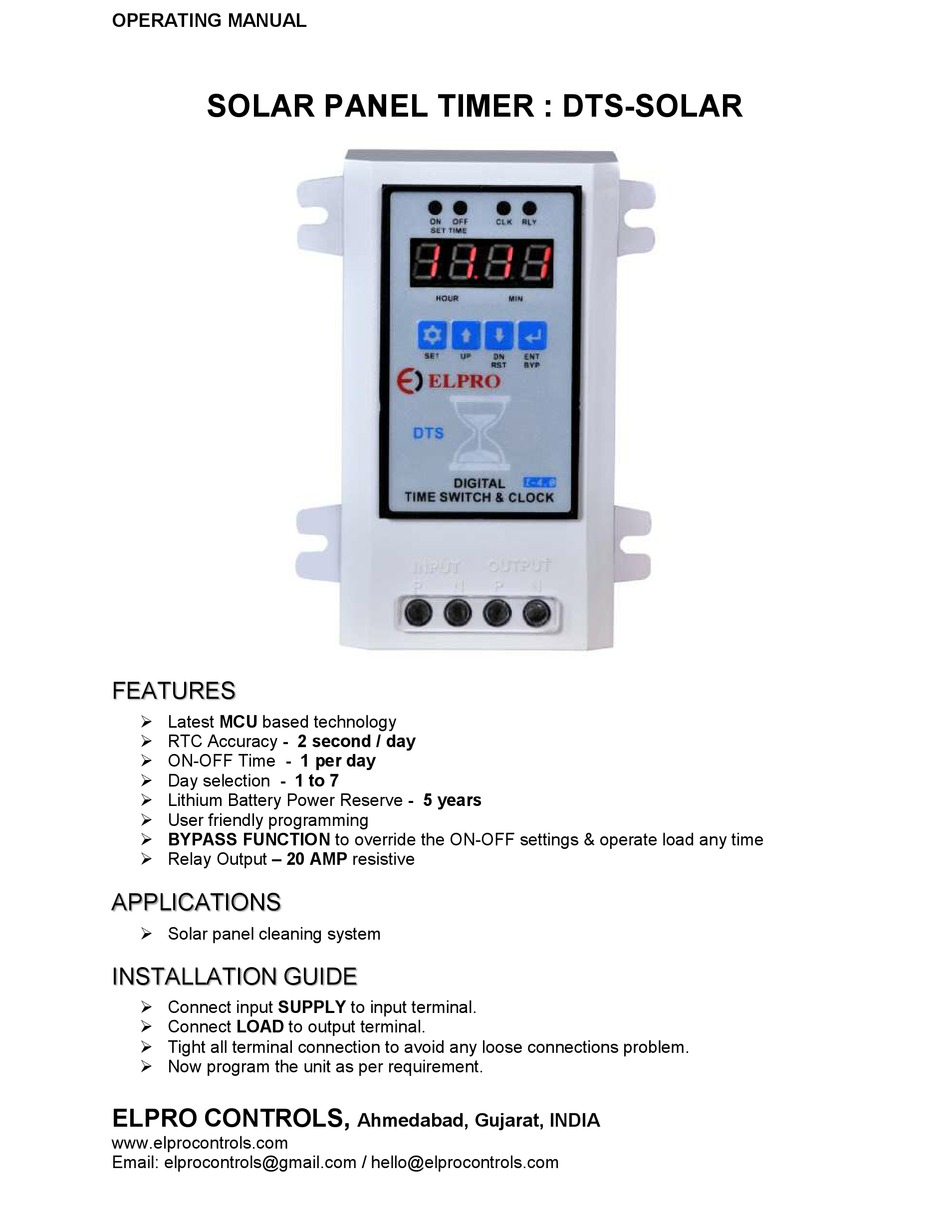

OPERATING MANUAL

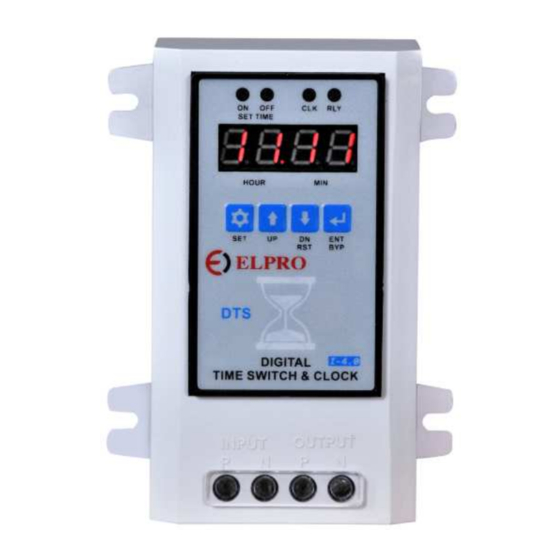

SOLAR PANEL TIMER : DTS-SOLAR

FEATURES

 Latest MCU based technology
 RTC Accuracy - 2 second / day
 ON-OFF Time - 1 per day
 Day selection - 1 to 7
 Lithium Battery Power Reserve - 5 years
 User friendly programming
 BYPASS FUNCTION to override the ON-OFF settings & operate load any time
 Relay Output – 20 AMP resistive

APPLICATIONS

 Solar panel cleaning system

INSTALLATION GUIDE

 Connect input SUPPLY to input terminal.
 Connect LOAD to output terminal.
 Tight all terminal connection to avoid any loose connections problem.
 Now program the unit as per requirement.
ELPRO CONTROLS,
www.elprocontrols.com
Email: elprocontrols@gmail.com / hello@elprocontrols.com
Ahmedabad, Gujarat, INDIA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTS-SOLAR and is the answer not in the manual?

Questions and answers

Related Manuals for ELPRO DTS-SOLAR

Summary of Contents for ELPRO DTS-SOLAR

  • Page 1 OPERATING MANUAL SOLAR PANEL TIMER : DTS-SOLAR FEATURES  Latest MCU based technology  RTC Accuracy - 2 second / day  ON-OFF Time - 1 per day  Day selection - 1 to 7  Lithium Battery Power Reserve - 5 years ...
  • Page 2  Display –rST for 2 seconds and all ON/OFF time, day value and clock value reset to factory default value. BYPASS FUNCTION  To enter bypass mode, press ENT key for 2 seconds.  Display bYPS, override the ON/OFF time settings & unit continuously ON ELPRO CONTROLS, Ahmedabad, Gujarat, INDIA www.elprocontrols.com Email: elprocontrols@gmail.com / hello@elprocontrols.com...
