OPERATING MANUAL

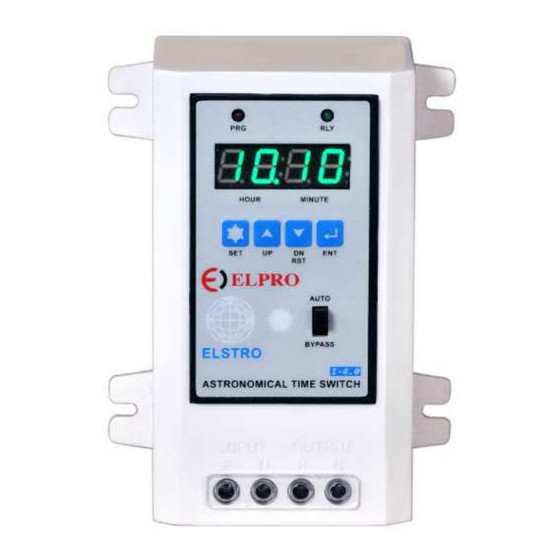

ELSTRO – ASTRONOMICAL TIME SWITCH
FEATURES
Superior MCU based technology
Dedicated Highly Accurate RTC - < 3 PPM
Latitude / Longitude precise to the minute with the TIME ZONE
Inbuilt Civil Twilight time
Lithium Battery Power Reserve - 10 years
User friendly programming
GREEN display for easily viewable in daylight
BYPASS SWITCH to override the SUNSET/SUNRISE time & operate load any time
Relay Output – 20 AMP
Variant - ELSTRO-NOFF with Night off time setting
APPLICATIONS
Street Lights, Signboards, High Mast Lighting, Parking Lights, Garden Lights
INSTALLATION GUIDE
Connect input SUPPLY to input terminal.
Connect LOAD to output terminal.
Tight all terminal connection to avoid any loose connections problem.
Now program the unit as per requirement.
ELPRO CONTROLS,
www.elprocontrols.com
Email: elprocontrols@gmail.com / hello@elprocontrols.com
Ahmedabad, Gujarat, INDIA
Advertisement
Table of Contents
Related Manuals for ELPRO ELSTRO
Summary of Contents for ELPRO ELSTRO
- Page 1 GREEN display for easily viewable in daylight BYPASS SWITCH to override the SUNSET/SUNRISE time & operate load any time Relay Output – 20 AMP Variant - ELSTRO-NOFF with Night off time setting APPLICATIONS Street Lights, Signboards, High Mast Lighting, Parking Lights, Garden Lights INSTALLATION GUIDE Connect input SUPPLY to input terminal.
- Page 2 Example : noFF = 23.59 means switch off @11.59PM in the night. non = 05.00 means switch on @05.00AM in the morning. Thus, by ELSTRO-NOFF model, switch off load in night time 11.59PM to 5.00AM. ELPRO CONTROLS, Ahmedabad, Gujarat, INDIA www.elprocontrols.com...
