Summary of Contents for Mikado VBAR EVO

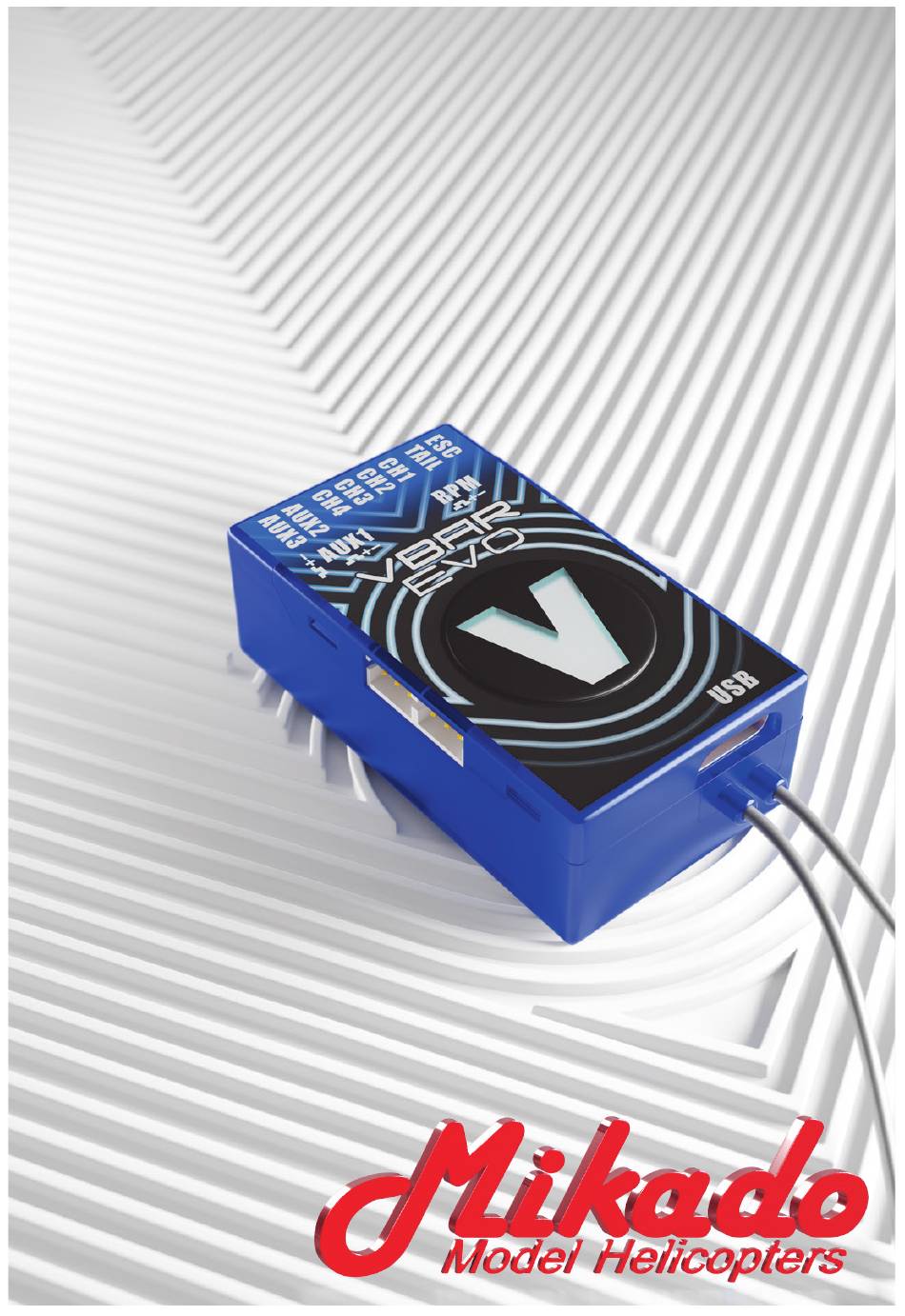

- Page 1 VBAR EVO Quick Start Guide Express-Firmware...
- Page 2 Welcome to VBar EVO! VBar EVO is an innovative product setting new standards for model helicopters in terms of flight performance and program- ming capacity. Features: • Easy setup and fine adjustments can be done with any VBar Control radio.
- Page 3 • Make sure you use a sufficient power supply. • Fail safe will be set automatically by VBar/VBar Control (motor off, servos on hold position). VBar EVO and high servo frequencies Your VBar NEO can—with update to Pro or Pro+Rescue— drive suitable servos with higher frequencies than before.

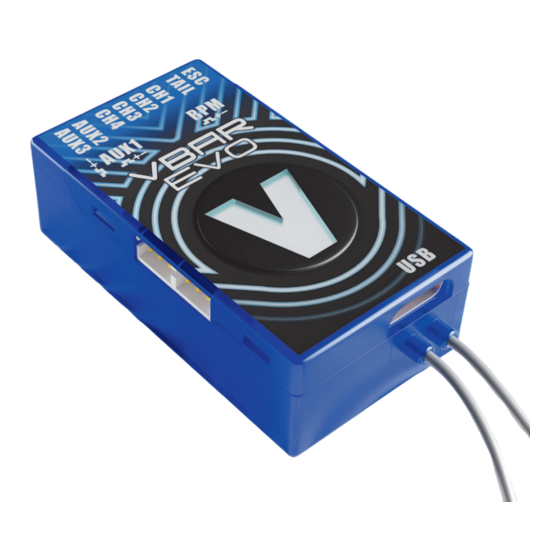

- Page 4 • Pitch Gauge (swash plate levelling tool) • For updates and extensions of VBar EVO you need the VBar Control Manager software which you can download conveniently from www.vstabi. info. Contents VBar EVO with built-in VBar Control Receiver, USB C wire, Gyro Pad.
- Page 5 2. Update and Registration Before beginning a setup, register and update your VBar Con- trol and VBar EVO. Open the VBar Control Manager, connect to your computer using the USB C wire, only then power up your VBar. The LED will flash white. The update will be performed automatically if necessary.
- Page 6 4. Bind procedure, programming VBar will go into bind mode after approx. 10 seconds. The LED will flash green-red to indicate it‘s ready for binding. Refer to your VBar Control Manual to bind your VBar to your VBar Control Transmitter. 5.
- Page 7 7. Initialization (Pitch Twitch, V is lit) During Initialization, VBar goes through a self-test. The LED will flash blue, then. The helicopter must be at rest during this test. When the test is finished, you will see a brief twitching (jump) of the swash plate, VBar Control will show ‚Connect‘.
- Page 8 45 x 25 x 15 mm / 14 g .177 x .098 x .059 in / .5 oz Accessories You will find accessories to be used with VBar on Mikado’s website www.mikado-heli.de Support Forum and extensive online manual at www.vstabi.info Email: service@mikado-heli.de...
