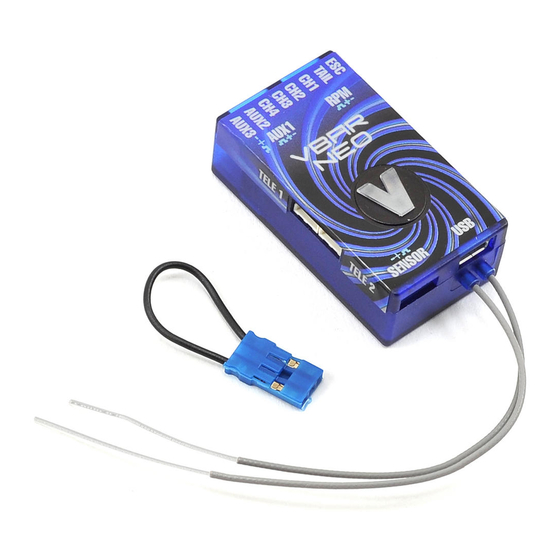

- Page 1 VBAR NEO Quick Start Guide Express-Firmware...
- Page 2 Welcome to VBar NEO! VBar NEO is an innovative product setting new standards for model helicopters in terms of flight performance and pro- gramming capacity. Features: • Easy Start setup via using either VBar Control. • Fine adjustments can be done at the field using VBar Control.
- Page 3 Safety Instructions An R/C controlled helicopter is not a toy! While moving, the rotor blades pose a serious danger to persons and things. You must obey all safety instructions of the manufacturer for operation of your helicopter. VBar is not an autopilot! VBar may be installed in model helicopters which are suitable for flying without flybar.
- Page 4 1. Items needed for first installation On first installation, you will need: • VBar NEO with built in VBar Control Satellite and a VBar Control radio • Power supply (BEC or receiver battery). • Helicopter with servos installed, but not yet connected! Only digital servos allowed! •...
- Page 5 2. Update and Registration Before beginning a setup, update your VBar Control and VBar NEO. Open the VBar Control Manager, plug the Boot Plug into the Sensor port, connect to your computer and power up your VBar. The LED will flash white. The update will be performed automatically if necessary.
- Page 6 4. Bind procedure, programming VBar will go into bind mode after approx. 10 seconds. The LED will flash green-red to indicate it‘s ready for binding. Refer to your VBar Control Manual to bind your VBar to your VBar Control Transmitter. 5.
- Page 7 7. Initialization (Pitch Twitch, V is lit) During Initialization, VBar goes through a self-test. The helicop- ter must be at rest during this test. When the test is finished, you will see a brief twitching (jump) of the swash plate, VBar Control will show ‚Connect‘.
- Page 8 45 x 25 x 15 mm / 14 g .177 x .098 x .059 in / .5 oz Accessories You will find accessories to be used with VBar on Mikado’s website www.mikado-heli.de Support Forum and extensive online manual at www.vstabi.info Email: service@mikado-heli.de...
