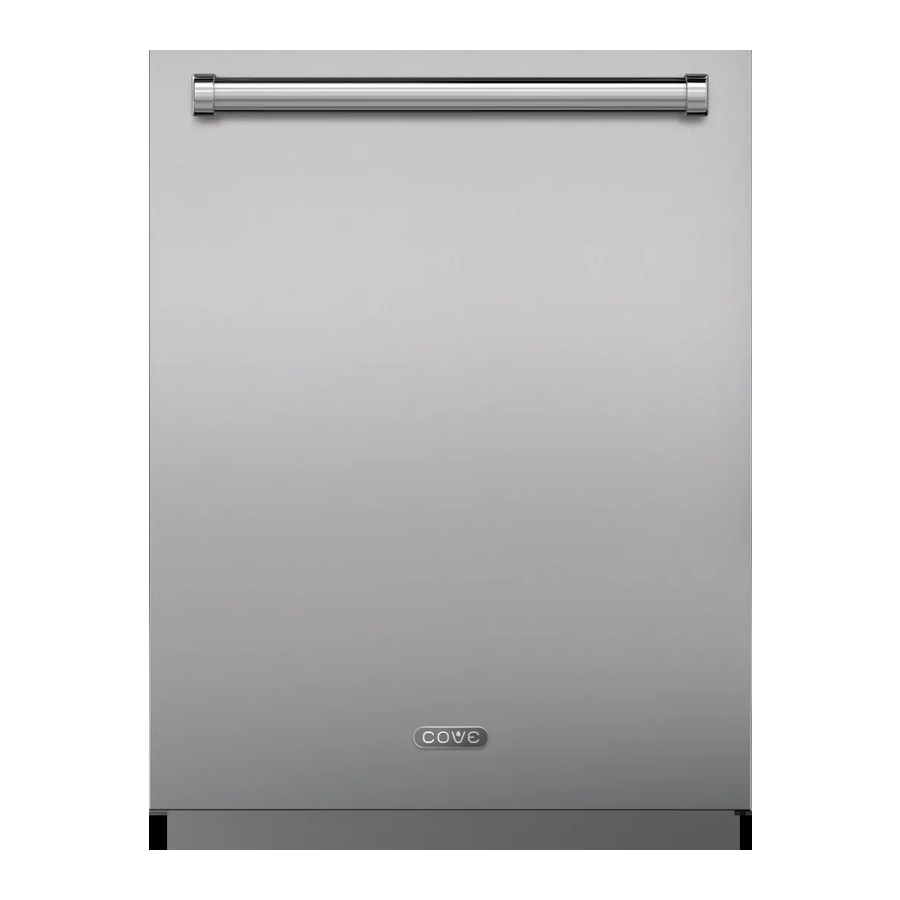

Cove DW2450 Service Manual

Error Codes and Troubleshooting
SERVICE MODE
Service mode allows a technician to review various user
settings/offsets, manually activate and deactivate
components, and monitor the unit's performance including
logged errors. In Service mode:
• Bluetooth pairing PIN messaging, Wi-Fi control via
the Sub-Zero Group Owner's App, error detection
and management, and diverter valve movement are
allowed.
• Pressure-based drain pump control is active.
• Standby Power mode, Smart Grid requests, wash
cycles, or monitoring of any analog I/O are not
allowed.
• When the sump fills, it always fills to the volume of
"Main Wash #1" in the NORMAL wash cycle.
Service mode may be activated from the UIM panel, or via
the RS-485 connection using the Connected Diagnostics
program.
Service mode exits after 5 minutes with no input.
ENTER SERVICE MODE
1 Touch and hold Auto and Heavy for 5 seconds or
more.
2 Release Heavy, and continue to hold Auto for 5
seconds.
"Service Mode:" appears on the UIM.
828019 REV B 08/2023
DW2450 and DW2450WS Service Manual
SERVICE MODE FUNCTIONS
Service mode allows two main functions:
• Use the Cancel key to scroll through the error codes.
• Manually turn on and turn off components and
systems to confirm operation. Pressing a UIM key
turns on the corresponding component or system;
pressing the key again turns it off. Only one
component or system can be turned on at a time.
UIM KEY FUNCTIONS IN SERVICE MODE
UIM KEY CONTROL
Auto Toggles drain pump ON/OFF
(up to 50 secs. max. ON time).
Normal Toggles water inlet valve ON/
OFF.
Heavy Toggles wash pump ON/OFF.
Toggles heater ON/OFF (up to
Quick
70º C).
Sets diverter valve position (at
Cycles+
each key press, diverter valve
changes its position). The door
must be shut for 15-45 seconds
to show a position change on
the UIM.
Toggles drying fan ON/OFF.
Options
Toggles water softener
Enter
regeneration valve ON/OFF (if
applicable).
Cancel
• Toggles through any and all
stored error codes.
• Also, touch and hold to exit
Service mode.
Start Toggles dispenser coil ON/OFF
(300 ms ON, then OFF is the
only action).
77
service.subzero.com 800.222.7820
DISPLAY
MOT4 (Drain pump
motor)
SOL1 (Water inlet
valve)
MOT1 (Wash pump
motor)
HTR1 (Tub heating
element)
MOT2 (Diverter valve
motor), SV =
requested position,
PV = current position
(0 = Home, 1 =
Middle/Upper, 2 = All,
3 = Lower)
MOT3 (Drying fan
motor)
SOL2 (Water
softener regeneration
valve)
Error log table
SOL3 (Dispenser
coil)
