Middle rack tine pair

TOOLS REQUIRED

None

REMOVE THE MIDDLE RACK

1 Open the door.
2 Pull the middle rack forward.
3 Remove the end caps on both rails by pulling the end
cap locking tabs outward, then pulling the end caps
off the rails.
830857 REV. A 03/2022

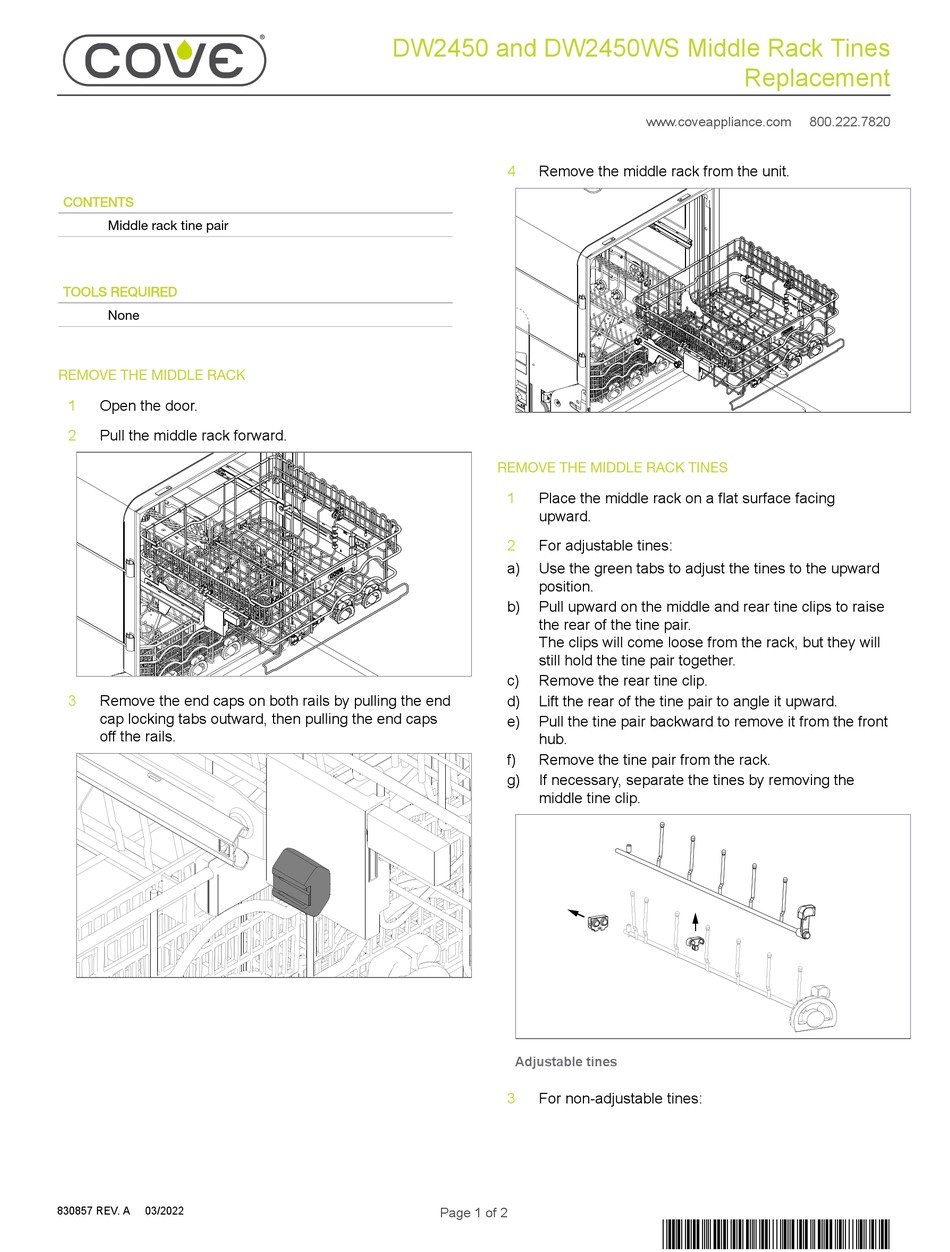

DW2450 and DW2450WS Middle Rack Tines
4 Remove the middle rack from the unit.

REMOVE THE MIDDLE RACK TINES

1 Place the middle rack on a flat surface facing
upward.
2 For adjustable tines:
a) Use the green tabs to adjust the tines to the upward
position.
b) Pull upward on the middle and rear tine clips to raise
the rear of the tine pair.
The clips will come loose from the rack, but they will
still hold the tine pair together.
c) Remove the rear tine clip.
d) Lift the rear of the tine pair to angle it upward.
e) Pull the tine pair backward to remove it from the front
hub.
f) Remove the tine pair from the rack.
g) If necessary, separate the tines by removing the
middle tine clip.
Adjustable tines
3 For non-adjustable tines:
Page 1 of 2
Replacement
www.coveappliance.com 800.222.7820
