Merriott S35 Information For The Installer

Information for the installer
Safety Precaution:
Radiators are hot when in use, and as such,
present a risk of burns to users on prolonged
contact.
The temperature of a radiator is dependent on the
temperature of the system water, as set by the
system installer or end user.
Installers and users should ensure that those who
come in to close proximity to hot radiators are
aware of the risks of burns.
Installers and users should take all necessary
steps to minimise the risk of burns. If the risk
is significant, consideration should be given to
installing low temperature radiators, or to placing
guards in front of radiators.
For the correct installation of radiators it is
essential that the fixing of the radiator is carried
out in such a way that it is suitable for intended
use AND predictable misuse.
A number of elements need to be taken into
consideration including fixing method used
to secure the radiator to the wall, the type
and condition of the wall itself, and any additional
potential forces or weights, prior
to finalising installation.
IN ALL CASES IT IS STRONGLY RECOMMENDED
THAT A SUITABLY QUALIFIED PROFESSIONAL
INSTALLER OR SIMILAR TRADESPERSON
CARRIES OUT THE INSTALLATION.
PLEASE NOTE: The fixing materials provided are
only intended for installation on walls made of
solid wood, bricks, concrete or on timber frame
stud walls where the fixing is in to the timber.
All walls being considered should have no more
than a maximum of 3 mm wall finishing. For walls
made of other materials, for example hollow
bricks, please consult your installer or specialist
supplier. ONCE AGAIN, IF YOU ARE UNSURE, IT IS
STRONGLY RECOMMENDED THAT A SUITABLY
QUALIFIED PROFESSIONAL INSTALLER OR
SIMILAR TRADESPERSON CARRIES OUT THE
INSTALLATION.
Bracket Kit Contents -
Horizontal & Vertical Radiators:
All bracket packs contain:
Air Vent Plug x 1 Blanking Plug x 1
D35 - Vertical/Horizontal
Bracket x 4
S35/S70 - Vertical/Horizontal
Bracket x 4
D70 - Vertical/Horizontal
Bracket x 4
Merriott UK & Ireland
Purmo Group (UK) Ltd,
Eastern Avenue,
Team Valley, Gateshead,
Tyne & Wear, NE11 0PG
Tel: 0330 0415 472
sales@merriottuk.com
sales @merriott.ie
www.merriottuk.com / www.merriott.ie

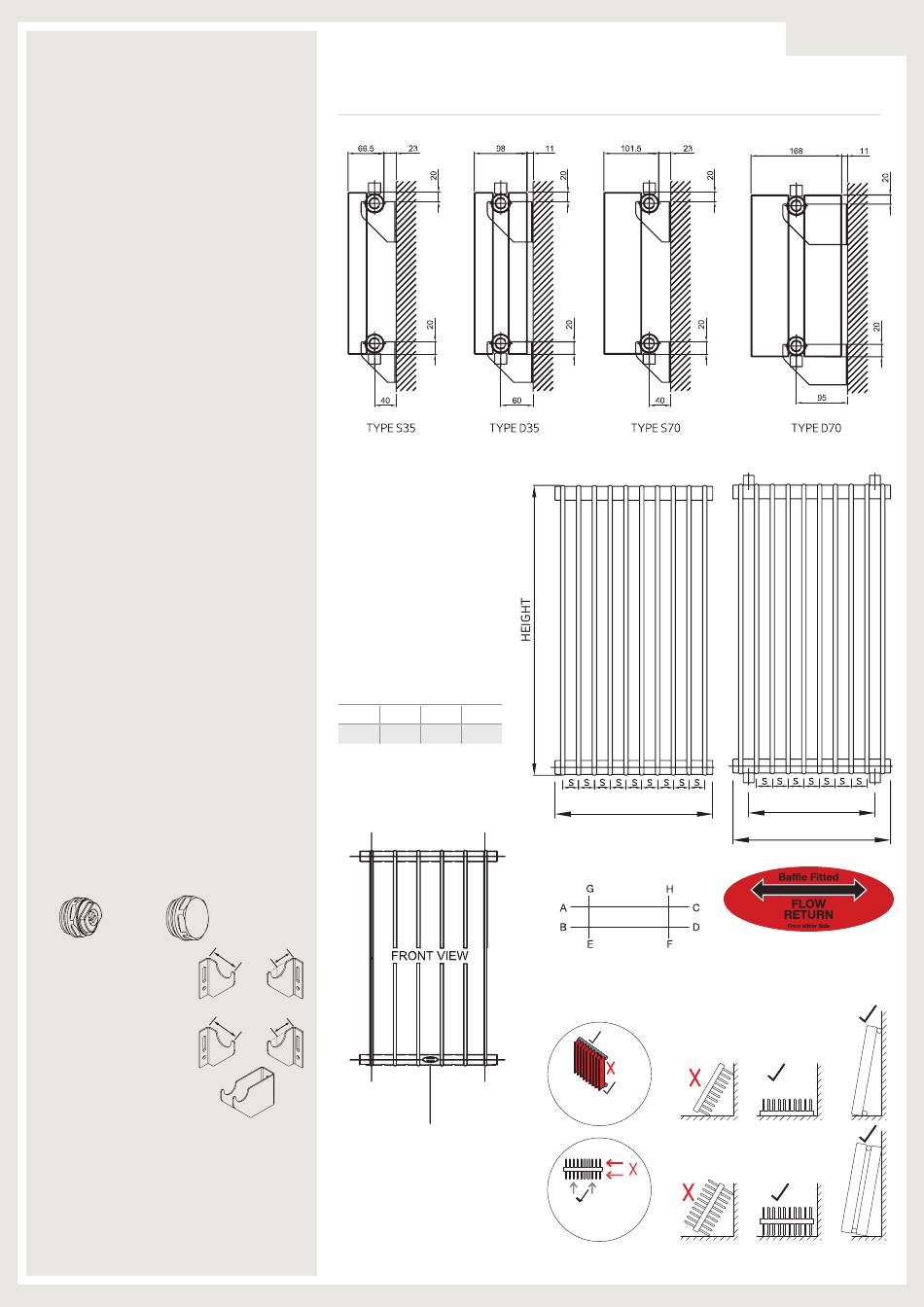

Flat Tube Decorative Radiator
(S35, D35, S70, D70)
HOW TO CALCULATE CENTRE
TO CENTRE DIMENSION
L = N x S
E = (N-2) x S
L = width of radiator
N = number of elements
S = element spacing
E = centre to centre dimension
for EFGH connections.
Model Element spacing (S)
S35 D35
35mm 35mm
BAFFLE POSITION
G
A
D35 bracket
85mm 60mm
D35 bracket D35 bracket
S35 bracket
65mm 40mm
S35 bracket S35 bracket
D35 bracket D35 bracket
B
E
D70 bracket
S35 bracket S35 bracket
D70 bracket D70 bracket
BAFFLE LOCATION
D70 bracket D70 bracket
ABCD CONNECTIONS
S70 D70
40mm 40mm
H
C
CONNECTION LADDER
PLEASE FOLLOW HANDLING GUIDANCE
D
F
WARNING!
Lift By Headers
Only
WARNING!
Do Not Lift With
Sideways Force on
Elements
Purmo Group (UK) Ltd, Eastern Avenue, Team Valley, Gateshead, Tyne & Wear, NE11 0PG; 00121 Helsinki,
DPI 001 022022
EFGH CONNECTIONS
L
WARNING!
E
L
