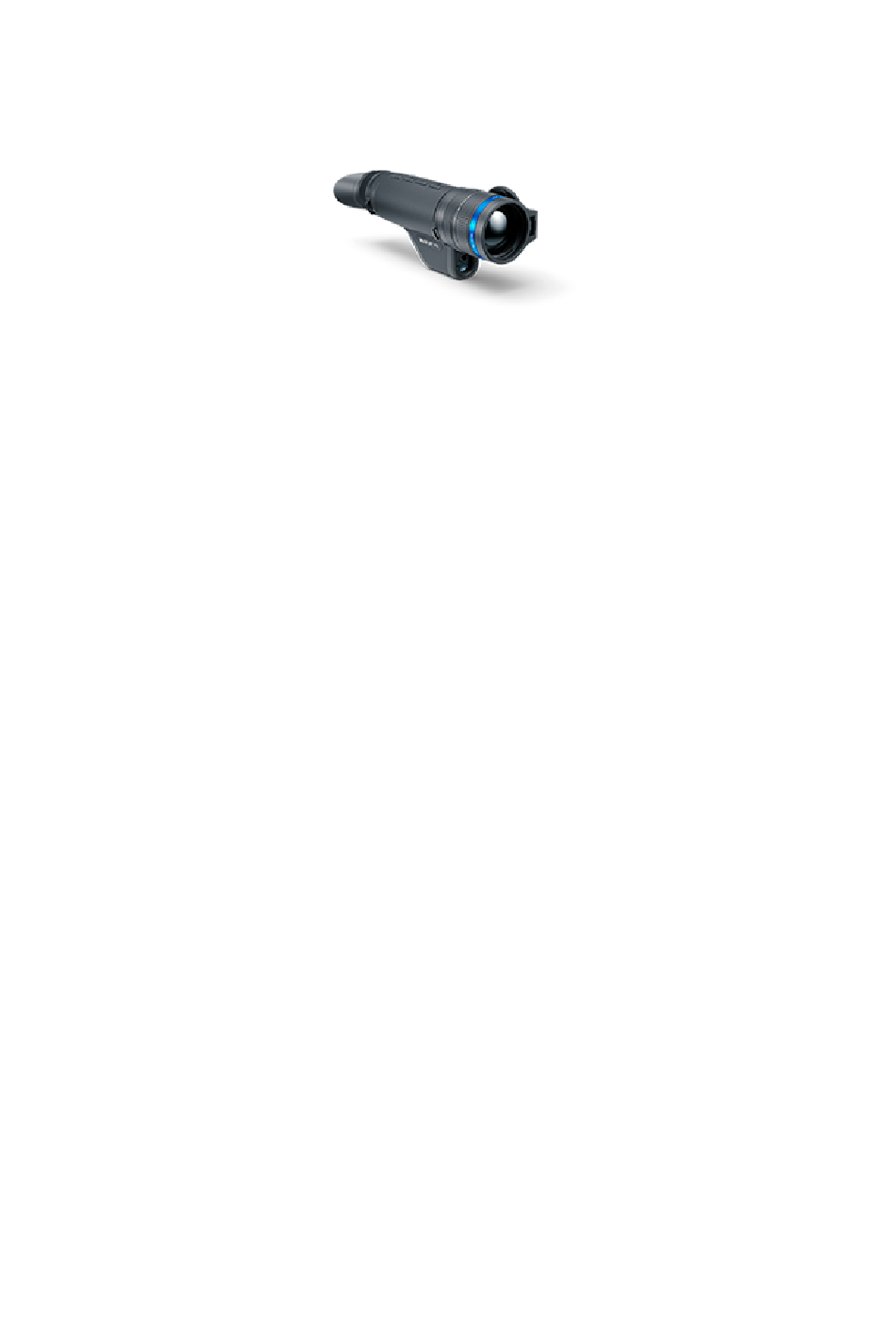

  • Page 1 Telos LRF Manual...

  • Page 2: Table Of Contents

    Content Specifications About the device Description Package Contents Components and Controls Features Power supply Precautions Recommendations for Battery Use Battery Charging Battery Installation External Power Supply Getting Started Powering on and Image Settings Button Operation Interface Status Bar Quick Menu Main Menu Enter the Main Menu Amplification Level...
  • Page 3 Defective Pixel Repair Restore Default Pixel Map Device Information Functions Video Recording and Photography Laser Rangefinder Digital Zoom PiP Function Display-Off Function Wi-Fi Function Installing the Device on a Tripod USB Connection Software Stream Vision 2 Firmware Update Maintenance Technical Inspection Technical Maintenance and Storage Troubleshooting Legal Compliances and Disclaimers...

  • Page 4: Specifications

    Specifications You can learn more about the main parameters here. LRF XP50 Model LRF XP50 77492   Microbolometer Type uncooled Resolution, Pixels 640x480 Pixel Pitch, µm NETD, mK < 18 Frame Rate, Hz   Optical Characteristics Optical Magnification, x Smooth Digital Zoom 2.5-10...
  • Page 5 Eyepiece Focus Range, Dioptre +4 / -5 Detection Distance for Deer- 1800 / 1969 Sized Objects, m/y Display   Type AMOLED Resolution, Pixels 1024x768   Operational Characteristics Power Supply, V 3 - 4.2 Battery Type/Capacity/Nominal LPS7i Li-ion Battery Pack / Output Voltage 6400 mAh / DC 3.7 V External Power Supply...
  • Page 6 Measurement Range, m/y*** 1000/1094 Measurement Accuracy, m * Actual operating time depends on the extent of using Wi-Fi, integrated video recorder and integrated laser rangefinder. ** Reception range may vary depending on various factors: obstacles, other Wi-Fi networks. *** Depends on the characteristics of the object under observation and environmental conditions.

  • Page 8: Description

    Description https://www.youtube.com/embed/nkkHTeKZCDw Telos LRF thermal imaging monoculars are designed for use both at night- time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection.

  • Page 9: Package Contents

    Package Contents Telos LRF thermal imager LPS7i battery pack with protective cover Spare battery compartment cover Power adapter USB Type-C cable with USB Type-A adapter Case Hand strap Quick start guide Lens cloth Warranty card...

  • Page 10: Components And Controls

    Components and Controls...
  • Page 11 1. Lens cover 2. Laser rangefinder 3. Lens focus ring 4. Digital zoom adjustment ring 5. Battery compartment 6. LPS7i battery 7. Battery compartment cover 8. Battery protective cover 9. ON/OFF/Calibration button 10.  UP/REC button 11.  MENU button 12.  DOWN/LRF button 13.
  • Page 12 LED indicator (15) displays the current status of the device: LED Indicator Operating Mode Device is turned on The device is turned on/video recording The device is turned on/battery charge < 10% The device is turned on/video recording/battery charge <...

  • Page 13: Features

    Features Compact and lightweight Functional and ergonomic design 8-colour display palette 3 calibration modes: Manual, Semi-Automatic, Automatic Detection range up to 1800 m/1969 yds Smooth digital zoom 2.5-10x Three levels of sensitivity enhancement: Normal, High, Ultra Integrated laser rangefinder Display-Off function Defective pixel repair Updatable firmware Wide operating temperature range (-25°С...

  • Page 14: Precautions

    Precautions It is not recommended to charge the battery with the USB cable and wireless charger at the same time. This will not increase the charge rate and may damage the battery. Use the USB Type-C cable and power adapter supplied with the device (or purchased separately) to charge the LPS 7i batteries.

  • Page 15: Recommendations For Battery Use

    Recommendations for Battery Use The battery should be partially charged (50 to 80 %) for long-term storage. Charge at an ambient temperature of 0°C to +35°C (32°F to 95°F) or the lifespan of the battery will decrease significantly. Using the battery at sub 0°C (<32°F) ambient temperature decreases battery capacity.

  • Page 16: Battery Charging

    Battery Charging The Telos LRF thermal imager comes with an LPS7i rechargeable Lithium- ion battery. LPS7i batteries support USB Power Delivery fast charging technology when using a standard charging set (USB Type-C cable, power adapter). Before first use, make sure the battery is fully charged. LPS 7i batteries also support wireless charging.
  • Page 17 Image not found or type unknown...
  • Page 18 Install the LPS7i battery in the battery compartment of the device. 2. Connect the USB cable (21) to the USB Type-C connector (17) of the device. 3. Connect the other end of the USB cable (21) to the Power Adapter (22) by removing the USB Type-A adapter.
  • Page 19 Battery charge level is from 76% to 99% Battery is full Option 2.Charging the battery via USB...
  • Page 20 Image not found or type unknown 1. Remove the protective cover(8).
  • Page 21 2. Connect the plug of the USB Type-C cable (21) to the USB Type-C connector (19) of the battery. 3. For fast charging, connect the second end of the USB Type-C cable (21) to the Type-C connector of the power adapter (22) by removing the Type-A adapter from the plug.
  • Page 22 Place the battery (6) with the sign side on the wireless charger* (23). For more efficient wireless charging, align the lightning bolt icon on the battery with the centre of the charger platform (23). 2. Turn on the wireless charger according to its instruction manual. 3.

  • Page 23: Battery Installation

    Battery Installation 1. Install the cover (7) on the LPS7i battery (6). 2. Insert the battery (6) into the battery compartment (5) until you hear a click. The battery contacts must face the top of the device (see diagram).
  • Page 24 3. To remove the battery (6), slide the switch (A) on the cover (7) to the left...

  • Page 25: External Power Supply

    External Power Supply Show device diagram...
  • Page 26 Power can be supplied from an external source such as a 5 V or 9 V power bank. 1. Connect the external power source to the USB Type-C connector (17) on the device. 2. The device will switch to draw power from the external source while the LPS7i battery is gradually recharged.

  • Page 27: Powering On And Image Settings

    Powering on and Image Settings Show device diagram...
  • Page 28 1. Open the lens cover (1). 2. Press the ON/OFF (9) button briefly to turn on the device. 3. Adjust the eyepiece diopter ring (13) until the symbols in the display are sharp. 4. Rotate the lens focus ring (3) to focus on the object being observed. 5.
  • Page 29 11. Upon completion of use turn the device off by a long press of the ON/OFF (9) button. Observation conditions: time of day, weather, type of observation objects affect the image quality. Custom settings for brightness, display contrast as well as the function of adjusting the microbolometer sensitivity amplification level will help to achieve the desired quality in a particular situation.​...

  • Page 30: Button Operation

    Button Operation Operation Button Power device on short press Power device off long press for 3 secs long press for less than 3 Turn display off secs Turn display on short press Calibrate the microbolometer short press Turn on/off the White Hot long press palette Video Recorder...

  • Page 31: Quick Menu

    Navigation short press downwards/leftwards Confirm selection short press Exit submenu without long press confirming selection Exit menu (switch to viewing long press mode) Quick Menu Button Enter quick menu short press Switch between quick menu short press options Increase value short press Decrease value short press...

  • Page 32: Amplification Level

    Status Bar The status bar at the bottom of the display shows current operating statuses via icons, including: Colour Mode: - White hot - Black hot Amplification level Smoothing Filter (displayed when the function is on) Calibration Mode (in Automatic calibration mode a countdown timer  will appear instead of the calibration mode icon 3 seconds before automatic calibration begins).
  • Page 33 Quick Menu Show device diagram...
  • Page 34 The quick menu is used to quickly access the settings for brightness, contrast, and amplification modes. Enter the menu by briefly pressing the MENU (11). A short press of the MENU (11) button enables you to toggle between functions, as described below.
  • Page 35 Image not found or type unknown Brightness  – press the UP (10)/DOWN (12) buttons to change display brightness from 0 to 20. Contrast  – press the UP (10)/DOWN (12) buttons to change image contrast from 0 to 20.
  • Page 36 Note:display brightness and contrast settings are saved in the memory when the device is turned off. Amplification Levels  – allows you to select one of three amplifying levels of sensitivity(Normal , High , Ultra Note: To maintain brightness and contrast settings when changing amplifying levels, activate User Mode.
  • Page 37 Video Recording and Photography Show device diagram...
  • Page 38 Telos LRFthermal imagers are capable of video recording and photography. Videos and images are saved on the built-in memory card. Before using this feature please set the date and time (see General Settings section). For information on how to watch recorded photos and videos, see the Stream Vision 2 user manual: Android, iOS.
  • Page 39 1. Switch to Video mode by pressing and holding the UP/REC (10) button. 2. The icon and the remaining recording time in HH:MM (Hours:Minutes) format are displayed in the upper left corner, for example 4:20. 3. Press the UP/REC (10) button briefly to start video recording. 4.
  • Page 40 1. Switch to the Photomode by pressing and holding the UP/REC (10)  button. 2. Press the UP/REC (10) button briefly to take a photo. The icon    flashes – the photo file is being saved to the built-in SD card. Notes: You can enter and operate the menu during video recording.
  • Page 41 Laser Rangefinder Show device diagram...
  • Page 42 The TelosLRFthermal imager is equipped with an integrated laser rangefinder. Single Measurement Mode 1. Press the ON/OFF (9) button briefly to power the device on. 2. Activate the rangefinder by pressing the DOWN/LRF (12) button briefly. A red mark appears on the display. 3.
  • Page 43 5. The rangefinder shuts down after 3 seconds of inactivity. Scan Mode 1. Press the ON/OFF (9) button briefly to power the device on. 2. Activate the rangefinder by pressing the DOWN/LRF (12) button briefly. A red mark appears on the display. 3.
  • Page 44 5. Deactivate the rangefinder by long pressing the DOWN/LRF (12). Notes: Additional rangefinder settings are available in the Rangefindersection of the main menu. To select a unit of measurement (meters or yards) go to Units of Measure  subsection of the General Settings section.
  • Page 45 Digital Zoom Show device diagram...
  • Page 46 The functionality of the device makes it possible to smoothly increase the base magnification (please refer to the Magnification line in the Specificationstable) of the device using the adjustment ring (4) , as well as return to the base magnification To increase the digital zoom, turn the adjustment ring (4) clockwise. To decrease the digital zoom, turn the adjustment ring (4) counterclockwise.
  • Page 47 PiP Function Show device diagram...
  • Page 48 The PiP (Picture-in-Picture) function allows you to see both the main image and a magnified image in a dedicated window. To turn on and off the PiP function see the PiP Mode section. Rotate the adjustment ring (4) to change the magnification ratio in the  PiP ...
  • Page 49 in the rest of the screen is displayed at base magnification (2.5x). When the PiP is turned on you can control both the discrete and smooth digital zoom. In this case the zoom value changes only take place in the dedicated window.
  • Page 50 Display-Off Function Show device diagram...
  • Page 51 This function darkens the screen, which aids the user’s concealment. However, the device stays on. When this function is in use, the device switches to the standby mode, which allows it to be switched on instantly. 1. When the device is on, press and hold the ON/OFF (9) button. The display will turn off, the current time and the "Display off"icon will appear.
  • Page 52 Wi-Fi Function The device has a function enabling wireless communication with external devices (smartphone or tablet) via Wi-Fi. Turn on the wireless module in the WI-Fi Activation menu option. Wi-Fi is displayed in the status bar as follows: Indication on the status bar Connection Status Wi-Fi is switched off Wi-Fi connection is in progress...
  • Page 53 2. Attach the mounting plate to the tripod. 3. Install the Telos LRF device into the tripod adapter (14) so that the rangefinder lens aligns with the hole on the front of the tripod adapter...
  • Page 54 4. Turn the handle of the tripod adapter (14) to position 5. Level the Telos LRF horizontally and vertically using the tripod mounting plate.
  • Page 55 USB Connection Show device diagram...
  • Page 56   1. Connect one end of the USB cable to the USB Type-C port (17) of your device and the other end to the USB port of your PC / laptop using a USB Type-A adapter. 2. Turn the device on with a short press of the ON/OFF(9) button (a device that has been turned off cannot be detected by your computer).
  • Page 57 3. Your device will be detected by the computer automatically; no drivers need to be installed. 4. Two connection modes will appear on the display: Power and Memory Card(external storage device). 5. Select the connection mode with the UP (10)/DOWN (12) buttons. 6.
  • Page 58 Stream Vision 2 Install the Stream Vision 2 application to download files, update firmware, control the device by remote control and broadcast images from your device to a smartphone or a tablet via WiFi. We recommend using the latest version – Stream Vision 2. You can find further guidelines on Stream Vision 2 here.
  • Page 59 Android...
  • Page 60 Firmware Update 1. Download the free Stream Vision 2 App in Google Play or App Store. 2. Connect your Pulsar device to your mobile device (smartphone or tablet). 3. Launch Stream Vision 2 and go to section “Settings”. 4. Select your Pulsar device and press “Check firmware update”. 5.
  • Page 61 Technical Inspection It is recommended to inspect your device before each use. Check the following: The device should be free of any cracks or deformations. The lenses should be free of cracks, grease, dirt or debris. The battery level of the device should be full. Electrical sockets should be free of salts, oxidation, or other debris.
  • Page 62 Technical Maintenance and Storage Maintenance should be carried out at least twice a year and should include the following steps: Wipe the exterior surfaces of metal and plastic parts with a cotton cloth. Do not use chemically active substances, solvents, etc. as these will damage the paint.
  • Page 63 Troubleshooting For technical support please contact support@pulsar-vision.com. Answers to frequently asked questions about the devices can also be found in the section. The device does not turn on Possible cause The battery is completely discharged. Solution Charge the battery. The device does not operate from an external power source Possible cause The USB cable is damaged.
  • Page 64 The image is blurry, with vertical stripes or an uneven background Possible cause Calibration is required. Solution Perform image calibration according to the Calibration Mode section of the manual. Black screen after calibration Solution If the image does not clear after calibration, you need to recalibrate. Poor quality image.
  • Page 65 Adjust the brightness or contrast level in the Quick Menu. Colour bars appear on the display or the image disappears Possible cause The device was exposed to static charges during operation. Solution When the exposure to static charges is over, the device may either reboot automatically or require to be switched off and on again.
  • Page 66 Possible cause In warm climates, objects in the background of a thermal image heat up differently because of thermal conductivity, generating a high temperature contrast and a sharper thermal image. In cold climates, objects in the background of a thermal image will cool down to roughly the same temperature, which leads to a greatly reduced temperature contrast and a degraded image quality.
  • Page 67 The device has a 5 GHz network enabled, but the smartphone only supports 2.4 GHz. Solution Switch the device's Wi-Fi bandwidth to 2.4 GHz.   More information on solving problems with connection to Stream Vision 2 by following the link. Wi-Fi signal is missing or interrupted Possible cause Smartphone or tablet is out of range of a strong Wi-Fi signal.
  • Page 68   Possible cause The device is not being held steadily when measuring. Solution Keep the device steady when measuring.   Possible cause Distance to the object exceeds 1000 m. Solution Pick an object at a distance not longer than 1000m.  ...
  • Page 69 Legal Compliances and Disclaimers Attention! A license is required for Telos Thermal Imager when exporting outside your country. Electromagnetic compatibility.This product complies with the requirements of European standard EN 55032: 2015, Class A. Warning!Operation of this equipment in a residential environment could cause radio interference.
  • Page 70 The manufacturer reserves the right at any time, without mandatory notice, to make changes to the package contents, design and characteristics that do not impair the quality of the product. Repair of the device is possible within 5 years.
