PR electronics 4500 Series Product Manual

Bluetooth communication enabler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

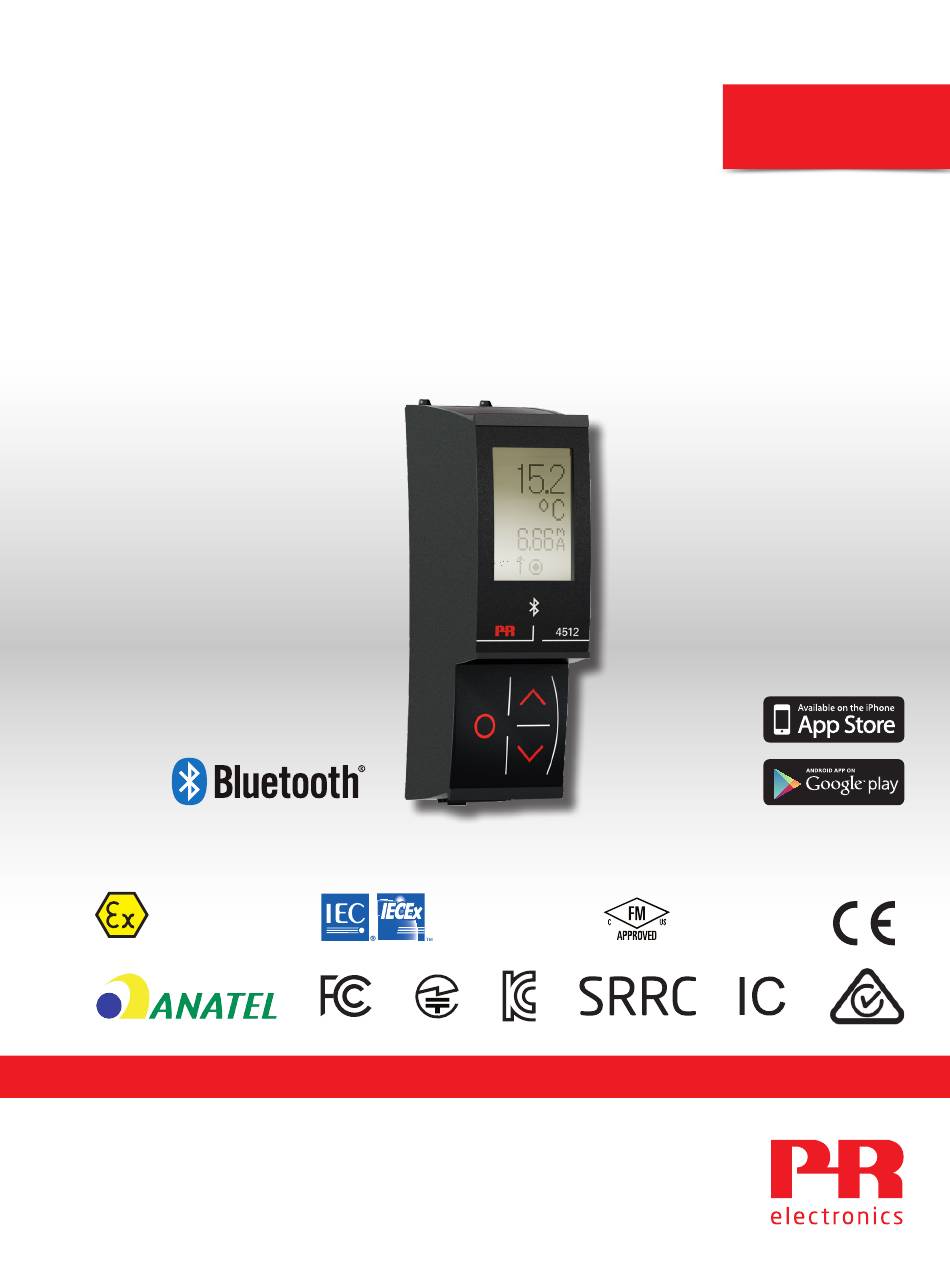

Product Manual
4512
Bluetooth communication enabler
ZONE 2
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 4512V101- UK
From serial no. : 201556 0 01
Zone 2
|
CO M M U N I C AT I O N I N T E R FA C E S
ZONE 2 / DIV 2
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 4500 Series

Summary of Contents for PR electronics 4500 Series

  • Page 1 PERFORMANCE MADE SMARTER Product Manual 4512 Bluetooth communication enabler ZONE 2 Zone 2 ZONE 2 / DIV 2 T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S M U LT I F U N C T I O N A L I S O L AT I O N...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    Bluetooth communication enabler 4512 Contents Warning ....................Symbol identification .

  • Page 4: Warning

    Only devices which are undamaged and free of moist and dust may be installed. The device may be installed on and supplied by PR electronics 4000 and 9000 series only.
  • Page 5 When disconnected, the device may be cleaned with a cloth moistened with distilled water. Warranty PR electronics A/S offers a 5-year warranty on this product. Liability To the extent the instructions in this manual are not strictly observed, the customer cannot advance a demand against PR electronics A/S that would otherwise exist according to the concluded sales agreement.

  • Page 6: Applications

    Bluetooth communication enabler 4512 • Bluetooth communication between the PR 4000/9000 devices and iOS/Android devices • Live monitoring of process values and diagnostics on compatible smart devices or directly on the PR 4512 • Advanced data logging and event logging using the built-in real-time clock Applications •...

  • Page 7: Mounting On A 4000 / 9000 Device

    Mounting on a 4000 / 9000 device PR 4512 is a detachable display that can be mounted on all system 4000/9000 fronts for programming and signal monitoring. PR 4512 contains a dot matrix LCD display Line 1 can e.g. show the scaled process value. Line 2 can e.g.

  • Page 8: Order

    Order Type Description 4512 Bluetooth communication enabler 4590 ConfigMate interface Electrical specifications Environmental conditions: Operating temperature ....... . -20°C to +60°C Storage temperature .
  • Page 9 Bluetooth: Europe, CE ........117-37823-1 US, FCC.

  • Page 10: 4512 - Configuration / Operating The Function Keys

    4512 - configuration / operating the function keys Documentation for routing diagram. In general When using the PR 4512 for configuration of a PR 4000 or PR 9000 device, you will be guided through all parameters and can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display.
  • Page 11 Error Scenarios and help texts Conditions Scrolling help text Solution 4512 has been without Connect a smart device to the 4512 and synchronize. power until the battery is synchronization The error message will disappear when the synchronization is OK. fully discharged. required.

  • Page 12: 4512 Settings - Routing Diagram

    *3) Menu is shown only if Bluetooth is enabled. *2): Menu is shown only if log is started and no log is present in the device (ORIEN) |--> ROT.DEV ---OK--> "Monitor" *3): Menu is shown only if Bluetooth is enabled PR electronics A/S 4512+Local+Menu.xlsx 4512V101-UK...

  • Page 13: Pr Process Supervisor - Pps App

    If you have already downloaded the PR electronics PPS app from either the Apple App store (IOS) or Google Play (Android), check for updates that will add the Bluetooth communication options. If you will be downloading the PR electronics PPS app for the first time, follow the instructions for IOS below. The Android download process will be similar.

  • Page 14: Connection And Configuration

    Connection and configuration 1. Start the PPS app and choose Bluetooth. Remember to activate Bluetooth communication on the smart device. 2. Perform “Scan” and discover products in the Bluetooth range with PR 4512 installed. 3. In order to identify a specific product in the app, each product may be configured with an individual TAG number. If needed, perform “filter items”...

  • Page 15: Pairing Options

    Pairing options a) Two-factor authentication - BT.2FA (disabled as default): The display on the corresponding PR 4512 device will flash. Confirm that the right device has been selected by pushing the 3 button on the 4512. Note: When password is enabled on PR 4512, the PPS will prompt the user to type in password when pairing. b) Fast pairing: Deactivate two factor authentification through the PR 4512 menu (see page 10).

  • Page 16: Analysis Of Logged Data, Event Logging And Export

    Select the data logging interval. Valid selections are 1...9999 sec. Use the down-arrow to change ‘NO’ to ‘YES’ and enable logging. Click Send. Analysis of logged data, event logging and export Select the period and interval to transfer to the smart device and click the “Get log” button. Note: Export intervals must be a multiple of the logged interval.

  • Page 17: Preset Software

    The event log indicates the error code, date and time of each event and when it was cleared. If the logged data needs to be transferred to a PC, click the “Export as CSV” button. The export will generate a dataset with two different file formats, a CSV file with the extension *.CSV for generic use and a file with the extension *.PRESET for easy import to PR PReset.
  • Page 18 In PReset, click on the “Receive” icon. Select the tab “Data Logging” Click “Get Log”. In the following window, select the “start time”, “end time” and “interval”. Note: Time estimate [s] is automatically calculated and indicates the data transfer time to PReset. Note: Export intervals must be a multiple of the logged interval.

  • Page 19: Data Logging

    Click the box next to each log (e.g. Display Value) to view logged data as a graph. By clicking the box next to “Export as CSV”, all logged data will be exported as a .csv file. Data logging The below example shows the graph for display value. Other options are Relative PV, Output Value and Primary Raw Values.

  • Page 20: Import Of Saved Device Configuration

    Import of saved device configuration Click on the “Receive” icon. Select the tab “Configuration”. 4512V101-UK...

  • Page 21: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 2002 Initial release of the product. 2103 Menu structure updated. SIL & Bluetooth functionality updated. 4512V101-UK...
  • Page 22 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year with a global reach. This means that we are always nearby warranty. With each product you purchase, you receive and know your local markets well.
  • Page 23 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
