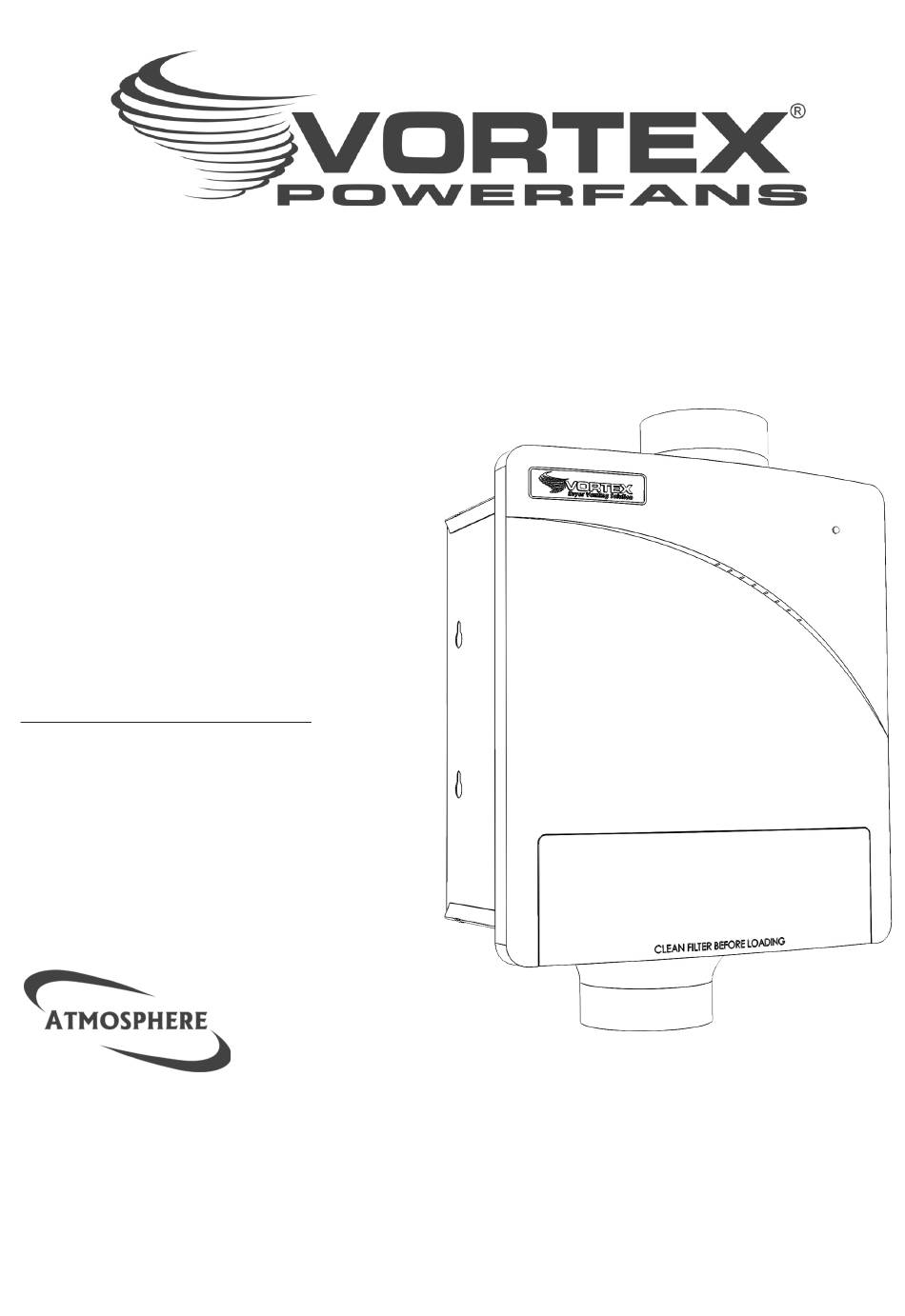

- Page 1 DBF-DEDPV — INSTALLATION GUIDE Dryer booster fan with integral control and integrated lint trap. I M P ORTA N T S AF E T Y I NS TRU C T I O N S SAVE THESE INSTRUCTIONS...
- Page 2 R EA D A N D S AV E T H E S E I N S TRU C T I O N S WARNING — TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING : A - Your dryer installation incorporates a dryer exhaust power ventilator (DEDPV) incorporating a lint trap.
- Page 3 DBF-DEDPV The DBF-DEDPV incorporate a booster fan, a lint trap and an integrated indicator panel. Roof exhaust Mounting — DBF-DEDPV The DBF-DEDPV is designed to be installed at a minimum distance of 4 linear feet (1.21 meter) from clothes dryer exhaust outlet.
- Page 4 A - Install the electrical connector to the outlet. Do not use screw to attach the duct to housing. the DBF-DEDPV duct adapter, use aluminum B - Bring a 2/14 AWG wire from a dedicated tape to seal the connections.
- Page 5 STEP 8 Before inserting the fan, connect the B - Push the top fan unit towards the housing. DBF-DEDPV male connector to the junction C - Tilt the fan unit as shown on the above. box female connector. D - Slide the fan unit towards the top.
- Page 6 — Fix the fan unit — Lint tray insertion STEP 9 STEP 10 Once the holes of the fan unit are aligned with Insert the lint tray in the fan unit. the holes of the housing, put and hand tight- en the metal screws.
-
Page 7: Operation
• From the electrical panel, turn on the power to the DBF-DEDPV. NOTE — Within 10 seconds of the DBF-DEDPV being powered on, it will come on and run for up to 20 seconds. This calibration period will only happen when the DBF-DEDPV is powered for the first time. -
Page 8: Recommended Maintenance
PRESSURE FAULT MODE (Flashing orange indicator light) If at any time during the calibration or operating cycle of the DBF-DEDPV and the clothes dryer there is excessive positive pressure of +0.16” W.C. sensed for more than four minutes, the notifi- cation panel will show a flashing orange indicator light. -
Page 9: Wiring Diagram
WIRING DIAGRAM Ⓒ 2022 ATMOSPHERE INC. Page : 9 REV R-1122... -
Page 10: Warranty
WARRANTY Ten (10) Year Warranty This warranty supersedes all prior warranties DURING ENTIRE WARRANTY PERIOD — Atmosphere will repair or replace any part which has a factory defect in workmanship or material. Product will need to be returned to the Atmosphere factory, together with a copy of the purchase invoice and identified with RMA number. -
Page 11: Warranty Invalidation
WARRANTY INVALIDATION The user must keep a copy of the purchase invoice to verify purchase date. This warranty gives you specific legal right and is subject to an applicable consumer protection legislation. You may have additional rights which vary from state to state. LIMITATION OF WARRANTY AND LIABILITY This warranty does not apply to any Atmosphere product or part which has failed as a result of misinstallation or abuse, incorrect electrical connections or alterations made by others, or use...
