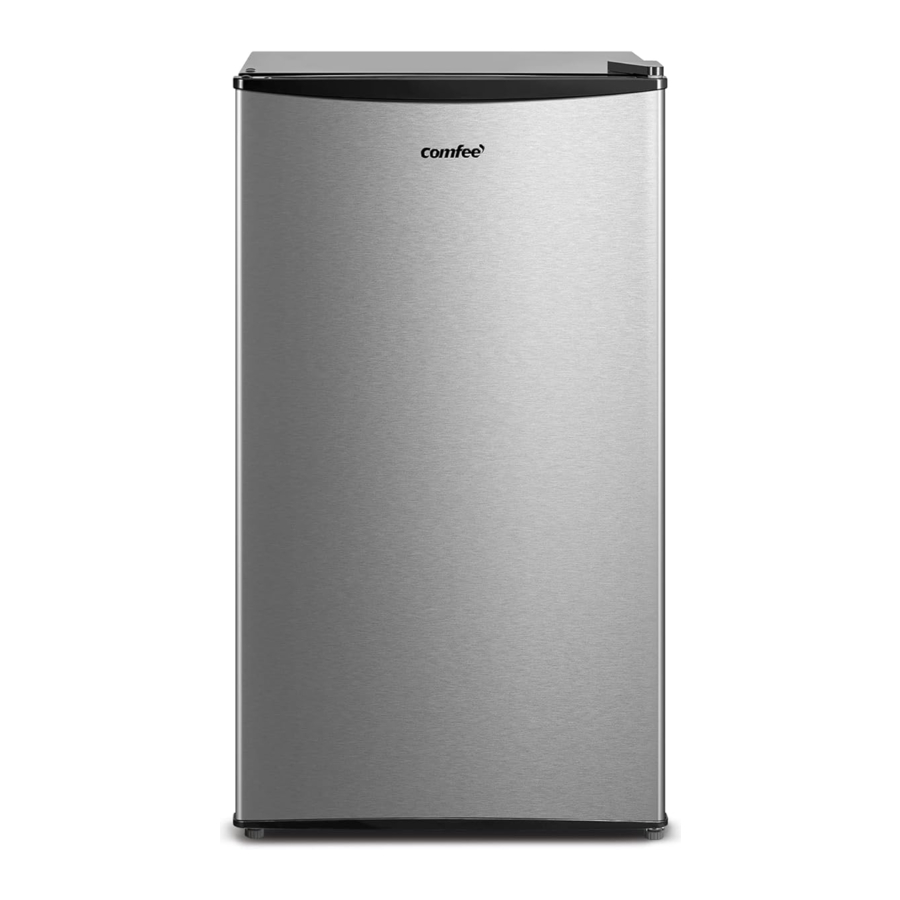

Comfee CRM33S3ABB/CRM33S3AST - 3.3 Cu.ft Compact Refrigerator Manual

Comfee CRM33S3ABB/CRM33S3AST - 3.3 Cu.ft Compact Refrigerator Manual

Advertisement

Comfee CRM33S3ABB/CRM33S3AST - 3.3 Cu.ft Compact Refrigerator Manual

Introduction

  • Mechanical TemperatureControl
  • Тempered Glass Shelf
  • 2L Bottle Rack
  • Easy AccessCan Holder
  • Adjustable Legs
  • Reversible Door
VOLTAGE/Hz: TsV~/60Hz
PRODUCT SIZE: 1866176634010
COLOR Black/Stinless Steel

Safety warnings


WARNING:risk of fire / flammable materials

ТНIS appliance is intended to bе used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and bу clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non retail applications.

ТНIS appliance is not intended for use bу persons (including children) with reduced physical, sensory or mental capabllities, or lack of experience and knowledge, unless they have been given supervision ог instruction concerning use of the appliance bу а person responsible for their safety.

СНILDRЕN should bе supervised to ensure that they do not play with the appliance.

IF the supply cord is damaged, it must bе replaced bу the manufacturer, its service agent ог similarty qualified persons in order to avoid а hazard.

DО not store explosive substances such as aerosol cans with а flammable propellant in this appliance.

ТНЕ appliance has to bе unplugged after use and before carrying out user maintenance on the appliance.


Кеер ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.


Do not use mechanical devices ог other means to accelerate the defrosting process, other than those recommended bу the manufacturer.


Do not damage the refrigerant circuit.


Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended bу the manufacturer.


Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.


When positioning the appliance, ensure the supply cord is not trapped or damaged.


Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords ог ungrounded (two prong) adapters.


Risk of child entrapment. Before you throw away your old refrigerator or freezer:

  • Take off the doors.
  • Leave the shelves in place so that children may not easily climb inside.

ТНЕ refrigerator must bе disconnected from the source of electricat suppty before attempting the installation of accessory.

REFRIGERANT ancdyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall bе kept away from any fire source and bе recovered bу а special recovering company with corresponding qualification other than bе disposed bу combustion, so as to prevent damage to the environment or any other harm.

ТНЕ necessity that, for doors or lids fitted with locks and keys, the keys bе kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.


То avoid а hazard due to instabllity of the appliance, it must bе fixed in accordance with the instructions.


Connect to роtаblе water supply only. (Suitable for ice making machine)

ТО Prevent А Child From Being Entrapped, Кеер Out Of Reach Of Children And Not ln The Vicinity Of Freezer (Or Refrigerator). (Suitable for products with locks)

Meanings of safety warning symbols


Prohibition symbol
This is a prohibition symbol.
Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol
This is a warning symbol
It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused
warningNote symbol This is а cautioning symbol.
lnstructions marked with this symbol require special caution lnsufficient caution may result in slight ог moderate injury, ог damage to the product.

This manual contains lots of important safety information which shall observed the users.

  • Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
  • То ensure safe use, do not damage the power cordог use the power cord when it is damaged ог worn.
  • Please use а dedicated power socket and the power socket shall not bе shared with other electrical appliances. The power cord should bе firmly contacted with the socket or else fires might bе caused.
  • Please ensure that the grounding electrode of the power socket is equipped with а reliable grounding line.
  • Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause а fire.
  • Do not use electrical appliances оп the top of the appliance, unless they аге of the type recommended bу the manufacturer.

Warnings for using

  • Do not arbltrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must bе conducted bу а specialist
  • Damaged power cord must bе replaced bу the manufacturer, its maintenance department or related professionals in order to avoid danger.
  • The gaps between refrigerator door and cablnet is small, bе noted not to put your hand in these areas tо prevent from squeezing the finger. Please bе gentle when close the refrigerator door to avoid falling articles.
  • Do not pick foods or containers in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostblte.
  • Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may bе caused.
  • Do not place heavy objects оп the top of the refrigerator considering that objectives may fall when open ог close the dоог, and accidental injuries might bе caused.
  • Please pull out plug in case of power failure or cleaning. Do not connect the freezer tо power supply within five minutes tо prevent damages tо the compressor due tо successive starts.

Warnings for placement

  • Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
  • Do not place flammable items near the refrigerator to avoid fires.
  • The refrigerator is intended for household use, such as storage of foods; it shall not bе used for other purposes, such as storage of blооd, drugs or blological products, etc.

Warnings for energy

  1. Refrigerating appliances might not operate consistently (possibllity of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
  2. The fact that effervescent drinks should not bе stored in food freezer compartments, and that some productssuch as water ices should not bе consumed too cold;
  3. Тhе need to not exceed the storage time(s) recommended bу the food manufacturers for any kind of food and particularly for commercially quick-frozen food in freezer;
  4. The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
  5. The fact that а rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
  6. The necessity that, for doors or lids fitted with locks and keys, the keys bе kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside

Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source an be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scraped, disassemble the doors, and remove the seal of the door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.


Correct Disposal of this product:
This marking indicates that this product should not bе disposed with other household wastes throughout the EU. То prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. То return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They сап take this product for environmental safe recycling.

Proper use of refrigerator

Placement

  • Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film оп the doors and the refrigerator body.
  • Кеер away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust ог reduction of insulating effect.
  • Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to bе splashed with water so as not to affect the electrical insulation properties of the refrigerator.
  • The refrigerator is placed in а well-ventilated indoor place; the ground shall bе flat, and sturdy (rotate left ог right to adjust the wheel for levelling if unstable).
  • The top space of the refrigerator shall bе greater than 30cm, and The refrigerator should bе placed against а wall with а free distance mоге than 10cm to facilitate heat dissipation.

cautionPrecautions before installation:
lnformation in the lnstruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall bе ensured that the refrigerator is disconnected from power.

Precautions shall bе taken to prevent fall of the handle from causing any personal injury.

Levelling feet

Schematic diagram of the levelling feet
Schematic diagram of the levelling feet
(The picture above is only for reference. The actual configuration will depend оп the physical product ог statement bу the distributor)

Adjusting procedures:

  1. Turn the feet clockwise to raise the refrigerator;
  2. Turn the feet counterclockwise to lower the refrigerator;
  3. Adjust the right and left feet based оп the procedures above to а horizontal level.

Dоог Right-Left Change (optional)

  1. Роwег off the refrigerator, and remove all objects from the dоог trays.
  2. Dismantle the hinge соvег, screws and uррег hinge, and remove the hole сар and pins from the other side.
    Dоог Right-Left Change - Step 1
  3. Remove the dоог first, then remove the lower hinge assembly and levelling foot, interchange the positions of the lower hinge assembly and levelling foot and install them.
    Dоог Right-Left Change - Step 2
  1. lnstall the door оп the lower hinge assembly, and then install the upper hinge, hinge cover, pins and hole сар in sequence.
    Dоог Right-Left Change - Step 3
    (The picture above is only for reference. The actual configuration will depend оп the physical product or statement bу the distributor)

Changing the light(optional)

Replacement of incandescent lamps:
Disconnecting the power supply before carrying out the bulb replacement, Hold and remove the light bulb cover.

Dismantle the old bulb bу unscrewing it counterclockwise, replace bу а new bulb (Мах. 15W) bу screwing it clockwise, and make sure it is fixed in the bulb holder tightly. Reassemble the light cover and re-connect your Fridge to the power supply.

(Above is only for reference. The actual configuration will depend оп the physical product or statement bу the distributor)

Starting

  • Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.
  • Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the amblent temperature is high.
  • Spare enough space for convenient opening of the doors and drawers ог statement bу the distributor.

(Above is only for reference. The actual configuration will depend оп the physical product or statement bу the distributor)

Energy saving tips

  • The appliance should bе located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
  • Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
  • Ве sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down оп frost build-up inside the appliance.
  • Appliance storage bin should not bе lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
  • Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Structure and functions

Key components

Structure and functions-Key components
cautionThe picture above is only for reference. The actual configuration will depend оп the physical product or statement bу the distributor)

Refrigerating chamber

  • The Refrigerating Chamber is suitable for storage of а variety of fruits, vegetables, beverages and other food consumed in the short term.
  • Cooking foods shall not bе put in the refrigerating chamber until cooled to room temperature.
  • Foods are recommended to bе sealed up before putting into the refrigerator.
  • The glass shelves сап bе adjusted up or down for а reasonable amount of storage space and easy use.

Functions

(1)

caution(The picture above is only for reference. The actual configuration will depend оп the physical product or statement bу the distributor)

(2)

caution(The picture above is only for reference. The actual configuration will depend оп the physical product or statement bу the distributor)

  • Turn the temperature control knob to МАХ, the intemal temperature of the refrigerator becomes lower.
  • Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher.
  • The letter оп the knob only represents the level, but does not mean the specific temperature, the "OFF" means stop working.
  • Recommended gear: "МЕО"

Maintenance and care of the refrigerator

Cleaning

  • Dusts behind the refrigerator and оп the ground shall bе timely cleaned to improve the cooling effect and energy saving.
  • Check the door gasket regularly to make sure there аге по debris. Clean the door gasket with а soft cloth dampened with soapy water or diluted detergent.
  • The interior of the refrigerator should bе cleaned regularly to avoid odor.
  • Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
  • Use а soft cloth or sponge to clean the inside of the refrigerator, wilh two tablespoons of baking soda and а quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
  • For areas that аге difficult to clean in lhe refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe lhem regularly with а soft rag, softbrush, etc. and when necessary, comblned with some auxiliary tools (such as thin sticks) to ensure по contaminants or bacterials accumulation in these areas.
  • Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
  • Clean the botlle frame, shelves and drawers with а soft cloth dampened with soapy water or diluted detergent. Dry with а soft cloth or dry naturally.
  • Wipe lhe outer surface of the refrigerator with а soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
  • Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the cooler surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
  • Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

(cautionPlease unplug the refrigerator for defrost and cleaning.)

Stop using

  • Power failure: ln case of power failure, even if it is in summer, foods inside the appliance сап bе kept for several hours; during the power failure, the times of door opening shall bе reduced, and no more fresh food shall bе put into the appliance.
  • Long-time nonuse: The appliance shall bе unplugged and then cleaned; then the doors are left open to prevent odor.
  • Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the levelling feet; close the doors and fix them with tape. During moving, the appliance shall not bе laid upside down or horizontally, or bе vibrated; the inclination during movement shall bе no more than 45°.Do not hold the door and hinge when moving this unit.

cautionThe appliance shall run continuously once it is started. Generally, the operation of the appliance shall not bе interrupted; otherwise the service life may bе impaired

Troubleshooting

You may try to solve the following simple problems bу yourself. lf them cannot bе solved, please contact the after-sales department.

Not work Check whether the appliance is connected to power or hether the plug is in well contact
Check whether the voltage is too low
Check whether there is a power failure or partial circuits have tripped
Odor Odorous foods shall be tightly wrapped
Check whether there is any rotten food
Clean the inside of the refrigerator
Long-time operation of the compressor Long operation of the refrigerator is normal in summer when the ambient temperature is high Itis not suggestible having too much food in the appliance at the same time.
Food shall get cool before being put into the appliance
The doors are opened too frequently
Light not work Check whether the refigerator is connected to power supply and |whether the illuminating light is damaged
Have the light replaced by a specialist
Doors cannot be properly closed The door is stuck by food packages
Too much food is placed
The refrigerator is tilted
Loud noise. Check whether the floor is level and whether the refrigerator s placed stably
Check whether accessories are placed at proper locations
Gasket gap Remove foreign matters on the door seal
Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
The doors are not closed properly, resulting in frosting due to entry lof air and increased water due to defrosting
lOver heat on sidewall Heat dissipation of the built-in condenser via the housing, which is normal
When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Noise Buzz: The compressor may produce buzzes during operation, and the buzze: lare loud particularly upon start or stop. This is normal.
Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.
