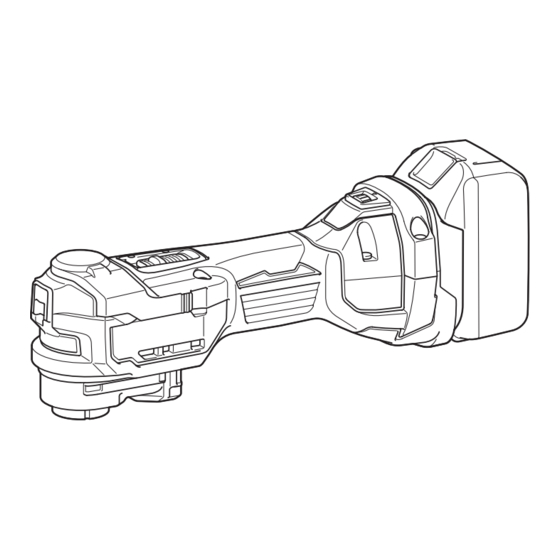

INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES Cordless Multi Tool Multitool Inalámbrica XMT04 IMPORTANT: Read Before Using. IMPORTANTE: Lea antes de usar.
ENGLISH (Original instructions) SPECIFICATIONS Model: XMT04 Oscillation per minute 10,000 - 20,000 /min Oscillation angle, left/right 1.8° (3.6° total) 305 mm (12″) Overall length with BL1820B 322 mm (12-5/8″) with BL1860B Net weight 1.7 - 2.0 kg (3.7 - 4.4 lbs) Rated voltage D.C.
Page 3
If operating a power tool in a damp location is Disconnect the plug from the power source unavoidable, use a ground fault circuit inter- and/or remove the battery pack, if detachable, rupter (GFCI) protected supply. Use of a GFCI from the power tool before making any adjust- reduces the risk of electric shock.
Page 4
Follow all charging instructions and do not 15. Ventilate your work area adequately when you charge the battery pack or tool outside the perform sanding operations. temperature range specified in the instruc- 16. Use of this tool to sand some products, paints tions.
Page 5
Do not short the battery cartridge: causing fires, personal injury and damage. It will Do not touch the terminals with any con- also void the Makita warranty for the Makita tool and ductive material. charger. Avoid storing battery cartridge in a con-...
Overload alert function FUNCTIONAL DESCRIPTION The overload alert function may work if the current rises sharply due to the operation such as applying too much CAUTION: Always be sure that the tool is pressure onto a workpiece. switched off and the battery cartridge is removed The overload alert function decline the speed of the oscil- before adjusting or checking function on the tool.
Page 7
Adjusting the orbital stroke rate Electronic function The tool is equipped with the electronic functions for easy operation. Constant speed control The speed control function provides the constant orbital stroke rate regardless of load conditions. Soft start feature Soft start feature reduces starting reaction. Accidental re-start preventive function ►...
Page 8
Open the lock lever fully until it sounds a click. CAUTION: Always install the battery cartridge Remove the holder bolt. fully until the red indicator cannot be seen. If not, When the lock lever is fully opened, the position of the it may accidentally fall out of the tool, causing injury to lock lever is maintained even if you release your hand.
Return the lock lever to its original position. If you operate the tool with forcing or NOTICE: Always make sure that the application tool is securely held in place. excessive pressure, the overload alert may work and then the amplitude of vibration increase. In this case, once isolate the application tool from the workpiece, then the speed of the oscillation goes back.
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. ► 1. Dust attachment 2. Latch 3. Notch Install the sanding pad and the holder bolt.
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
ESPAÑOL (Instrucciones originales) ESPECIFICACIONES Modelo: XMT04 Oscilaciones por minuto 10 000 cpm - 20 000 cpm Ángulo de oscilación, izquierda/derecha 1,8° (3,6° total) 305 mm (12″) Longitud total con el modelo BL1820B 322 mm (12-5/8″) con el modelo BL1860B Peso neto 1,7 kg - 2,0 kg (3,7 lbs - 4,4 lbs) Tensión nominal...
Page 13
Evite tocar con el cuerpo superficies conectadas Use una vestimenta apropiada. No use ropa a tierra o puestas a tierra tales como tubos, radia- suelta ni alhajas. Mantenga el cabello, la ropa dores, cocinas y refrigeradores. Si su cuerpo es y los guantes alejados de las piezas móviles.
Page 14
Utilice la herramienta eléctrica, los accesorios y Siga las instrucciones para la lubricación y las brocas de acuerdo con estas instrucciones, cambio de accesorios. No modifique ni intente reparar el aparato ni el considerando las condiciones laborales y el trabajo a realizar. Si utiliza la herramienta eléctrica paquete de baterías salvo como se indique en para realizar operaciones distintas de las indicadas, las instrucciones para el uso y cuidado.
Page 15
16. El uso de esta herramienta para lijar algunos ADVERTENCIA: NO DEJE que la comodidad productos, pinturas y madera podría exponer al o familiaridad con el producto (a base de utilizarlo usuario a polvo que contenga sustancias peligro- repetidamente) sustituya la estricta observancia sas.
Makita. El uso de baterías no origina- les de Makita, o de baterías alteradas, puede ocasio- nar que las baterías exploten causando un incendio, lesiones personales y daños. Asimismo, esto inva- lidará la garantía de Makita para la herramienta y el cargador Makita. 16 ESPAÑOL...
Page 17
Protección contra Luces indicadoras Capacidad restante sobrecalentamiento Cuando la herramienta/batería se sobrecaliente, la Iluminadas Apagadas Parpadeando herramienta se detendrá automáticamente. En este 75% a 100% caso, permita que la herramienta/batería se enfríe antes de volver a encender la herramienta. 50% a 75% Protección en caso de 25% a 50% sobredescarga...
Ajuste de la tasa de ciclo orbital Funcionamiento electrónico La herramienta está equipada con funciones electróni- cas para facilitar la operación. Control de velocidad constante La función de control de velocidad permite una tasa de ciclo orbital constante, independientemente de las condiciones de carga.
Page 19
Abra la palanca de bloqueo por completo, hasta PRECAUCIÓN: que suene un clic. Extraiga el perno sujetador. Introduzca siempre com- pletamente el cartucho de batería hasta que Cuando la palanca de bloqueo esté completamente el indicador rojo no pueda verse. Si no, podría abierta, la posición de la palanca de bloqueo se man- accidentalmente salirse de la herramienta y caer al tiene incluso si suelta la mano.
Regrese la palanca de bloqueo a su posición OPERACIÓN original. Asegúrese siempre de que la pieza de aplicación esté firmemente sostenida en su sitio. ADVERTENCIA: Antes de arrancar la herra- mienta, así como durante la operación, mantenga sus manos y rostro alejados de la pieza de aplicación.
Page 21
Aditamento de polvo para la NOTA: Antes de la operación de corte, es recomen- dable preajustar la tasa de ciclo orbital entre 4 y 6. operación de lijado NOTA: Una velocidad de movimiento adecuada de la herramienta hace que el polvo de sierra sea Accesorio opcional expulsado suavemente.
Para mantener la SEGURIDAD y FIABILIDAD del pro- ducto, las reparaciones, y cualquier otra tarea de man- tenimiento o ajuste deberán ser realizadas en centros de servicio autorizados o de fábrica Makita, empleando siempre repuestos Makita. ACCESORIOS OPCIONALES PRECAUCIÓN:...
Page 24
Para reducir la exposición a estos productos químicos: trabaje en un área bien ventilada y póngase el equipo de seguridad indicado, tal como las máscaras contra polvo que están especialmente diseñadas para filtrar partículas microscópicas. Makita Corporation 3-11-8, Sumiyoshi-cho, 885866-944 Anjo, Aichi 446-8502 Japan...
