PULSEEIGHT ProAudio-8 Quick Start Manual

QUICK START GUIDE
ProAudio-16|ProAudio-8
CHECK WHAT'S INSIDE THE BOX
• 1 x ProAudio8/16 Chassis
• 1 x Power Cord

IMPORTANT!

!
• Please read the instructions before attempting to install or operate this equipment.
• Visit the help.pulse-eight.com
configuration tools.

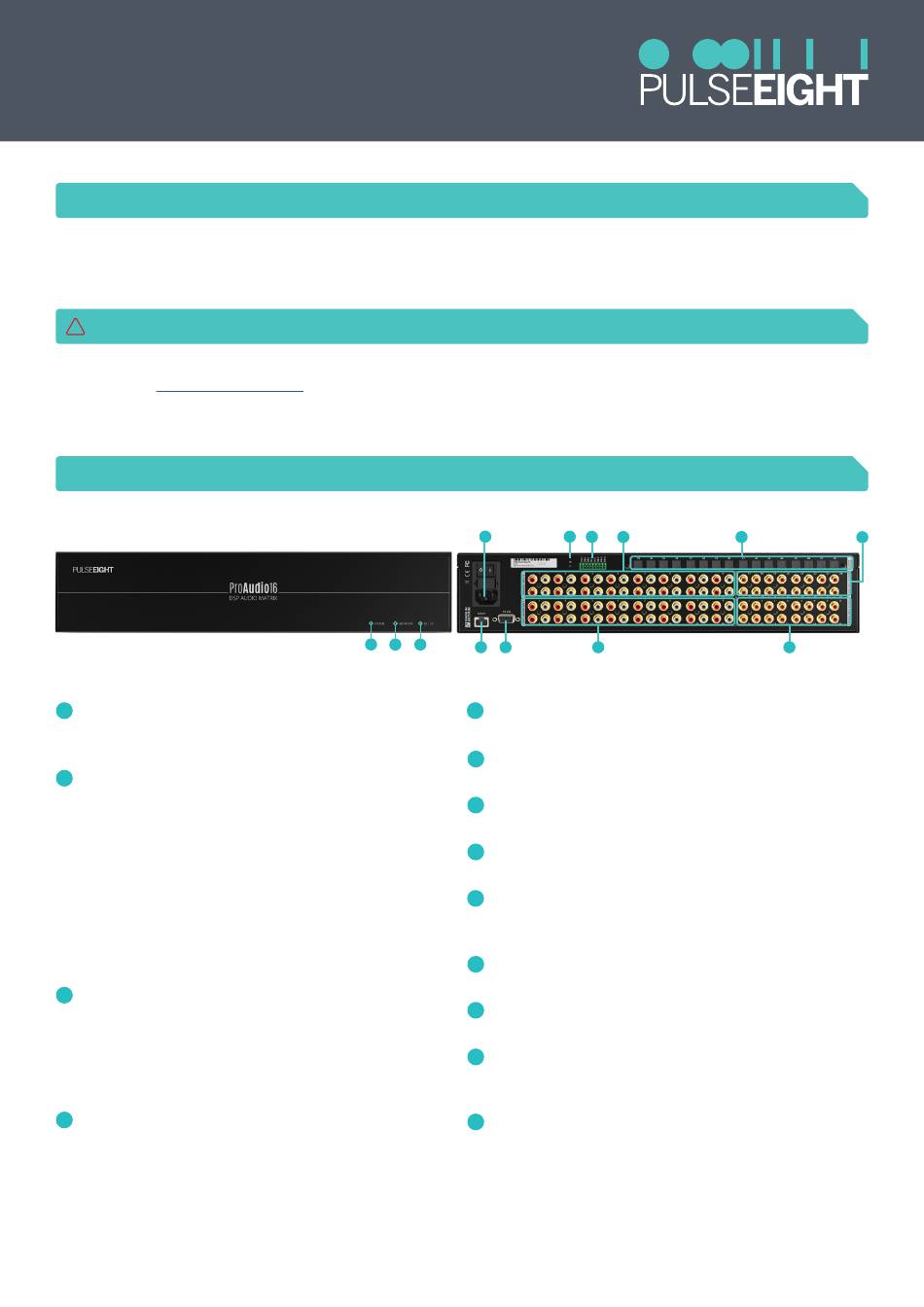

PANEL DESCRIPTIONS

A System Health LED: indicates ProAudio health.
RED - It is powering on or fault found.
GREEN - The system is healthy.
Network LED: indicates the ProAudio network
B
connection.
OFF - The network LED is off when it first powers
on. It remains off if no Ethernet cable is plugged in.
RED - When an Ethernet cable is plugged in, the light
turns red. This indicates that a physical connection
exists but there is no software connection.
YELLOW - Indicates that it is connected, but it fails
to negotiate an IP through DHCP.
GREEN - Indicates that an IP address is acquired or
a static IP address is assigned.
C ID/DB LED: indicates the data status, also used for
doorbell feature.
RED - When the ID button, Doorbell1 or Doorbell2
switches are being pressed.
GREEN (Flashing) - Anytime a command is received
through the Serial or Ethernet port.
Power Connector: is used with the supplied power
D
cord to connect directly to the main AC power (110V
- 240V).
• 1 x Rack Mounting Kit
• 1 x Quick Start Guide
to download the latest product manual, additional documentation, and
D
A B C
J
ID Button: For identification when using Control4
E
control systems.
Phoenix Ports: Connect to trigger/relays for doorbell
F
chimes or Public Announcement (PA) system.
Analog Inputs Port: Connect analog audio source
G
devices.
Optical Inputs Port: Connect optical SPDIF (Sony/
H
Philips Digital Interface) digital audio source devices.
Digital Coax Input Ports: Connect digital coax SPDIF
I
(Sony/Philips Digital Interface) digital audio source
devices.
J TCP/IP: Ethernet Port option (preferred) to connect
to third-party control systems.
RS-232: Serial Port option to connect to third-party
K
control systems.
L Analog Output Ports: Connect the analog outputs
to the corresponding audio sink devices (e.g. amp/
AVR).
Digital Coax Output Ports: Connect the digital
M
outputs to the corresponding audio sink devices (e.g.
amp/AVR).
E
F G
K L
H I
M
