PULSEEIGHT ProAudio1632 Quick Start Manual

QUICK START GUIDE
ProAudio1632|ProAudio32|ProAudio3248|ProAudio3264
CHECK WHAT'S INSIDE THE BOX
• 1 x ProAudio1632/32/3248/3264 Chassis
• 1 x Power Cord
IMPORTANT!
!
• Please read the instructions before attempting to install or operate this equipment.
• Visit the help.pulse-eight.com
configuration tools.

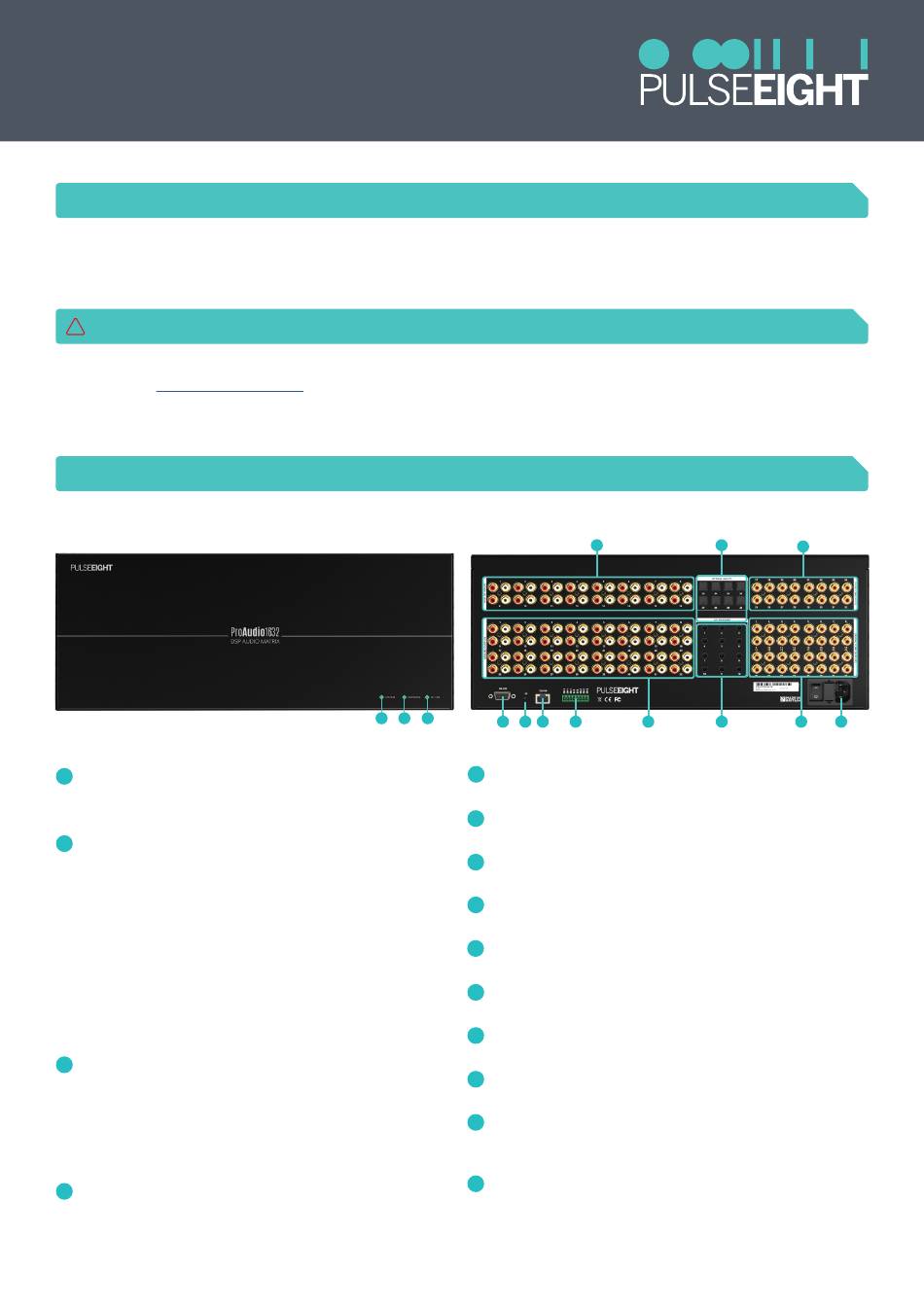

PANEL DESCRIPTIONS

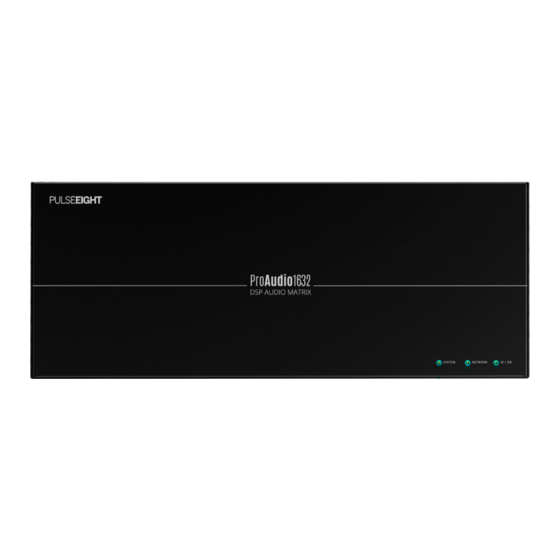

A System Health LED: indicates ProAudio health.
RED - It is powering on or fault found.
GREEN - The system is healthy.
B
Network LED: indicates the ProAudio network
connection.
OFF - The network LED is off when it first powers
on. It remains off if no Ethernet cable is plugged in.
RED - When an Ethernet cable is plugged in, the light
turns red. This indicates that a physical connection
exists but there is no software connection.
YELLOW - Indicates that it is connected, but it fails
to negotiate an IP through DHCP.
GREEN - Indicates that an IP address is acquired or
a static IP address is assigned.
ID/DB LED: indicates the data status, also used for
C
doorbell feature.
RED - When the ID button, Doorbell1 or Doorbell2
switches are being pressed.
GREEN (Flashing) - Anytime a command is received
through the Serial or Ethernet port.
Analog Inputs Port: Connect analog audio source
D
devices.
• 1 x Rack Mounting Kit
• 1 x Quick Start Guide
to download the latest product manual, additional documentation, and
A B C
E Optical Inputs Port: Connect optical SPDIF (Sony/
Philips Digital Interface) digital source devices.
Digital Coax Input Ports: Connect digital coax SPDIF
F
(Sony/Philips Digital Interface) digital source devices.
RS-232: Serial port option to connect to third-party
G
control systems.
H ID Button: For identification when using Control4
control systems.
TCP/IP: Ethernet Port option (preferred) to connect
I
to third-party control systems.
J Phoenix Ports: Connect to trigger/relays for doorbell
chimes or Public Announcement (PA) system.
Analog Output Ports: Connect the analog outputs to
K
the corresponding audio sink devices (e.g. amp/AVR).
L 12V Trigger Ports: 12VDC output signal to trigger
connected devices (i.e. power amps).
Digital Coax Output Ports: Connect the digital
M
outputs to the corresponding audio sink devices (e.g.
amp/AVR).
N Power Connector: Connect the supplied power cord
to the mains AC power (110-240V).
D
J
G H I K
E
F
L M N
