Photocatalytic Air Purifier Wall
User's Manual
(International)
Read and SAVE THESE INSTRUCTIONS
Thank you for purchasing photocatalyst Air Purifier

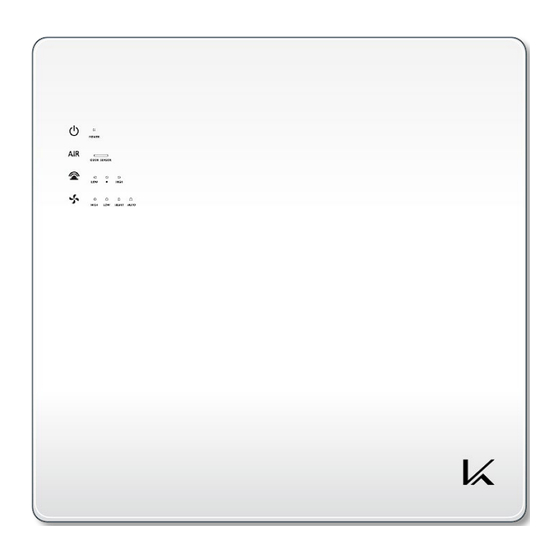

Wall Type "KL-W01"
Please read this owner's manual before you start using this
appliance.
Read "Quick Start Guide" for the initial set up.
K L-W 0 1
Type
The Flow of Use .......................................................... 3
Safety Precautions ...................................................... 4
Before Use .....................................................................6
Name of Each Parts .....................................................7
How to Use ................................................................... 8
How to Care and Maintain ......................................11
Trouble Shooting ....................................................... 14
Specifications ............................................................. 15
Introduction
How to use
Care & Troubleshooting
Specifications
Advertisement
Related Manuals for Kaltech TURNED KL-W01
Summary of Contents for Kaltech TURNED KL-W01
-
Page 1: Table Of Contents
K L-W 0 1 Photocatalytic Air Purifier Wall Type User’s Manual (International) Read and SAVE THESE INSTRUCTIONS Introduction Thank you for purchasing photocatalyst Air Purifier The Flow of Use ............3 Wall Type “KL-W01” Safety Precautions ............4 Please read this owner’s manual before you start using this Before Use ..............6 appliance. - Page 2 The photocatalyst technology is applied to this wall-mounted type Air Purifier This product will bring you comfortable “noiseless space “ Photocatalytic technology reduces a variety of odors What is “photocatalyst technology”? When a photocatalytically active material is irradiated with light, it has a strong oxidizing effects. This strong oxidizing capability of the photocatalyst can be used to reduce odor-causing substances.
-
Page 3: The Flow Of Use
The Flow of Use Choose a Location to Install See Quick Start Guide For unpleasant indoor odor. living room bedroom kitchen & dining entrance How to Install See Quick Start Guide See the “Quick Start Guide” and install correctly Getting started Just push the power button Beep Using Efficiently... -
Page 4: Safety Precautions
Safety Precautions Please follow the user manual’s instructions. Before using this product, be sure to read this "Safety Precautions" section. The following information is provided to ensure the correct and safe use of this product. Notation of these items ● W A R N I N G Content that may cause fire, electric shock, or injury, resulting in death or serious injury. - Page 5 Safety Precautions (Continued) Caution ・Places where chemical sprays are used ● Do not use in the following places. ・Locations with flammable/explosive gases ・Close to combustible materials such as curtains and clothing. ・Places exposed to direct sunlight or extreme ・Bathrooms and other places subject to water or high high or low temperatures humidity ・Places where oil components, such as cooking oil, are...
-
Page 6: Before Use
Before Use About the Installation Location ● For details on how to install this appliance, refer to the separate “Quick Start Guide". ● living room ●kitchen / dinning room Effective installation location ● bedroom ● entrance Installing it in front of the air conditioner increases the circulation effect, reduces unevenness in room temperature during cooling and heating of the room, and enhances the deodorizing effect. -
Page 7: Name Of Each Parts
Name of Each Parts Outlet Operation lamps Power lamp Odor sensor lamp Sensor sensitivity lamp Air volume lamp front cover panel AC adapter light terminal Power cord AC adapter light Suction port ・ Pre-filter ← to the outlet AC adapter Left side Right side Power button... -
Page 8: How To Use
How to Use Turn on the Power Push the power button Lights On Beep POWER Green: not much odor The levels of the odor in the room is Yellow: a little odor displayed in three colors by the odor sensor. ODOR SENSOR Red: strong odor (In 3 stages: Green, Yellow and Red) - Page 9 How to Use (continue) Adjusting the Air Volume Initially, it is set to "Auto“. When the air volume is set to “High", “Low", or “Silent", continuous operation is performed at the set air volume regardless of the sensitivity of the odor sensor. Press the air volume button Each time the air volume selection...
- Page 10 How to Use (continue ) Recommended setting for each room ● * The setting levels f or each room are based on our experiment results. When the air-flow volume mode is set to "Auto" ： Set the “sensor sensitivity” living room Kitchen / dinning Scene...
-
Page 11: How To Care And Maintain
How to Care and Maintain Please keep the appliance front panel and vent area clean. In particular around the air vent where dust and dirt stains may build up, ensure the air vent surrounding areas are cleaned on a regular basis. If you want to know the recommended frequency of maintenance, see “Guide for caring". - Page 12 How to Care and Maintain Cleaning the photocatalyst filter ● Rinse the dust on the surface of the photocatalyst filter. Remove the photocatalytic filter Soak the filter for approx. 10 hours It beeps five times, and the power turns off. Only use water or warm water Beep, beep Power...
- Page 13 How to Care and Maintain (continue) ※ our recommended standard below. Guide for caring ● The frequency of the care depends on the usage environment. Scene Pre-filter Photocatalytic filter General home Once every 3 months Once every 4 months With pets Once every 2 month Once every 2 months living room...
-
Page 14: Trouble Shooting
Trouble Shooting Power does not turn on / does not work ■ Please check Measures Is power plug inserted into the outlet Make sure the following is connected correctly. correctly? ・ Connection between power plug and outlet (A) ・ Connection between the AC adapter and power cord (B) ・... -
Page 15: Specifications
Trouble Shooting (Continue) Room odor cannot be reduced significantly / Odor comes from air outlet ■ Please check Measures Did you cause strong odors in If strong odor occurs, it takes time to reduce. Turn on the appliance for a short period will your room, such as using grill or gradually reduce odor. - Page 16 Kaltech Corporation WO1-tr ver.1.3 EN_KL-W01_User manual_E_V1.3_2309 3-3-7 Bakuromachi, Chuo-Ku, Osaka 541-0059, Japan...
