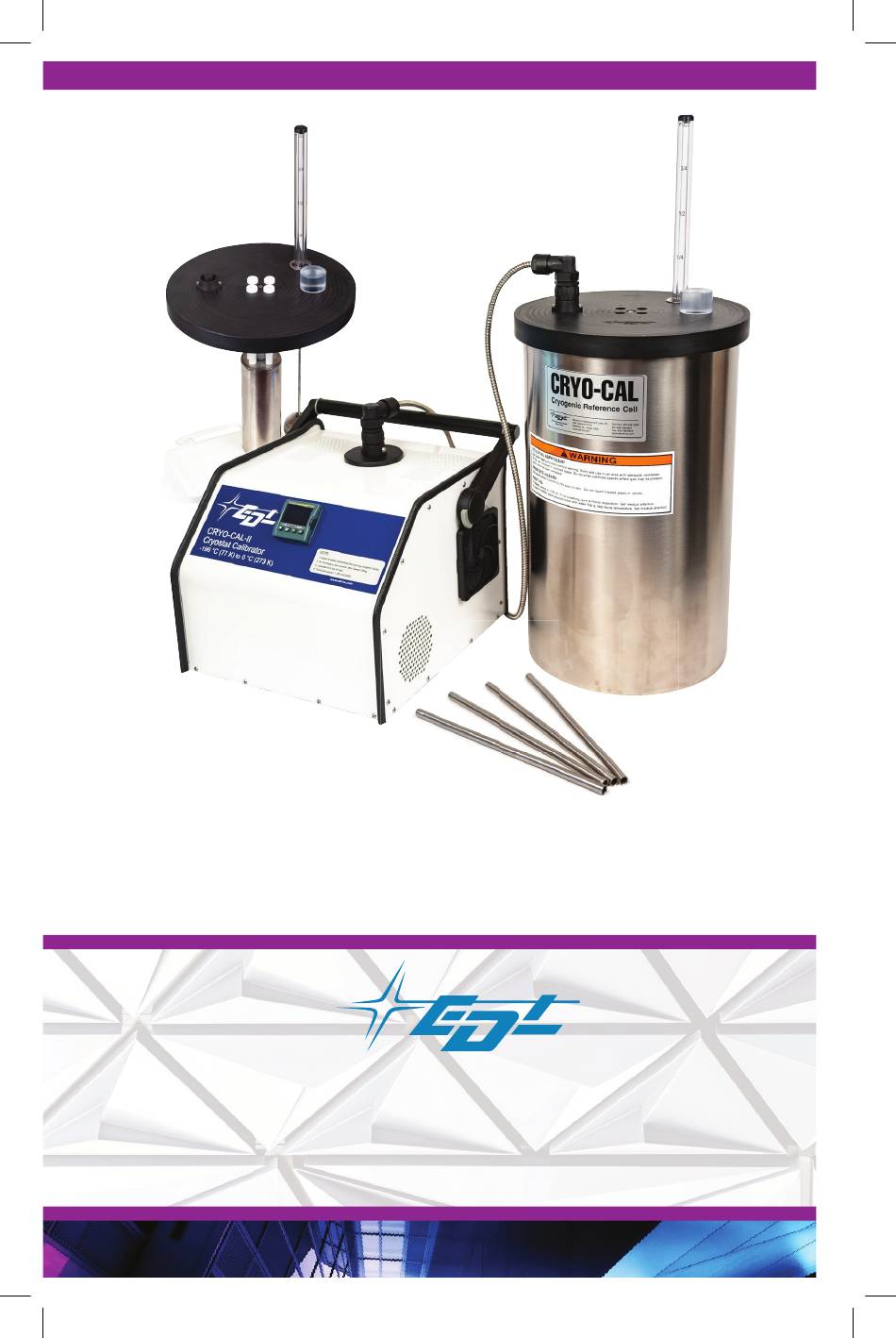

- Page 1 CRYO-CAL-1 & CRYO-CAL-2-LI User Manual Electronic Development Labs, Inc. The Temperature People® Since 1943 244 Oakland Drive Danville, VA 24540 www.edl-inc.com • sales@edl-inc.com Toll-Free: 1.800.342.5335 • Fax: 434.799.0847...
-
Page 2: Table Of Contents
Charts and Graphs ....................8 Specifications ...................... 9 Charts and Graphs Continued ................9 Service ....................... 10 Calibration ......................10 Warranty ......................10 EDL Quality Assured Sensors ................11 Our Most Popular Products ................. 12 Trust in Electronic Development Laboratories, Inc..........13... - Page 3 WARNING PLEASE READ FIRST Warning! When measuring high or low temperatures, standard safety precautions must be followed: 1. Use insulated, cryogenic or high temperature gloves. 2. Wear protective, shatterproof face shields. 3. Wear fireproof protective clothing when working with hot liquids. Warning! When measuring operating machinery, never insert your hands or arms.
-
Page 4: Introduction
. Comparison calibrations are achieved using a reference sensor to obtain the real temperature of the internal equalization block. The CRYO-CAL-1 (CC1) is a single point device that is typically used at the boiling point of LN , the sublimation point of CO , or at the ice point. - Page 5 Diagram Fill Indicator Fill Hole Guide Tubes Cable Controller...
-
Page 6: Installation And Set Up
CC1 & CC2: Unpack and carefully inspect the unit for any damage that may have occurred in shipping. It is important to alert EDL immediately if there are any visible signs of damage to the instrument or shipping box. Retain all packaging and external boxes. -
Page 7: Rear Panel Fuse & On / Off Switch (Cc2)
Rear Panel Fuse & On / Off Switch (CC2) The rear panel houses the main power fuse and the On/Off Switch, and limits the current to the entire unit. This is a 10 Amp fuse and should not be altered for any reason. Operating Interface (CC2) On the front panel of the CC2 you will fi nd four Soft Keys on the Controller. -
Page 8: Itools (Cc2)
iTools (CC2) The Controllers work automatically with the iTools software. A limited-feature, free version of iTools is included with your calibrator. iTools allows you full access to the Controller’s features without having to use the Controller. We recommend purchasing the license for the full version of iTools from Eurotherm to unlock the program’s full functionality. -
Page 9: Use And Operation At Boiling Point Of Ln2
Use and Operation at Boiling Point of LN CC1 & CC2: The supplied rubber stoppers should be placed in the unused holes to minimize air currents in the Dewar. They should not be pressed tight. Over time condensation and ice will build up on the lid around the sensors and the Tefl... -
Page 10: Cleaning And Storage Of Dewar
note a small change in the plateau. We recommend fi lling the Dewar when you are changing temperature, this will minimize the stabilization time. We recommend working up from the boiling point of LN toward room temperature. In order to quickly go down in temperature, you will need to top off the Dewar with LN , this requires fi lling above the spacer tubes. -
Page 11: Charts And Graphs Continued
Charts and Graphs... -
Page 12: Calibration
-150 °C -200 °C It is not recommended to perform in-house repairs on your EDL instruments. If the instrument gets damaged or requires service/re-calibration, it is recommended to be returned to the manufacturer. Visit www.edl-inc.com/repairs for more information and instructions. For help, contact 800.342.5335 or email sales@edl-inc.com. -
Page 13: Warranty
In the event of failure of a product covered by this warranty, EDL will repair the instrument when it is returned by the purchaser, freight prepaid, to our manufacturing facility within the applicable warranty period. -
Page 14: Our Most Popular Products
If you need a customized solution tailored specifi cally to your needs, our engineering team has the knowledge and experience to create a new solution for you. Contact us at 1.800.DIAL.EDL (1.800.342.5335) and let’s get started on something groundbreaking! Our Most Popular Products Pocket-Probe®... - Page 15 EDL has a long tradition of excellence because being the best isn’t nearly enough for us. Every year, every day, we push ourselves to go beyond our best. That’s why no matter what it is, every EDL product is the most accurate, most cost-effective, most sturdy, longest lasting in its class.
