Summary of Contents for EDL STS-COOL

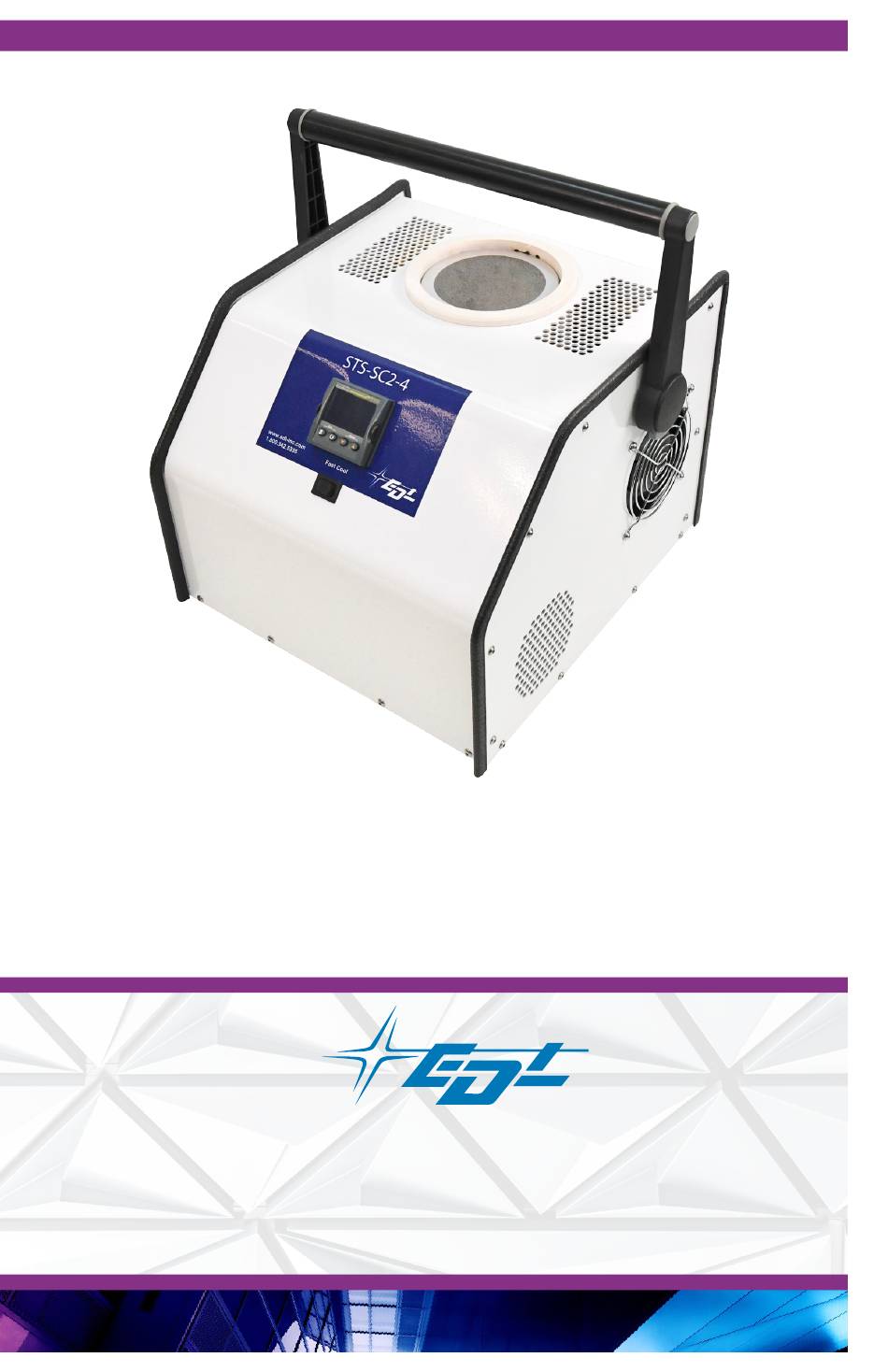

- Page 1 STS Surface Sensor Calibrator User Manual Electronic Development Labs, Inc. The Temperature People® Since 1943 244 Oakland Drive Danville, VA 24540 www.edl-inc.com • sales@edl-inc.com Toll-Free: 1.800.342.5335 • Fax: 434.799.0847...
-
Page 2: Table Of Contents
Reference System Diagram ....................9 Specifications ......................... 10 Troubleshooting ......................10 Service ..........................11 Calibration ........................11 Warranty ........................11 EDL Quality Assured Sensors ................... 12 Our Most Popular Products ....................13 Trust in Electronic Development Laboratories, Inc............14... - Page 3 WARNING PLEASE READ FIRST Warning! Do not attempt to measure live circuits. For this application, contact 1.800.342.5335 or email sales@edl-inc.com for information on our recommended line of non-contact infrared pyrometers. Warning! When measuring high temperatures, standard safety precautions must be followed: 1. Use insulated, fireproof gloves.
-
Page 4: Introduction
EDL’s goal is to provide a device that functions well and can be easily maintained for many years without the fear of unavailability of parts. The STS is 100% designed and hand-crafted in our... -
Page 5: Diagrams Of Device

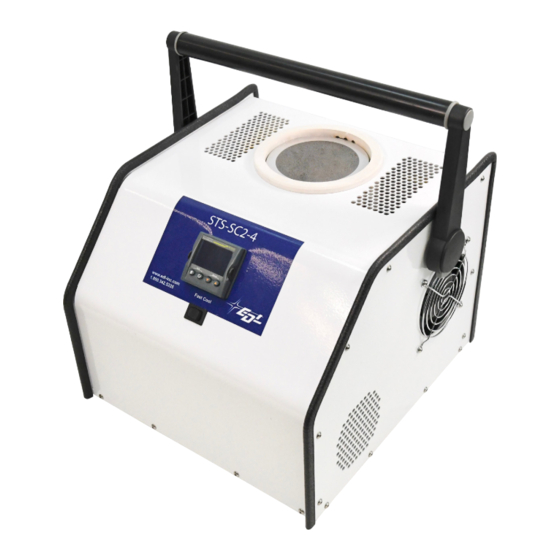

Diagrams of Device Adjustable Handle Surface Calibration Block Controller Fast Cool Switch Access for Calibration TCs Thermocouple Output RS-232 Port On / Off Switch Fuse Power Cable Port... -
Page 6: Installation And Set Up
Unpack and carefully inspect the unit for any damage that may have occurred in shipping. It is important to alert EDL immediately if there are any visible signs of damage to the instrument. Do Not Plug In the Unit Until It Has Been Inspected. There should be no loose parts or any bent or damaged surfaces on the calibrator. -
Page 7: Operating Interface
Operating Interface On the front panel of the STS Calibrator you will find one Fast Cool Switch and four Soft Keys on the Controller. Full operation of the STS is accomplished through the four Soft Keys on the Controller. For convenience, full operation of the STS can also be accomplished through a computer attached to the RS-232 Port via iTools. -
Page 8: Fast Cool Switch
Note: iTools gives you complete access to all controller settings and features – including those that should not be altered. Operate with care! In order to maintain the high accuracy and safe operation of the preprogrammed STS, do not change any of the operating parameters! Use iTools for controlling temperature and basic informational purposes only. -
Page 9: Use And Operation
Brass STS-SC2-4 Ambient to 350 °C (662 °F) Aluminum/Brass STS-COOL -20 °C to 130 °C (-4 °F to 266 °F) Aluminum Once the Set Point Temperature is set, sufficient time should be allowed for the block to reach the Set Point Temperature and stabilize. Stabilization for most temperature ranges is achieved within 25 minutes after reaching the Set Point Temperature. -
Page 10: Secondary Reference Points
6. For the highest accuracies, it is recommended that a secondary, independent reference is used in concert with the reference on the STS. This includes the EDL Reference System as well as a PRT. This will allow you the periodically calibrate the sensor to help minimize errors, and give you better traceability. -
Page 11: Uncertainties
Reference System Diagram Step 1: Set STS to the appropriate Set Point Temperature. Step 2: Connect reference instrument to jack on the back of the STS. Step 3: Once the Set Point Temperature has stabilized, begin checking your surface sensors. Hold the surface sensor firmly on block, midway between the rear of the block and the wall. -
Page 12: Specifications
Specifications STS-COOL STS-SC1 STS-SC2 STS-SC2-4 Model Number (Low Range) (High Range) (Mid-Range) (Mid-Range) Temperature -20 °C to 130 °C Ambient to 650 °C Ambient to 350 °C Ambient to 350 °C Range Aluminum Brass Aluminum Brass or Aluminum Block Material 7.62cm (3”) -
Page 13: Service
Service It is not recommended to perform in-house repairs on your EDL instruments. If the instrument gets damaged or requires service/re-calibration, it is recommended to be returned to the manufacturer. Visit www.edl-inc.com/repairs for more information and instructions. For help, contact 800.342.5335 or email sales@edl-inc.com. -
Page 14: Edl Quality Assured Sensors
(3) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external causes. In addition, EDL reserves the right to refuse warranty claims against products or services that are obtained and/or used in contravention of the laws of any country. -
Page 15: Our Most Popular Products
E-Z Probe® & E-Z Probe® Ultra Pyrometers - Fast and affordable, the E-Z Probe® and the E-Z Probe® Ultra deliver EDL’s legendary accuracy that’s easy to use (and easy on the wallet!) Temperature Kits - These all-in-one packages include instruments and sensors tailored to the specific needs of several industries, such as pipeline, plastics, or food &... -
Page 16: Trust In Electronic Development Laboratories, Inc
EDL has a long tradition of excellence because being the best isn’t nearly enough for us. Every year, every day, we push ourselves to go beyond our best. That’s why no matter what it is, every EDL product is the most accurate, most cost-effective, most sturdy, longest lasting in its class. - Page 17 Notes Notes...
- Page 18 Notes Notes...
- Page 19 Notes Notes...
- Page 20 Electronic Development Labs, Inc. The Temperature People® Since 1943 244 Oakland Drive Danville, VA 24540 www.edl-inc.com • sales@edl-inc.com Toll-Free: 1.800.342.5335 • Fax: 434.799.0847 V1.02/20...
