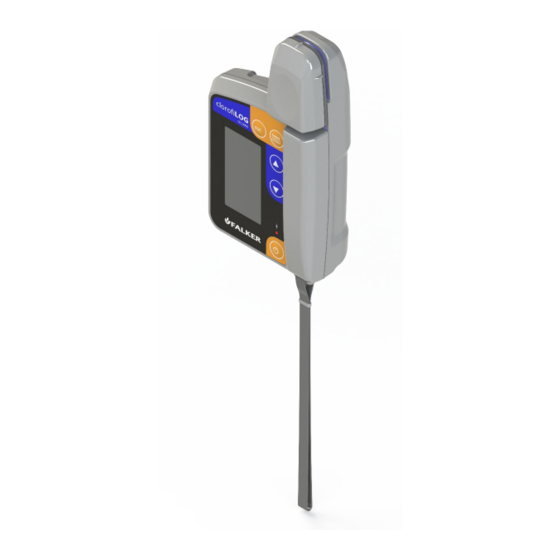

- Page 1 Manual Digital Chlorophyll Content Meter clorofiLOG CFL2060 Revision B 05/2023 MAN_CFL2060...
- Page 2 CFL2060 Digital Meter of Chlorophyll Content All rights reserved. Falker Automação Agrícola Ltda. Copying by any means of this document or part of it without prior written authorization is expressly prohibited. Falker reserves the right to make changes to this document or the equipment without prior notice.
-
Page 3: Table Of Contents
CFL2060 Digital Chlorophyll Content Meter Índice 1 Introduction......................4 2 The equipment....................5 2.1 Accessories....................6 3 Operation......................6 3.1 First use......................6 3.2 Basic operation...................7 3.3 Data acquisition..................8 3.4 Data visualisation..................11 3.5 Manage.....................12 3.6 Bluetooth....................15 3.7 Settings....................15 3.8 Internal GPS....................16 3.9 Screens.....................16 3.10 Falker Leaf – Visualisation and data analysis...........18 3.11 Data transfer...................19 4 Basic maintenance...................20 4.1 Battery charging..................20... -
Page 4: Introduction
CFL2060 Digital Meter of Chlorophyll Content 1 Introduction The clorofiLOG – Digital Chlorophyll Content Meter – is an that allows the user to identify the crop health condition in a simple and direct form. The chlorophyll content is proportional to fundamental nutrients, as nitrogen. By using the clorofiLOG is possible to identify and correct crop shortcomings directly in field. -
Page 5: The Equipment
CFL2060 Digital Chlorophyll Content Meter 2 The equipment The equipament is supplied in a protection case, suitable for use in the field. The folowing items are provided: Eletronic device CFL2060 • Protection case • Safety wrist strap • Warranty term •... -
Page 6: Accessories
CFL2060 Digital Meter of Chlorophyll Content ATENTION: For being an accurate measurement device, the CFL2060 must be transported carefuly. The case that is provided was design to protect the equipament when transported, allied with practicality of use. It is not a package for cargo transport 2.1 Accessories In addition to the items that come with the equipment, the following... -
Page 7: Basic Operation
CFL2060 Digital Chlorophyll Content Meter 3.2 Basic operation Figure 3: User interface The operation of the device is done with the following buttons and the screen, where the measurement values, warnings and user information as the state of charge, memory occupation and GPS signal are displayed. -
Page 8: Data Acquisition
CFL2060 Digital Meter of Chlorophyll Content Figure 4: Main screen In the main screen, there are 5 options: Acquire: menu used to acquire new data. • View: menu used to visualize acquired. • Manage: menu that allows to set reference, add, edit or delete work. •... - Page 9 CFL2060 Digital Chlorophyll Content Meter After selecting the desired work, the following screen will be displayed: Figure 6: “New day” or “Continue” screen There is the option to continue one day work or start a new day. After selection, the calibration screen will open. Figure 7: Calibration screen To perform the calibration, the chamber must remain closed for up to 6 seconds, empty without any leaf inside.
- Page 10 CFL2060 Digital Meter of Chlorophyll Content Note: Device calibration will be requested whenever the user turns on the device and starts the measurement process After performing the calibration procedure, the equipment will be ready to perform measurements. A screen with the data of the last measurement performed will be presented to the user.
-
Page 11: Data Visualisation
CFL2060 Digital Chlorophyll Content Meter Add measures: adds one more measurement to the current point. • Erase latest: delete the last measurement at the current point. • CAUTION: Never obstruct or place any type of material on the measurement chamber closing sensor. This could permanently damage it or cause other serious damage. -
Page 12: Manage
CFL2060 Digital Meter of Chlorophyll Content In “TOTAL”, the average of chlorophyll of Lall measurements performed at the point in question is displayed. In “CL A” the average of chlorophyll A of all measurements at the point is displayed. In “CL B”, the average of chlorophyll B of all measurements at the point is presented. - Page 13 CFL2060 Digital Chlorophyll Content Meter When clicking on the “Set reference” menu, a screen will appear for choosing the work where the point you want to define as a reference is located. When selecting the work, the screen will appear containing the existing points in that work, using the directional buttons it is possible to choose the desired point.
- Page 14 CFL2060 Digital Meter of Chlorophyll Content Figure 17: Edit work By selecting the “Delete measurements” menu, a warning screen will open informing you that the measurements will be deleted but the structure will remain. On the same screen, confirmation is required to continue. On the next screen, you are asked to select the work that will have its measurements deleted.
-
Page 15: Bluetooth
CFL2060 Digital Chlorophyll Content Meter Figure 19: Delete work 3.6 Bluetooth Selecting the “Bluetooth” menu opens the following options Figure 20: Bluetooth screen In “status” option it is possible to check if the bluetooth is enabled or disabled. Selecting “enable” the bluetooth will be activated. By selecting “Disable”, bluetooth will be disabled. -
Page 16: Internal Gps
CFL2060 Digital Meter of Chlorophyll Content In “Backlight” option it is possible to change the intensity of the equipment screen brightness. In “About” it is possible to check information about how many measurements are stored in the memory, the battery charge level and the battery temperature. - Page 17 CFL2060 Digital Chlorophyll Content Meter Figure 22: Device screen chaining 17 de 23...
-
Page 18: Falker Leaf - Visualisation And Data Analysis
CFL2060 Digital Meter of Chlorophyll Content 3.10 Falker Leaf – Visualisation and data analysis The Web Aplication could be access in: leaf.falker.com.br And the App is available for Android devices on the Google Play Store. Search for “Falker Leaf” ClorofiLOG has a specific Web Application and App for viewing and analyzing the collected data. -
Page 19: Data Transfer
CFL2060 Digital Chlorophyll Content Meter The System also allows customizing and exporting reports for the presentation of measurement results, including graphs, parameters and attributes of the data collected. 3.11 Data transfer Data transfer can be done in two ways: – USB cable: connect a USB cable to the device's USB C output with the device turned off. -
Page 20: Basic Maintenance
CFL2060 Digital Meter of Chlorophyll Content 4 Basic maintenance 4.1 Battery charging The clorofiLOG has an internal battery that must be charged with the original cable, connected to an outlet charger with USB output from a safe source or to a device with USB. Avoid using chargers that are not approved by Organs responsible bodies. -
Page 21: Another Questions
CFL2060 Digital Chlorophyll Content Meter After that, connect the equipment to the computer, using the same charging cable. The computer will recognize chlorofiLOG as a removable media, which can be located by clicking on “My Computer”, in computers with Windows. Select the file provided by Falker (revxxx.fs2), select the file and drag it to the clorofiLOG folder in “My Computer”. -
Page 22: Technical Specifications
CFL2060 Digital Meter of Chlorophyll Content 5 Technical specifications The following table presents the main technical information of the equipment. Table 2: Technical specifications CFL2060 Measurement Scale 0 a 100 ICF * Measurement Resolution 0,1 ICF Duration of a Measurement Less than 2 s Memory Capacity Memory Capacity... -
Page 23: Dimensional Information
CFL2060 Digital Chlorophyll Content Meter 5.2 Dimensional information Equipment dimensions are shown in the figure. Figure 24: Dimensions in mm 5.3 Anatel homologation for equipment CFL2060 This product contains the Bluetooth card approval code 05118-16-10070. 5.4 CE and FCC marking for equipment CFL2060i This product is in conformity with the 2014/53/EU –...
