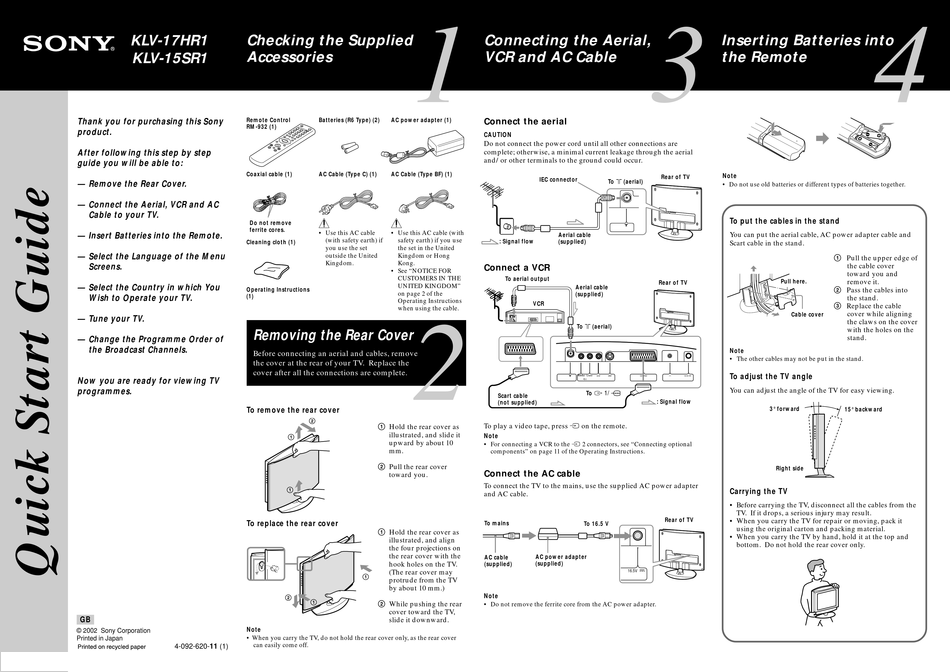

Sony WEGA KLV-15SR1 Quick Start Manual

KLV-17HR1 Checking the Supplied
Accessories
KLV-15SR1
Remote Control
Thank you for purchasing this Sony
RM-932 (1)
product.
After following this step by step
guide you will be able to:
Coaxial cable (1)
— Remove the Rear Cover.
— Connect the Aerial, VCR and AC
Cable to your TV.
Do not remove
ferrite cores.
— Insert Batteries into the Remote.
Cleaning cloth (1)
— Select the Language of the Menu
Screens.
— Select the Country in which You
Operating Instructions
(1)
Wish to Operate your TV.
— Tune your TV.
Removing the Rear Cover
— Change the Programme Order of
the Broadcast Channels.
Before connecting an aerial and cables, remove
the cover at the rear of your TV. Replace the
cover after all the connections are complete.
Now you are ready for viewing TV
programmes.
To remove the rear cover
To replace the rear cover
GB
Note
© 2002 Sony Corporation
Printed in Japan • When you carry the TV, do not hold the rear cover only, as the rear cover
can easily come off.
4-092-620-11 (1)
1
Batteries (R6 Type) (2) AC power adapter (1)
AC Cable (Type C) (1) AC Cable (Type BF) (1)
• Use this AC cable • Use this AC cable (with
(with safety earth) if safety earth) if you use
you use the set the set in the United
outside the United Kingdom or Hong
Kingdom. Kong.
• See "NOTICE FOR
CUSTOMERS IN THE
UNITED KINGDOM"
on page 2 of the
Operating Instructions
when using the cable.
2
2
1 Hold the rear cover as
illustrated, and slide it
1
upward by about 10
mm.
2 Pull the rear cover
toward you.
1
1 Hold the rear cover as
illustrated, and align
the four projections on
the rear cover with the
hook holes on the TV.
(The rear cover may
1
protrude from the TV
by about 10 mm.)
2
1 2 While pushing the rear
cover toward the TV,
slide it downward.
3
Connecting the Aerial,
VCR and AC Cable
Connect the aerial
CAUTION
Do not connect the power cord until all other connections are
complete; otherwise, a minimal current leakage through the aerial
and/or other terminals to the ground could occur.
Rear of TV
IEC connector
To 8 (aerial)
Aerial cable
: Signal flow
(supplied)
Connect a VCR
To aerial output
Rear of TV
Aerial cable
(supplied)
VCR
To 8 (aerial)
R/D/D/D L/G/S/I 2 2
S
2
To i 1/
Scart cable
: Signal flow
(not supplied)
To play a video tape, press t on the remote.
Note
• For connecting a VCR to the t 2 connectors, see "Connecting optional
components" on page 11 of the Operating Instructions.
Connect the AC cable
To connect the TV to the mains, use the supplied AC power adapter
and AC cable.
To mains
To 16.5 V
AC cable AC power adapter
(supplied) (supplied)
16.5V
Note
• Do not remove the ferrite core from the AC power adapter.
Inserting Batteries into
the Remote
Note
• Do not use old batteries or different types of batteries together.
To put the cables in the stand
You can put the aerial cable, AC power adapter cable and
Scart cable in the stand.
1 Pull the upper edge of
Pull here.
2 Pass the cables into
3 Replace the cable
Cable cover
Note
• The other cables may not be put in the stand.
To adjust the TV angle
16.5V
You can adjust the angle of the TV for easy viewing.
3° forward
Right side
Carrying the TV
• Before carrying the TV, disconnect all the cables from the
TV. If it drops, a serious injury may result.
Rear of TV • When you carry the TV for repair or moving, pack it
using the original carton and packing material.
• When you carry the TV by hand, hold it at the top and
bottom. Do not hold the rear cover only.
4
the cable cover
toward you and
remove it.
the stand.
cover while aligning
the claws on the cover
with the holes on the
stand.
15° backward
