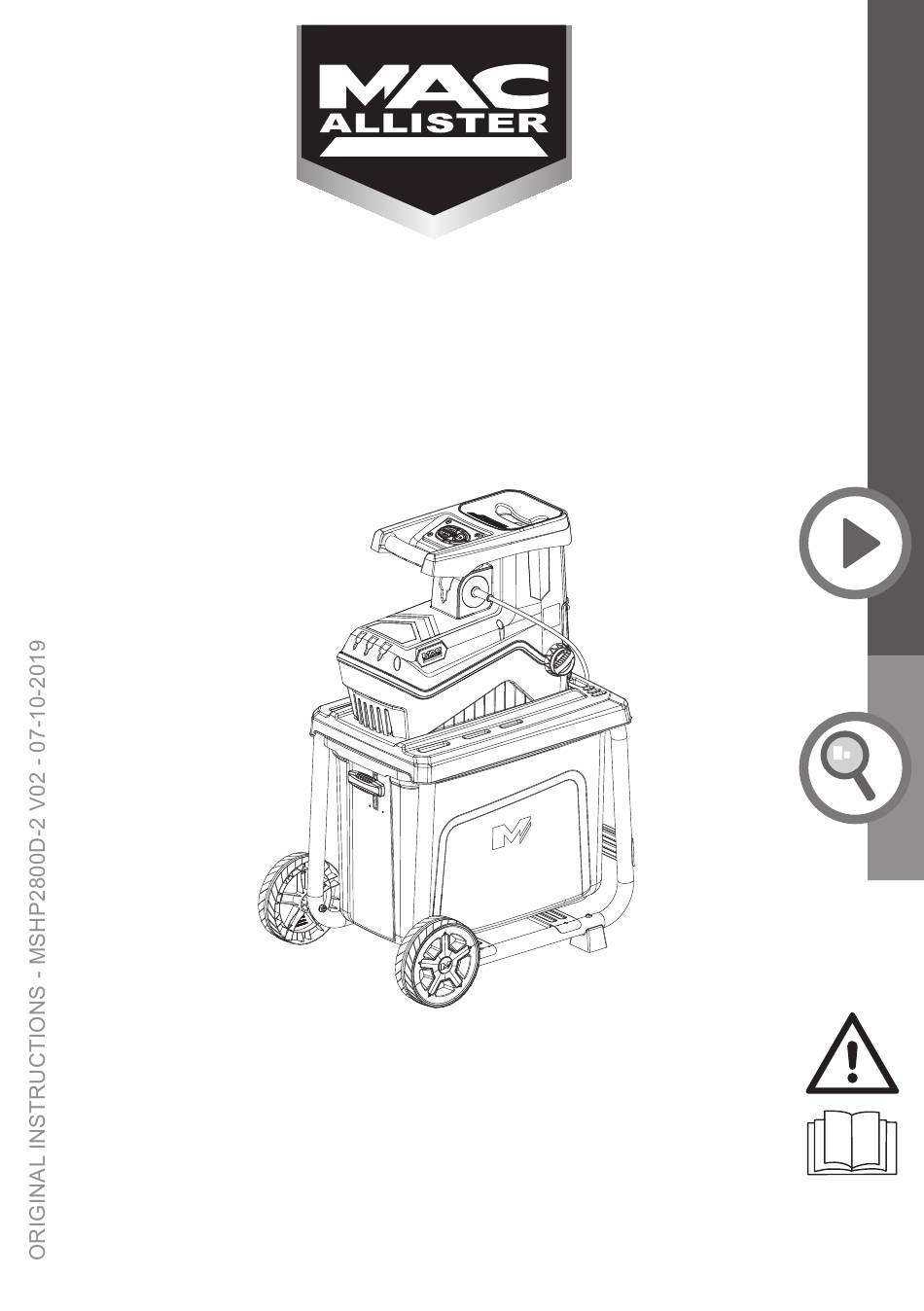

- Page 1 Electric Shredder Electric Shredder 2800 W 2800 W MSHP2800D-2 MSHP2800D-2 EAN: 3663602627357 EAN: 3663602627357 WARNING: Read the instructions before using the product! WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
MSHP2800D-2 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Your product Before you start detail... more Product functions Operation Care and maintenance... -
Page 3: Safety Information
Safety information MSHP2800D-2 Safety warnings WARNING! READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Training 1. Read the instructions carefully. Be familiar with the controls and the correct use of the machine. 2. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine. - Page 4 Safety information MSHP2800D-2 9. Before use check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
- Page 5 Safety information MSHP2800D-2 8. Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the feed intake opening. 9. If the machine becomes clogged, shut-off the power source and disconnect the machine from supply before cleaning debris.
- Page 6 Safety information MSHP2800D-2 Maintenance and storage 1. When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop.
- Page 7 Safety information MSHP2800D-2 Additional warnings 1. This appliance must be earthed! Use only three core extension cables with the earth wire connected. If an extension cord is used, make sure the extension cord is specifically designed for outdoor use with earthing terminal and not lighter than H07RN-F, 3x1.5mm²...
- Page 8 Safety information MSHP2800D-2 12. Before using, check the supply and extension cord for signs of damage and aging. Do not use the product if the cord is damaged or worn. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. 13. Do not use the product if the extension cord is damaged or worn.
- Page 9 Safety information MSHP2800D-2 Emergency Familiarise yourself with the use of this product by means of this instruction manual.Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1. Always be alert when using this product, so that you can recognise and handle risks early.
- Page 10 Safety information MSHP2800D-2 Symbols explanation On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage)
- Page 11 Safety information MSHP2800D-2 Wear protective gloves. Wear tight-fitted protective clothes. Wear protective, slip-resistant footwear. mm.yyyy Manufacturing date code; year of manufacturing (yyyy) and month of manufacturing (mm). S1:2300W The working duty of the motor is S1 2300W, which means the motor can work continuously with maximum power load of 2300W.
- Page 12 WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Reverse function Forward function Reset function MSHP2800D-2: M-MacAllister, SH-Shredder,P-Power...
-
Page 13: Your Product
Your product MSHP2800D-2 Your product MSHP2800D-2 Your product Your product 1. Transport handle 9. Foot (x2) 14. Air vents 1. Transport handle 9. Foot (x2) 14. Air vents 2. Feeding funnel a. Bolt (x4)* a. Bolt (x2) 15. Discharge chute* 2. -
Page 14: Before You Start
Before you start MSHP2800D-2 Unpacking 1. Remove the box from the frame, unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of anydamage. If you find that parts are missing or show damage do not use the product but contact your dealerU sing an incomplete or damaged product represents a hazard to people and property. - Page 15 Before you start MSHP2800D-2 Before you start MSHP2800D-2 NOTE: Take care of small parts that are removed during NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. assembly or when making adjustments. Keep them secure to avoid loss.
- Page 16 Before you start MSHP2800D-2 MSHP2800D-2 Before you start Before you start MSHP2800D-2 Wheel assembly Wheel assembly Wheel assembly 1. Loosen and remove the washer(10a) and pre-assembled 1. Loosen and remove the washer(10a) and pre-assembled 1. Loosen and remove the washer(10a) and pre-assembled nut (10c) from the bolt nut (10c) from the bolt (wheel axle)(10).
- Page 17 Before you start MSHP2800D-2 Before you start MSHP2800D-2 Collection box assembly Collection box assembly Switch off and unplug the machine before attaching or removing the collection box. Switch off and unplug the machine before attaching or removing the collection box.
- Page 18 Before you start MSHP2800D-2 Before you start MSHP2800D-2 MSHP2800D-2 come out of the discharge chutes. 4. Turn the lock ring (6) clockwise, to secure the position of the counter blade adjuster (5). 4. Turn the lock ring (6) clockwise, to secure the position of the counter blade adjuster (5).
-
Page 19: In More Detail
MSHP2800D-2 more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications EC declaration of conformity... -
Page 20: Product Functions
Product functions Intended use MSHP2800D-2 This shredder is designed for cutting of fibrous and woody garden waste for composting. Intended use This product is not intended for shredding pieces of metal, rocks, bottles, cans, etc. or soft waste such as kitchen rubbish. For safety reasons it is essential to read the entire instruction manual This shredder is designed for cutting of fibrous and woody garden waste for composting. - Page 21 Product function Product functions MSHP2800D-2 MSHP2800D-2 Product functions MSHP2800D-2 Forward/reverse operation Forward/reverse operation Forward/reverse operation Product functions MSHP2800D-2 Position Operation mode Application Position Operation mode Application Position Operation mode Application Forward Shredding Shredding Forward Shredding Forward Forward/reverse operation Product functions...
- Page 22 Product functions MSHP2800D-2 Product functions MSHP2800D-2 pull out the jammed material from the feeding funnel; - After the product runs for a few seconds, press the Off Switch > After the product runs for a few seconds, press the Off Switch “O” (19) to switch "O"...
-
Page 23: Operation
Operation MSHP2800D-2 General operation 1. Check the product, and accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that accessories are properly fixed. 3. Push the product forward by its handle. Keep the handle dry and clean to ensure safe support. - Page 24 Operation MSHP2800D-2 20. If during cutting the cutting blade stalls, stop the product immediately and disconnect the product from the power supply before investigating the cause. 20. If during cutting the cutting blade stalls, stop the product immediately and disconnect 21.
- Page 25 Operation MSHP2800D-2 Removing blockages WARNING! Wear protective gloves when removing Remove blockage blockages! Use proper tools to remove debris, e. g. a wooden stick! Never use your bare hands! WARNING! Wear protective gloves when removing blockages! Use proper tools to remove debris, e. g. a wooden stick! Never use your bare hands!
- Page 26 Operation MSHP2800D-2 WARNING! Bolt with long thread activates the safety switch (4c) when fully tightened. The guard (4) securely fixed in WARNING! Bolt with long thread activates the safety switch (4c) when fully proper position activate the safety switch (4b). tightened. The guard (4) securely fixed in proper position activate the safety Do not use short thread bolts in fixation holes close to switch (4b).
-
Page 27: Care And Maintenance
Care and maintenance MSHP2800D-2 The golden rules for care WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage. - Page 28 Care and maintenance MSHP2800D-2 Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1. Switch the product off and disconnect it from the power supply.
-
Page 29: Troubleshooting
Troubleshooting MSHP2800D-2 Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All... -
Page 30: Recycling And Disposal
Recycling and disposal MSHP2800D-2 Recycling and disposal The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is function properly. Recycle the package afterwards. -
Page 31: Guarantee
Guarantee MSHP2800D-2 Guarantee (for UK only) > This product carries a guarantee of 24 months starting from the day of purchase. Please retain your receipt as a proof. > This guarantee specifically excludes losses due to: Normal wear and tear, including accessory wear... -
Page 32: Technical Specifications
Technical specifications MSHP2800D-2 Technical specifications General > Rated voltage, frequency: 220-240 V~, 50 Hz > Rated power input: 2800 W > Operating mode: S1 2300 W, 2800 W(P40) > No load speed: 50 min- > Max. cutting diameter: max. Ø 45 mm >... -
Page 33: Ec Declaration Of Conformity
Kingfisher International Products B.V. Rapenburgerstraat 175E, 1011 VM Amsterdam, The Netherlands Declare that the product 2800 W Electric Shredder MSHP2800D-2 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: The Machinery Directive 2006/42/EC ●... - Page 34 Manufacturer: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX United Kingdom Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Distributor: B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom, www.diy.com SFD Limited Trade House, Mead Avenue, Yeovil, BA22 8RT United Kingdom...
