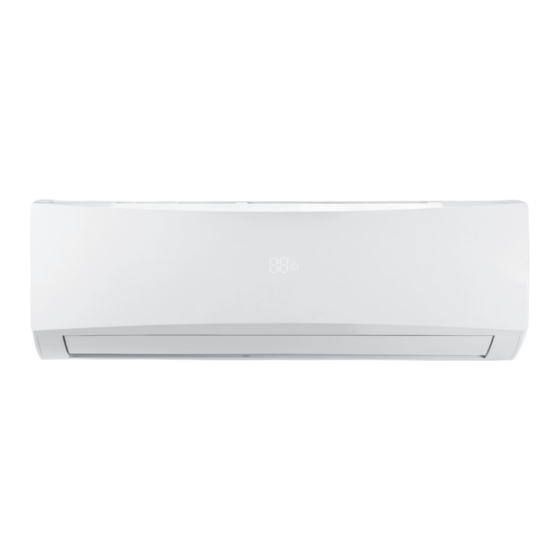

- Page 1 Owner’s Manual DUCTLESS SINGLE ZONE HEAT PUMP 38-21.5 SEER INVERTER 9 000 to 24 000 BTU/hr Models: UHD09KCH38S UHD12KCH31S UHD18KCH25S UHD24KCH22S Please read this owner’s manual carefully before operating the unit and keep it for future reference. INS528-201801-03...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Operation notices .................................3 Explanation of symbols ................................3 Precautions....................................4 Working temperature range ...............................6 Parts name ....................................7 Indoor unit screen display ..............................8 Remote control ..................................9 Buttons on remote control ..............................9 Icon identification on remote control display ......................Operation of remote control ............................ -
Page 3: Operation Notices
OPERATION NOTICES EXPLANATION OF SYMBOLS Indicates a hazardous situation that, if not avoided, DANGER will result in serious injury or death. Indicates a hazardous situation that, if not avoided, WARNING could result in serious injury or death. Indicates a hazardous situation that, if not avoided, CAUTION may result in minor or moderate injury. -
Page 4: Precautions
PRECAUTIONS WARNING Operation and Maintenance • This appliance can be used by people (including children of 8 years old and above) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, as long as they are under the supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 PRECAUTIONS WARNING Wiring • Installation must be performed by a qualified person. Otherwise, it may cause personal injury or damage. • Must follow the electric safety regulations when installing the unit. • According to the local safety regulations, use qualified power supply circuit and circuit breaker. •...
-
Page 6: Working Temperature Range
PRECAUTIONS WARNING Location • If you need to relocate the appliance to another place, only a qualified person can perform the work. Otherwise, it may cause personal injury or damage. • Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add a fence around the outdoor unit for safety purpose. -
Page 7: Parts Name
PARTS NAME Actual product may be different from below graphics, please refer to actual product NOTICE for reference purposes. Indoor unit Air inlet Panel Filter AUX button Horizontal louvre Air outlet Remote Control Outdoor unit Air inlet Connection wire Air outlet... -
Page 8: Indoor Unit Screen Display
INDOOR UNIT SCREEN DISPLAY Actual product may be different from below graphics, please refer to actual product NOTICE for reference purposes. Cooling Power Receiver indicator indicator window Display Heating Temperature Drying indicator indicator indicator... -
Page 9: Remote Control
REMOTE CONTROL BUTTONS ON REMOTE CONTROL Before After opening cover opening cover Button Function ON/OFF Turn on or turn off the unit Set fan speed MODE Set operation mode Set temperature and time TURBO Set turbo fan speed VERTICAL SWING Set fan oscillating vertical angle HORIZONTAL SWING Set fan oscillating horizontal angle... -
Page 10: Icon Identification On Remote Control Display
ICON IDENTIFICATION ON REMOTE CONTROL DISPLAY Set fan speed TURBO mode I FEEL function Quiet Send signal Operation mode Healthy mode AUTO mode Scavenging functions 8 °C(46 °F) heating function COOL mode Set temperature DRY mode WiFi WIFI function X-FAN function FAN mode Time setting HEAT mode... - Page 11 1. ON/OFF button Pushing this button allows to turn on or off the device. Working indicator " " on display of indoor unit will be green when device is turned on and will be red when it’s turned off. 2. FAN button Push this button to select the fan speed along this sequence: Automatic (AUTO), low ( ), medium-low (...
- Page 12 4. +/- button Push " + " or " - " button to decrease or increase temperature by one degree at a time. Temperature range is from 16 °C to 30 °C (61 °F to 86 °F). Maintain " + " or " - " button pushed for 2 seconds in order to change rapidly temperature. Once settings done, release button and temperature will be modified accordingly (temperature can’t be settled in AUTO mode).
- Page 13 NOTE: " " may not be available. When device receives this signal, it will function as per following position " ". 8. CLOCK button Press this button to set time. Icon " " on remote control will blink. Within the next 5 seconds, press button "...
- Page 14 12. I FEEL button Press this button to activate I FEEL function and the icon " " will appear on remote control. Once this function is settled, remote control sends the information about room temperature to the control panel and will adjust automatically. Press again this button to cancel I FEEL function and the icon disappears. Please put remote control near the user when this function is chosen.
- Page 15 15. QUIET button When QUIET function is on, the unit operates at very low speed to lower the sound level at its minimum. You can also chose the AUTO QUIET function. Under this function, in HEAT mode, the device will either run at medium or low (QUIET) speed according to the difference between ambient and set temperature.
-
Page 16: Special Functions
Initial temperature setting between 21 °C to 27 °C (69 °F to 81 °F): Temperature setting will be decreased of 1 °C (1 °F or 2 °F) every hour up to 2 °C (3 °F or 4 °F) and will be maintained for the duration of the SLEEP mode. -
Page 17: Replacement Of Batteries In Remote Control
REPLACING BATTERIES IN REMOTE CONTROL 1. Lightly press the " " and slide in the direction the arrow Reinstall Battery is pointing to remove the back cover of the remote control (as illustrated). Remove 2. Remove the old batteries (as illustrated). 3. -
Page 18: Maintenance
MAINTENANCE CLEANING AND MAINTENANCE WARNING • Turn off the unit and disconnect the power before cleaning to avoid electric shock. • Do not wash the unit with water to avoid electric shock. • Do not use volatile liquid to clean the unit. Cleaning the surface of indoor unit When the surface of indoor unit is dirty, it is recommended to use a softdry cloth or lightly moistened with water to wipe it. - Page 19 WARNING • The filter should be cleaned every three months. If the unit operates in a highly dusty environment, cleaning frequency should be increased. • After removing the filter, do not touch fins to avoid injury or damage the unit. •...
-
Page 20: Malfunction
MALFUNCTION MALFUNCTION ANALYSIS Please check below items before asking for servicing. If the malfunction still cannot be eliminated, please contact a qualified person. Phenomenon Items to check Solution Cut the power supply off and put the Is there severe interferences (such as power back after about 3 minutes, static electricity, unstable voltage)? and then turn on the unit again. - Page 21 Phenomenon Items to check Solution This is because indoor air is cooled rapidly. After a while, Mist is emitted from Are indoor temperature and indoor temperature and humidity indoor unit air outlet. humidity level high? level will decrease and mist will disappear.
-
Page 22: Error Codes
ERROR CODES When appliance status is abnormal, temperature indicator on indoor unit will blink and display corres- ponding error code. Please refer to list below for identification of error code. Indoor display Opposite indicator diagram is only for reference. Please refer to actual product for the actual indicator and position. -
Page 23: Preparation Before Installation
PREPARATION BEFORE INSTALLATION REQUIRED INSTALLATION CLEARANCE DISTANCES DIAGRAM Space to the wall Space to the wall At least 15 cm At least 15 cm Drainage pipe In the case of an installation where the recommended clearance of 30cm between the outdoor unit and the wall can not be obtained, it is possible to install the outdoor unit at a distance of 20cm. -
Page 24: Safety Precautions For Installing And Relocating The Unit
SAFETY PRECAUTIONS FOR INSTALLING AND RELOCATING THE UNIT To ensure safety, please be mindful of the following precautions: WARNING • When installing or relocating the unit, be sure to keep the refrigerant circuit free from air or substances other than the specified refrigerant. Any presence of air or other foreign substance in the refrigerant circuit will cause system pressure rise or compressor rupture, resulting in injury. -
Page 25: Tools Required For Installation
TOOLS REQUIRED FOR INSTALLATION • Level meter • Screwdrivers • Impact drill • Drill head • Pipe expander • Torque wrench • Open-end wrench • Pipe cutter • Leakage detector • Vacuum pump • Manometer • Multimeter • Inner hexagon spanner •... -
Page 26: Requirements For Electrical Connection
Outdoor unit • Select a location where the noise and outflow air emitted by the outdoor unit will not affect neighborhood. • The location should be well ventilated and dry, where the outdoor unit won’t be exposed directly to sunlight or strong wind. •... -
Page 27: Installation
INSTALLATION INSTALLATION OF INDOOR UNIT Step 1: Choosing installation location • Recommend the installation location to the customer and then confirm it with the customer. Step 2: Install wall-mounting frame • Hang the wall-mounting frame on the wall; adjust it in horizontal position with the level meter and then point out the screw fixing holes on the wall. - Page 28 Step 4: Outlet pipe • When direction of the pipe has been selected, • The pipe can be led out to the right, please cut off the corresponding hole on the rear right, left or rear left. bottom case. left right cut off left...
- Page 29 NOTICE drain hose • Add insulating pipe around the indoor drain hose in order to prevent condensation. • The plastic anchors are not provided. insulating pipe Step 7: Connect wire of indoor unit and repositioning of the ambient sensor screw panel •...
- Page 30 Notes: • All wires of indoor and outdoor unit should be connected by a qualified person. • If the length of power connection wire is insufficient, please contact your dealer for a new one. Do not extend the wire by yourself. •...
-
Page 31: Installation Of Outdoor Unit
INSTALLATION OF OUTDOOR UNIT Step 1: Fix the support of outdoor unit (select it according to the actual installation situation) • Select installation location according to the house structure. • Fix the support of outdoor unit on the selected location with expansion screws. - Page 32 Step 4: Connect indoor and outdoor pipes • Remove the screw on the right handle of outdoor unit and then remove the handle. screw handle • Remove the valve cap and align the pipe joint on the flared orifice of the pipe. liquid pipe liquid gas pipe...
- Page 33 Step 5: Wiring of the unit • Remove the wire clip; connect the power connection wire and signal control wire to the wiring terminal according to the color; fix them with screws. Outdoor unit connection 9K-12K: N(1) green green yellow- black(brown) white (blue) white...
-
Page 34: Vacuum Pumping
• The through-wall height of drain hose shouldn’t be higher than the outlet pipe hole of indoor unit. The drain hose can’t raise upwards. • For efficient drainage, the water outlet should not be submerged. The water outlet can’t be placed in the water. -
Page 35: Leakage Detection
Note: Using a micro gage, bring the vacuum value down to at least 500 microns and make sure the value remains stable for at least 10 minutes after the pump has stopped. If the value increase and doesn't stay below 500 microns, there is a leak in the system. LEAKAGE DETECTION •... -
Page 36: Operation Test
OPERATION TEST 1. Before operation test • Ensure that the customer is satisfied. • Inform the customers about the important notes of the appliance. 2. Operation test • Put through the power, press the ON/OFF button on the remote control to start the unit. •... -
Page 37: Other Considerations
OTHER CONSIDERATIONS CONFIGURATION OF CONNECTION PIPE • Standard length of connection pipe: 16 ft. (5 m), 25 ft. (7.5 m), 26 ft. (8 m). • Minimum length of connection pipe: 10 ft. (3 m). • Maximum length of connection pipe and maximum height difference: Maximum length Maximum height Cooling capacity... -
Page 38: Pipe Expanding Method
PIPE EXPANDING METHOD Notes: • Improper pipe expanding is the main cause of refrigerant leakage. • Use mechanical joints only. Do not weld on the pipes. • Please expand the pipe according to the following steps: 1. Cut the pipe 5.
