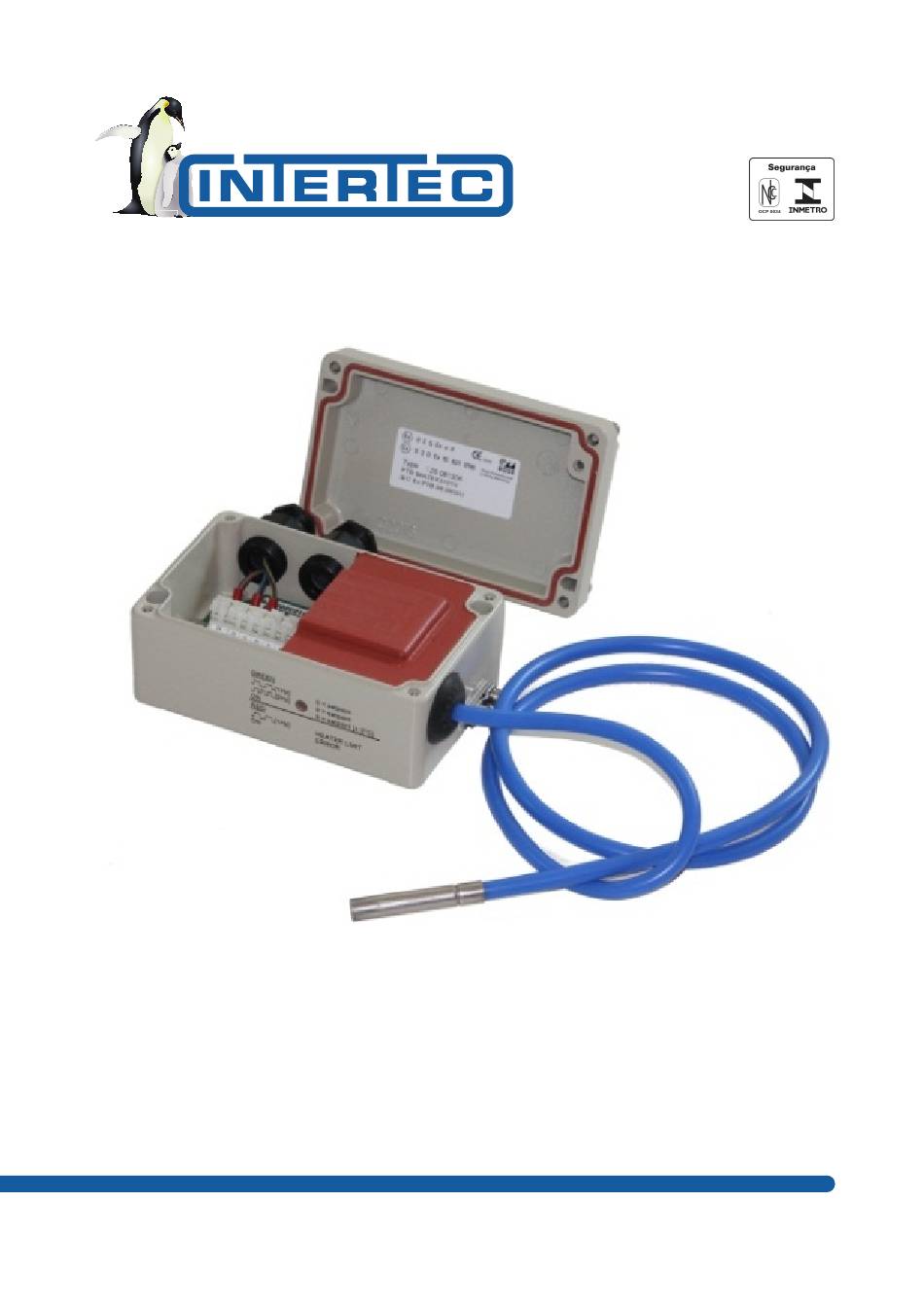

- Page 1 Operating Instructions Temperature Controller TC DB HOM148163467Ien-4 • 17/05/2023...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 Use................................... 3 2 Special conditions for safe use .......................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Installation Instructions............................ 4 5 Device Description .............................. 4 6 Technical Data ................................ 4 7 Installation ................................ -
Page 3: Use
The TC DB is delivered with the index "J" and can be Explanation of symbols for warnings switched together on site with the heating source to be and signal words regulated. -
Page 4: Installation Instructions
Operating Instructions Temperature Controller TC DB Permitted operating voltage max. 275 V AC NOTICE Rated current (in compliance max. 10 A with VDE 0298) NOTE Ambient temperature - 50 to + 80 °C It is essential to pay attention to this safety advice as you Operating temperature at - 25 to + 80 °C... -
Page 5: Connection
Operating Instructions Temperature Controller TC DB At higher temperatures, the controller must no longer be impinged with full power. Room Imax 120 V AC 230 V AC temperature Ground up to RS 485 TC DIGITAL +40°C 10 A 1200 W 2300 W +50°C... - Page 6 Operating Instructions Temperature Controller TC DB The local community authorities or specialist waste Troubleshooting disposal companies provide information In the case of failure of the temperature controller or environmentally friendly disposal. performance fluctuations, please check the operating conditions. See also: Installation [}Page 4].
- Page 7 Operating Instructions Temperature Controller TC DB INTERTEC-Hess GmbH Raffineriestr. 8 93333 Neustadt/Donau Germany Phone: +49 9445 9532-0 e-mail: info@intertec.info Website: www.intertec.info Warranty The legally defined warranties and warranty periods of 24 months are applicable to our scope of supply and services.
