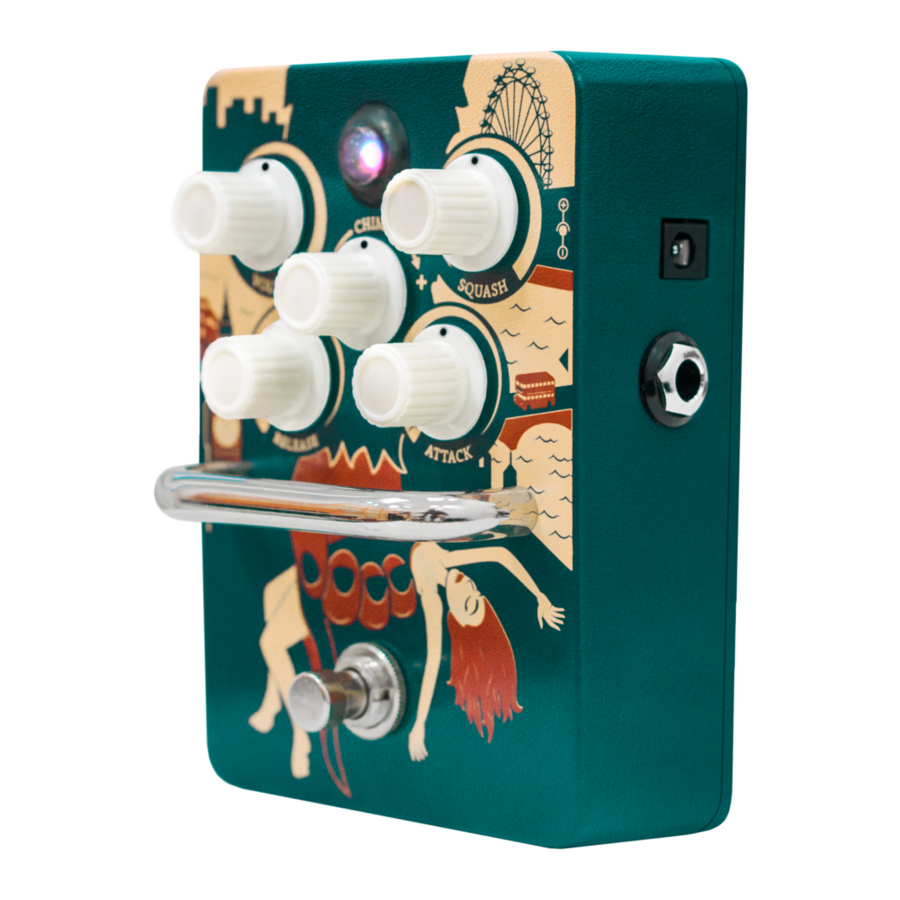

PARTS AND CONTROLS
| A | VOLUME | Output level |
| B | SQUASH | Controls the level of compression |
| C | RELEASE | Controls the compression release time from fast to slow |
| D | ATTACK | Controls the compression attack time from fast to slow |
| E | CHIME | Active treble control for boosting or cutting high frequencies |
| 1 | INPUT | Connecting a jack plug to the input switches on the power to the pedal |
| 2 | OUTPUT | All Orange pedals feature a highly transparent, low impedance buffered bypass output |
| 3 | BYPASS SWITCH | LED will illuminate when the pedal is engaged |
| 4 | 9-12V DC INPUT | Use only a DC adapter with a centre negative plug |
Specifications
Current draw: 35mA @ 9V
(W) 95 x (H) 65 x (D) 130mm / 462g exc. batt.
IN USE
The Kongpressor works best first in your signal chain*. It can help you fine tune or radically alter your dynamics and tone. Alternatively, try the Kongpressor after drive pedals or in your FX loop for a more subtle studio tone. In addition to controls for compression (Squash) and output (Volume), the Kongpressor features Attack and Release controls, giving you total authority over transients and bloom. The Chime knob boosts or cuts treble, for restoring brightness or getting that perfect smooth tone.
POWER
9V Battery Operation
To replace the battery, unfasten the four screws on the base and secure the new battery in the battery clip, making sure to observe the battery's polarity (+ / -).
DC Adaptor
The Kongpressor can be powered by 9 or 12V DC. Use a regulated AC-DC adaptor fitted with a centre negative plug (2.1mm). Running at 12V will increase the headroom and the output volume available.
*The Kongpressor has buffered bypass, so some vintage pedals, such as Wahs and Fuzzes will work best placed in front.
