Sony KP-61HS20 Dimension Manual

KP-61HS20/30
RM-Y908 REMOTE CONTROL
36 3/8"
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION
RECOMMEND THAT THE PRODUCT ITSELF
MEASUREMENTS.
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT :

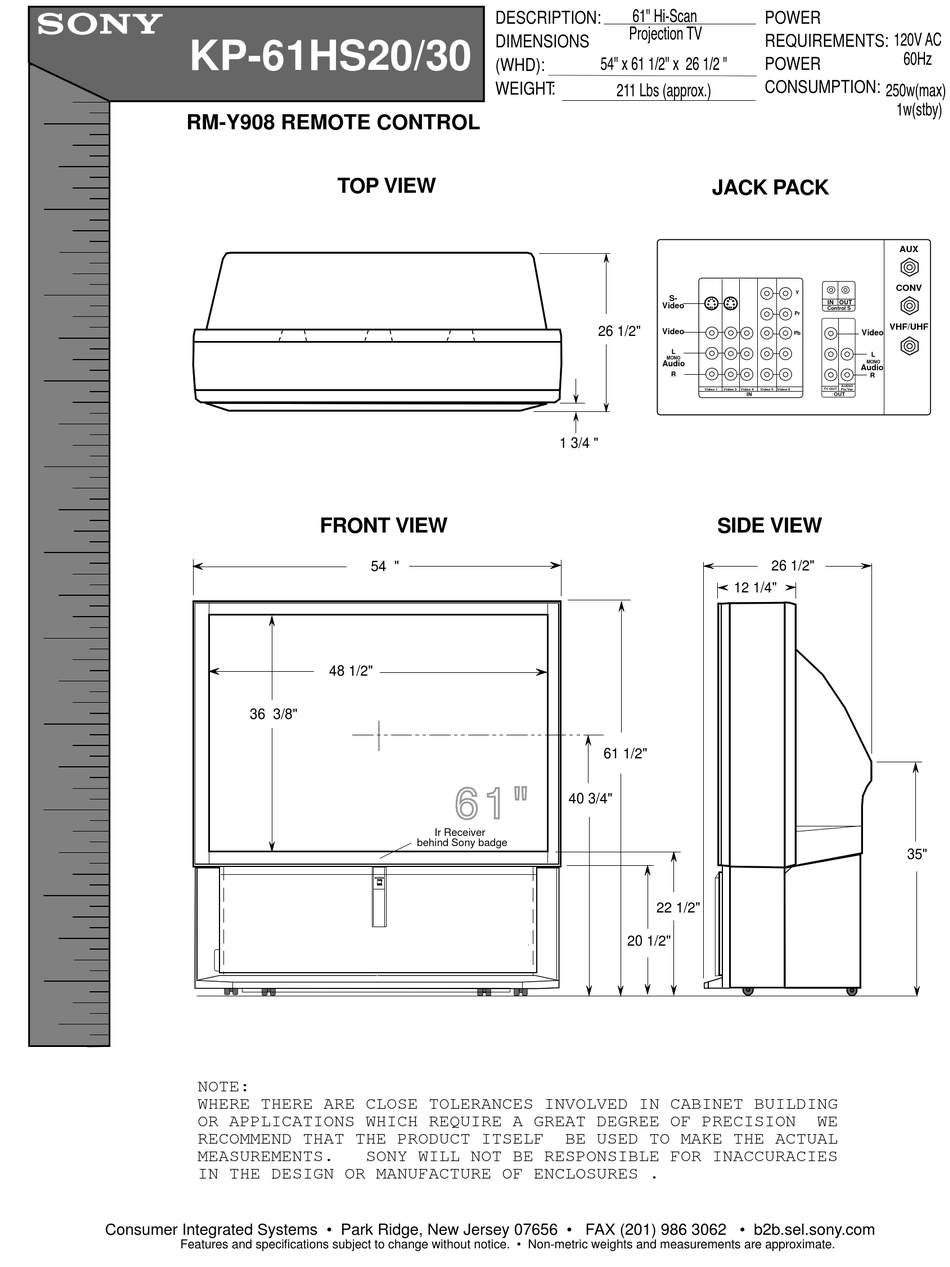

TOP VIEW

FRONT VIEW

54 "
48 1/2"
6 1 "
Ir Receiver
behind Sony badge
R
SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
61" Hi-Scan
Projection TV
54" x 61 1/2" x 26 1/2 "
211 Lbs (approx.)
JACK PACK
S-
Video
26 1/2"
Video
L
MONO
Audio
R
Video 1 Video 3
1 3/4 "

SIDE VIEW

12 1/4"
61 1/2"
40 3/4"
22 1/2"
20 1/2"
BE USED TO MAKE THE ACTUAL
POWER
120V AC
REQUIREMENTS:
60Hz
POWER
CONSUMPTION:
250w(max)
1w(stby)
AUX
CONV
Y
IN OUT
Control S
Pr
VHF/UHF
Video
Pb
L
MONO
Audio
R
AUDIO
Video 4 Video 5 Video 6 TV OUT Fix/Var
IN OUT
26 1/2"
35"
