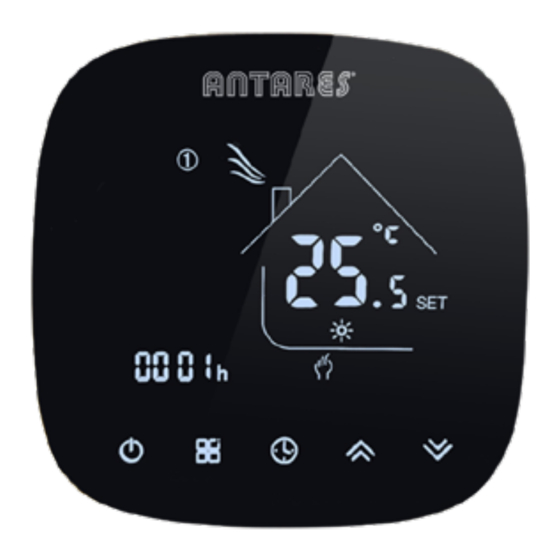

EVOLUTION WIFI THERMOSTAT
General:
T.425 series Wifi thermostat is controllable and programmable
via smartphone and via voice commands thanks to the support
of Google Home and / or Amazon Alexa. Allows programming
of the temperature in 6 time bands of the day, working days,
Saturdays and Sundays. Adjustment scale 5-35 °C. It can be
used in electrical underfloor wiring for heating as well as water
or gas boiler systems.
Features:
•
17 Mainstreaming Languages synchronize in APP (English,
Spanish, Russian, Hungarian, Turkey, Hebrew, German,
Italian, Japanese, French, Poland, simplified Chinese,
traditional Chinese, Holland, Portuguese, Vietnamese,
Arabic, Korean)
•
Snap-In Easy Installation
•
Fit for EU & Standard Junction Electric Box
•
Group Control in 1 App
•
Easily Work with Amazon Echo, Google Home, Tmall Genie,
IFTTT
WORKS WITH
WORKS WITH
Specification:
Power Supply
Current Load
Storage Temp.
Power Consumption
Housing Material
Wires on Terminals
Protection Class
ANTARES
®
for water & fire S.r.l. - Via degli Alpini, 144 - 55100 Lucca - Italia - Tel: 0583 473701 - Fax: 0583 494366 - ant3@antaresint.com - www.antaresint.com
WORKS WITH
95~240Vac, 50/60Hz
3A
-5 ~ 45 °C
< 1.5W
PC +ABS ( Fireproof)
IP20
Ordering Guide:
T.435 Water/Gas Boiler, 3A, 1 pair of Non-Voltage output
terminals
Sensor
Temperature Accuracy
Set-Point Range
Display Temp. Range
Timing Error
Installation Box
Wire 2 x 1.5 mm2 or 1 x 2.5 mm
Operating Buttons
T.425
EN
NTC3950, 10K
±0.5°C or ±1° F
5~35°C
5 ~ 99°C
< 1%
EU or Standard Electric
Box
2
Capacitive Touch
Buttons
Advertisement
Related Manuals for Antares T.425
Summary of Contents for Antares T.425
- Page 1 T.425 EVOLUTION WIFI THERMOSTAT General: T.425 series Wifi thermostat is controllable and programmable via smartphone and via voice commands thanks to the support of Google Home and / or Amazon Alexa. Allows programming of the temperature in 6 time bands of the day, working days, Saturdays and Sundays.
-
Page 2: Installation
T.425 Installation: WARNING: RISK OF ELECTRICAL SHOCK. Disconnect power supply before making electrical connection. Contact with components carrying hazardous voltage can cause electrical shock and may result in severe personal injury or death. ■ Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can’t get the system to turn ON in 5 minutes, you’ll know the power is OFF. -
Page 3: Operation
T.425 Operation: Buttons/Functions Operation Switch thermostat power On or Off Increase or decrease set-point or parameters Set the time and weekday: Touch this icon to set Minute/Hour and Weekday (1 = Monday, 2 = Tuesday etc.) Increase or decrease parameters by using the arrow icons. - Page 4 ■ Products are under Warranty for 2 full years (checking and repairing services) from the date of purchase of products that have not been damaged by humman error. ■ Service outwith the warranty period may incur an extra charge. ■ More details please contact ANTARES directly. ANTARES ®...
- Page 5 T.425 Wifi Connection Step. 1 - Download and Install APP* Use your smart phone or tablet PC to scan the QR code below or Search “SMART LIFE” in the App store/Google play to download and install APP. App Icon For IOS System For Android System Step.
- Page 6 T.425 On the App: ■ Press the “+” on the upper right corner of the page (see Fig 3.1) or “Add Device” to add “Thermostat”. ■ Click “Confirm indicator rapidly blink” (Fig 3.2) then select your network and back to your App to enter the password of your wireless router(Fig.3.3) and confirm.
- Page 7 T.425 fig 4.1 fig 4.2 fig 4.3 fig 4.4 Operation Icons on APP App Icons Functions Switch thermostat power On or Off Lock/Unlock Icon. Locked=Green, Unlocked=Grey Economy mode. The thermostat runs with the set-point configured as Parameter B in ISU Economy set-point=20°C in default.
- Page 8 T.425 Group Control and Info. Modify ■ Press the menu button as fig 6.1, then click “Create Group”. Select all the rooms you want and confirm.(fig 6.2 and fig 6.3), edit the group name or ungroup as fig 6.3 and fig 6.4.
- Page 9 The M or Increase/Decrease button doesn’t work ■ Check that thermostat is on. Notice: Antares for Water and Fire reserves all the right for the final explanation. The manual is subject to change without further notice. ANTARES ® for water & fire S.r.l. - Via degli Alpini, 144 - 55100 Lucca - Italia - Tel: 0583 473701 - Fax: 0583 494366 - ant3@antaresint.com - www.antaresint.com...
