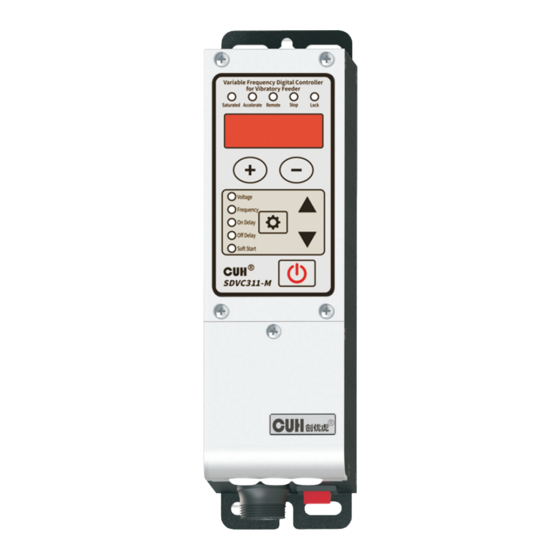

CUH SDVC311 Series User Manual

Variable frequency digital controller for vibratory feeder
Hide thumbs
Table of Contents

Advertisement

Quick Links

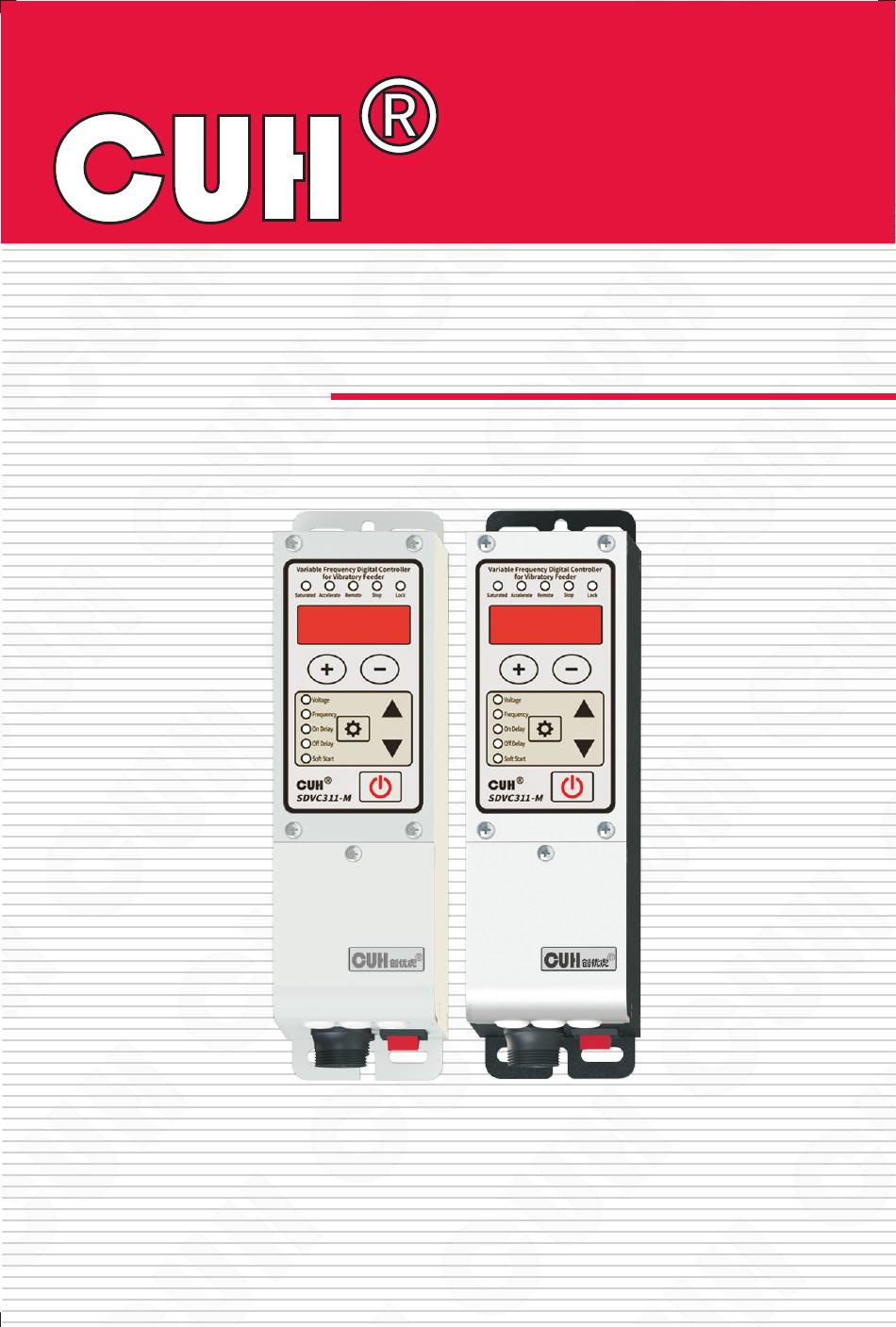

Variable Frequency Digital Controller
for Vibratory Feeder
SDVC311 Series
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDVC311 Series and is the answer not in the manual?

Questions and answers

Related Manuals for CUH SDVC311 Series

Summary of Contents for CUH SDVC311 Series

  • Page 1 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series User Manual...
  • Page 2 CUH enjoys and reserves all rights conferred by copyright law and other laws. Without the written consent of CUH, part or all of this user manual shall not be copied, translated, imitated or otherwise utilized.
  • Page 3 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Preface Thank you for choosing CUH SDVC311 series digital frequency modulation vibration feeding controller. (The controller for short in the following text). This series of controllers uses high-quality components and incorporates the latest electronic technology, and is carefully designed with high-performance digital signal processors.
  • Page 4 Never open the controller shell to avoid electric shock. Contact Essential CUH if the controller break down. Never try to repair the controller yourself which may caused void warranty. 2023-08 SDVC311SMSEN_1.03...
  • Page 5 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Operating and Storage Environment Inspection Before Using Every controller will go through rigorous quality inspection before delivery and is packed with crash-proof packaging, Please check the following items after unpacking 1. Whether the controller is damaged during transportation.
  • Page 6 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 2023-08 SDVC311SMSEN_1.03...

  • Page 7: Table Of Contents

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Contents Chapter Ⅰ Before Use ------------------------------------------------------------------------ 1.1 Check the Package Contents ----------------------------------------------------------1 1.2 Indicators, Buttons and External Parts Explanation ----------------------------- 1.3 Wiring Ports Explanation --------------------------------------------------------------- 1.4 Nameplate Explanation ----------------------------------------------------------------- Chapter Ⅱ Featured Functions ---------------------------------------------------------4 2.1 Product Introduction--------------------------------------------------------------------4...
  • Page 8 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series .4 Control Output -------------------------------------------------------------------------- 5.4.1 Wiring Method of Control Output---------------------------------------------21 5.4.2 Control Output Signal Source and Logic Diagram ------------------------22 5.4.3 Control Output Mode Description --------------------------------------------24 5.4.4 Control Output Logic Direction------------------------------------------------25 5.4.5 Main Output Signal Control Function----------------------------------------25 5.5 Maximum Output Voltage Limit ----------------------------------------------------26...

  • Page 9: Chapter Ⅰbefore Use

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Chapter ⅠBefore Use This chapter introduces product package contents, controller appearance description and controller nameplate information. 1.1 Check the Package Contents Before using, please check the integrity of the controller and accessories. If you find that the product is defective or damaged, missing accessories, etc., please...

  • Page 10: Indicators, Buttons And External Parts Explanation

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 1.2 Indicators, Buttons and External Parts Explanation Remote Speed Control Indicator: Stop Indicator: The indicator lights up when Acceleration Indicator: The indicator lights up as the Remote Speed Control signal is...

  • Page 11: Wiring Ports Explanation

    Max Output Current: 3.0A Max Output Power: 660VA Serial Number For use at altitude 2000m or lower Manufacturer Nanjing CUH Science & Technology Co.,Ltd and address Add.:Building 2, Xueyan Tech Park, Tuscity, No.9 Zhineng Rd, Jiangning, Nanjing, China Serial Number Description INS01...

  • Page 12: Chapter Ⅱ Featured Functions

    This chapter includes a brief introduction and main features of the controller. 2.1 Product Introduction SDVC311 Series Digital FM Vibration Feed Controller is a compact general-purpose FM output controller that provides unique performance through the use of the latest electronic technology and careful design. Its special features include: ●...

  • Page 13: Modern/Traditional Parameter Interface

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 2.3 Modern/Traditional Parameter Interface All new functions will be implemented in the modern parameter interface. In order to be compatible with the usage habits of regular customers, users can switch between the modern parameter interface and the traditional parameter interface through key board operation.

  • Page 14: Chapter Ⅲ Installation Guide

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Chapter Ⅲ Installation Guide This chapter introduces the necessary conditions for the use of the controller and how to install and connect it correctly. 3.1 Controller Usage Conditions The controller is powered by AC 110/220V, and the protective ground connection is made through the plug of the power cord.

  • Page 15: Install And Use

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 3.3 Install and Use Step One: Open the packing box and check the controller and all accessories. Step Two: Connect the wiring terminals of the Output Power Cable to the vibrator's electromagnetic coil.
  • Page 16 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Step Three: Connect the Connector of the Input Power Cable Variable Frequency Digital Controller for Vibratory Feeder to the Input Power Socket of the controller. Saturated Accelerate Remote Stop Lock Voltage...
  • Page 17 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Step Five: Variable Frequency Digital Controller for Vibratory Feeder Turn on the power switch of the Remote Stop Saturated Accelerate Lock controller, and the voltage "U 150 " Output Voltage should be displayed and Channel A lights up and the vibratory feeder should start vibrating.
  • Page 18 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Step Seven: Variable Frequency Digital Controller for Vibratory Feeder Long press to exit the output Saturated Accelerate Remote Stop Lock U means frequency "E" and returns to the Output Voltage voltage adjustment parameter,...

  • Page 19: Chapter Ⅳ Basic Function Description

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Chapter Ⅳ Basic Function Description This chapter introduces basic parameter settings in the modern parameter interface (default). 4.1 Output Voltage Output voltage rectified mean value of the controller can be set directly and digitally through the keypad.

  • Page 20: Output Frequency

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 4.2 Output Frequency The controller adopts direct digital frequency synthesis technology (DDS), which has very high frequency accuracy and stability, and does not change with time and temperature. Press and hold for 2 seconds to...

  • Page 21: On/Off Delay Of Intelligent Photoelectric Sensor

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 4.3 On/Off Delay of Intelligent Photoelectric Sensor When using a sensors or PLC to turn on or turn off the controller's main output, the action can be delayed for a period of time after the control signal is given or restored.

  • Page 22: Soft Startup Time

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 4.4 Soft Startup Time In order to avoid sudden shock to the vibrator coil, the controller can gradually increase output voltage from 0 to the preset value when startup Soft Startup Time ( t ): The period of time it takes for the controller to smoothly rise its output voltage from 0 to the preset value when startup.
  • Page 23 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Press and hold for 2 seconds to enter the basic parameter Variable Frequency Digital Controller for Vibratory Feeder interface. means Saturated Accelerate Remote Stop Lock Breaking cycles/ Soft Shutdown Press ▲ or ▼ to switch to Breaking cycles/Soft Shutdown parameter "...

  • Page 24: Keyboard Lock

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 4.6 Keyboard Lock When the parameters of the controller are set, the keyboard lock function can lock all buttons on the panel to avoid misoperation. Even if it is turned off and then turned on again, the state of the keyboard lock remains the state it was in the last time it was turned off.

  • Page 25: Chapter Ⅴ Advanced Function Description

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Chapter Ⅴ Advanced Function Description This chapter introduces advanced parameter settings in the modern parameter interface (default). 5.1 Remote Speed Control The controller supports external analog signal to control output voltage, analog signal supports potentiometer, 1~5V voltage, 4~20mA current.
  • Page 26 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 1~5V voltage control connection 1~5V Speed Ctrl Photosensor Sensor Ctrl Out 4~20mA current control connection Speed Ctrl 4~20mA Photosensor Sensor Ctrl Out 2023-08 SDVC311SMSEN_1.03...

  • Page 27: Intelligent Photoelectric Sensing

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.2 Intelligent Photoelectric Sensing The intelligent photoelectric port of this controller supports photoelectric through- beam or reflection sensors composed of light-emitting diodes and phototransistors, and can also be set to support NPN or PNP switch sensors. The specific wiring diagram is as follows：...

  • Page 28: Switch Sensor

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.3 Switch Sensor Switch Sensor port can support NPN, PNP, Ut1, Ut0 modes. The Ut1 mode is a single scan, that is, before the sensor signal is invalid, the high and low levels are changed to detect whether the port is valid. After finding a valid signal, the port sensor type is determined and no longer scans.

  • Page 29: Control Output

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.4 Control Output The control output port can support NPN output, PNP output and push-pull output. therein: The NPN output is valid as a low level, and the output is invalid as a high-impedance state;...

  • Page 30: Control Output Signal Source And Logic Diagram

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.4.2 Control Output Signal Source and Logic Diagram The control of the main output and the control output is controlled by the result of the logical relationship between the two signal sources.
  • Page 31 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Control Output Logic Diagram Control output signal source 1 Delay mode Control output Hold mode Push Pull Control output Control output Control output type on delay mode Control output off delay...

  • Page 32: Control Output Mode Description

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.4.3 Control Output Mode Description Customers can choose 2 control output modes: delay mode, hold mode. Delay mode: It means that after the controller output drive signal changes from valid to invalid, the control output turns off after a period of off delay time.

  • Page 33: Control Output Logic Direction

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.4.4 Control Output Logic Direction By setting the advanced parameter " d", customers can choose 4 control output logic direction: Same Phase ___: Indicates that the valid state of the output signal does not change.

  • Page 34: Maximum Output Voltage Limit

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.5 Maximum Output Voltage Limit The controller can set the maximum output voltage limit parameter h, which can prevent the user from misoperation to output excessive voltage and damage the vibration equipment.

  • Page 35: Acceleration Index

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.6 Acceleration Index The controller can achieve a certain degree of acceleration effect by sacrificing the sinusoidal characteristics of the output waveform. When entering the acceleration state, the output current waveform changes from a sine wave to a triangular wave, and the acceleration indicator lights up.

  • Page 36: Waveform Index

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.7 Waveform Index The controller can continuously balance the performance of the highest efficiency- maximum power and minimum noise to meet the higher demands of customers. This can be achieved by setting the parameter value of the advanced parameter "waveform index r".

  • Page 37: Parameter Password Lock Function

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.8 Parameter Password Lock Function The controller can lock key parameters to prevent users from misoperation. The parameters marked with "*" in the parameter table can be locked with the parameter password lock.

  • Page 38: Restore Default Settings

    " " , indicating that the SDVC311-M controller has been restored. Release , after the controller Variable Frequency Digital Controller for Vibratory Feeder displays "CUH", then enter the Saturated Accelerate Remote Stop Lock output voltage adjustment state "U". Restore By this time, all parameters have...

  • Page 39: Parameter Monitoring Function

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 5.10 Parameter Monitoring Function The controller has specially designed a set of monitoring parameters to monitor the status of the controller. Voltage Frequency On Delay Long press and ▼ Off Delay...

  • Page 40: Chapter Ⅵ Technical Specifications

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Chapter Ⅵ Technical Specifications 6.1 Dimensions R2.5 94.5 R2.1 R4.0 Dimensions range tolerance Dimensions (unit: mm) ±0.05 3~10 ±0.1 10~30 ±0.15 30~80 ±0.2 80~180 ±0.3 >180 ±0.5 This tolerance table is applicable to all products in this series.

  • Page 41: Technical Specifications

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 6.2 Technical Specifications Item Typical Unit Note Input Voltage AC RMS Lower than 150% of —— Adjustable Output Voltage Range Input Voltage Voltage Adjustment Accuracy ΔVout/ Vin Δ —— Voltage Regulation Accuracy SDVC311-S ——...

  • Page 42: Reference Standard

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 6.3 Reference Standard Absolute Parameters: Above the standard will damage the controller, obey it strictly. Standard Item GB Standard IEC Standard Grade Note Requirement Contact ±8 kV Discharge Electrostatic GB/T 17626.2-2006...

  • Page 43: Chapter Ⅶ Appendix

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Chapter Ⅶ Appendix 7.1 Parameter Table Definition Symbol Range Default Common 0~260 V Output Voltage parameter 5.0~400.0 Hz 50.0 Output Frequency On Delay of the Intelligent 0.0~99.9 s Photoelectric Sensor Off Delay of the Intelligent Basic 0.0~99.9 s...
  • Page 44 Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Definition Symbol Range Default 0.0~99.9 s On Delay of Main output 0.0~99.9 s Off Delay of Main output , HLd Output Mode of Main output (Delay Mode) (Hold Mode) (Same phase)

  • Page 45: Input And Output Circuit Diagrams

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 7.2 Input and Output Circuit Diagrams 5V Output 10KΩ Input 100KΩ 10uF 249Ω RGND Remote Speed Control Port A 300Ω P +5V 10KΩ 10KΩ Photosensor or NPN: +5V PNP: 0V Intelligent Photosensor Port B 24V Output 2.4KΩ...

  • Page 46: Troubleshooting Suggestions And Error Explanations

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series 7.3 Troubleshooting Suggestions and Error Explanations Error Code Definition Troubleshooting Methods Make sure the power outlet is live No display after Make sure the Input power Cable is reliably connected to the...

  • Page 47: Chapter Ⅷ Product Warranty Information

    Variable Frequency Digital Controller for Vibratory Feeder SDVC311 Series Chapter Ⅷ Product Warranty Information 8.1 Warranty Period The warranty period provided by the company for this product is one year from the date of delivery of the product to the location designated by the purchaser.
  • Page 48 Nanjing CUH Science & Technology Co.,Ltd https://en.cuhnj.com Tel.:+86-25-84730411 / 84730415 / 84730416 Fax:+86-25-84730426 E-mail:sales@cuhnj.com Add.:Building 2, Xueyan Tech Park, Tuscity, No.9 Zhineng Rd, Jiangning, Nanjing, China...
