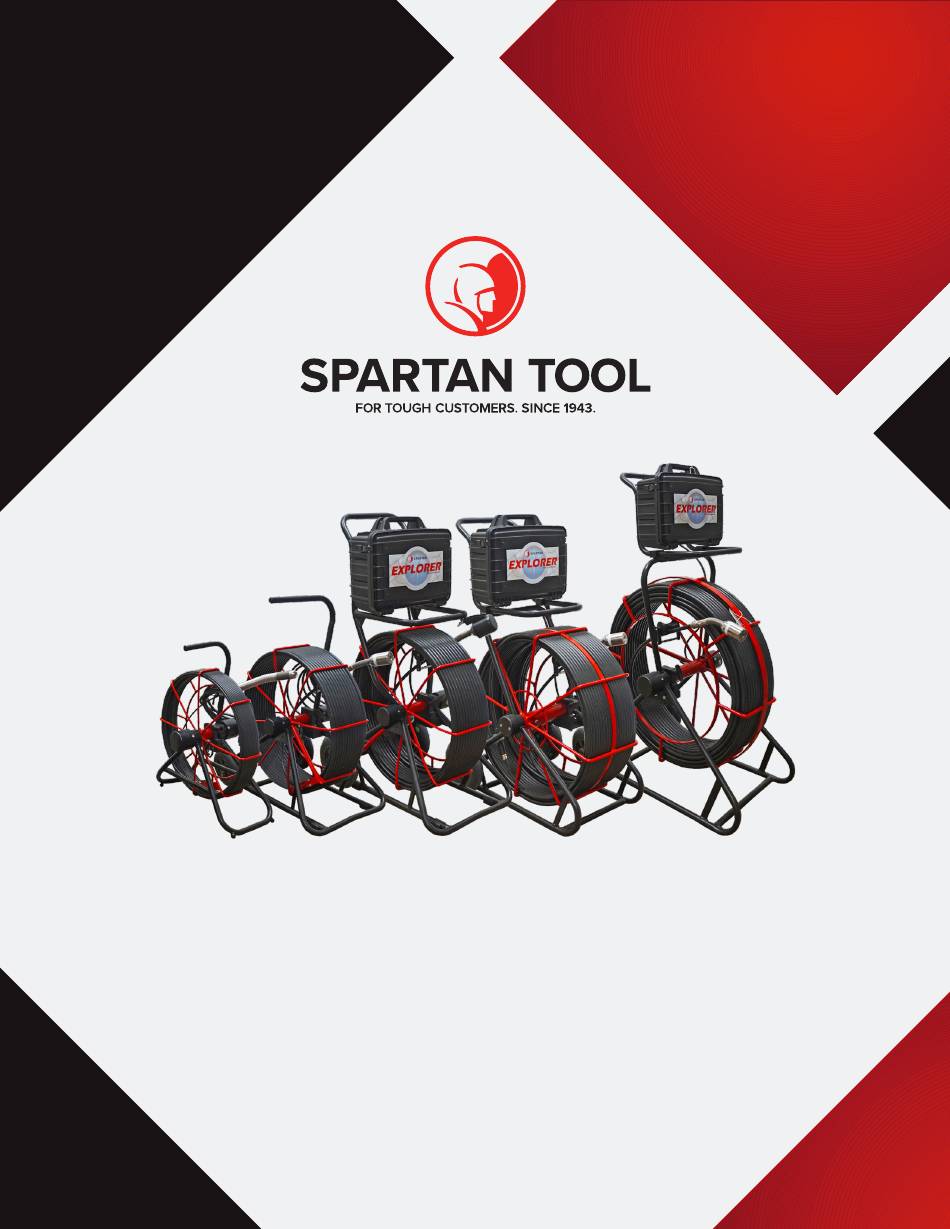

- Page 1 PRODUCT MANUAL Explorer Video Inspection System Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 order by phone 800.435.3866 order online SpartanTool.com © 2023 Spartan Tool LLC...
-
Page 2: Table Of Contents
Contents WARNINGS ......................4 FEATURES . - Page 3 Notes...
-
Page 4: Warnings
Warnings Spartan Tool has taken care to provide all necessary information in this manual for the safe operation, maintenance and disposal of the equipment . However, a risk assessment should be performed prior to commencing work as it may highlight additional safety issues specific to the application . -
Page 5: Features
Features SCREEN AND SOFTWARE • 10 .4" super-bright sunlight readable LCD display with auto brightness • Embedded industry standard WinCan software included—no more double inputting, saving you time and money • Other reporting software includes basic text overlay • Future-proof—software updates via the internet •... -
Page 6: Reel Options
Reel Options ALL REELS • 800 x 600 resolution • Innovative easy-mount camera head to reel interface • CCD color camera • Super-bright LED illumination • Super-low LUX sensitivity • Built-in 512 Hz sonde locator (Not included with model L130) •... - Page 7 Reel Options L200 SEWER CAMERA REEL L330 SEWER CAMERA REEL • 200' reel length • 330' reel length • 44mm camera head included • 44mm camera head included XL400 SEWER CAMERA REEL • 400' reel length • 44mm camera head included...
-
Page 8: Keyboard Layout
Keyboard Layout Help key 11 . Lamp Off key Mina Survey key 12 . Power button WinCan Survey key 13 . Lamp - key Overlay key 14 . Lamp + key Overlay Style key 15 . Video Control key Overlay Size key 16 . -
Page 9: Physical Components
Physical Components Screen Input/Output Keyboard Port (covered) Connection Cord INPUT/OUTPUT PORT USB Ports Audio Out Audio In Covered Uncovered... - Page 10 Physical Components Explorer Handle Indicator LED 7 Pin XLR Camera Socket 4 Pin XLR Camera Socket VGA Port (15-way D-Sub Type)
-
Page 11: Power And Grounding
Read the product manual thoroughly before using any Spartan Tool product . Sewer and drain cleaning can be dangerous if proper procedures ae not followed . Know the proper operation, correct applications, and the limitations of all Spartan Tool products before use . GROUNDING INSTRUCTIONS Before charing your Spartan Explorer, make sure it is properly grounded, using a three-hole electrical outlet . - Page 12 . By doing so you have cut off your protection from shock . OUTDOOR EXTENSION CORDS When Spartan Tool equipment is used outdoors, use an extension cord intended for use outdoors and so marked . AVOID ELECTRICAL CORD ABUSE •...
-
Page 13: Operating Instructions
Operating Instructions HOW TO CONNECT THE CAMERA AND CHARGER TO POWER SUPPLY CAUTION: Only use the power supply and connecting cords supplied with this system . Using any other power supply or connecting cord may cause damage to the unit and will void any warranty . - Page 14 Operating Instructions POWERING ON Unlatch and open unit . Press and hold the power button for 2 seconds . The unit will start and progress will be shown on the screen . When the unit is ready, press the enter key to start the video display . POWERING OFF Before powering off, ensure that all video recording is completed and the files have been saved .
- Page 15 Operating Instructions HOW TO USE THE COILER CAUTION: The coiler and camera assembly used with the Explorer unit are heavy . Observe safe lifting procedures when lifting or moving any components of this system . To set the position of the footage readout on screen, press the footage counter key . Use the arrow keys to move the footage eadout to the required position on screen .
- Page 16 Operating Instructions HOW TO ACTIVATE THE SONDE • Press the Sonde on/off button at the hub of the coiler . • When the button is illuminated, the sonde is on . NOTE: The M130 coiler does not have an on/off for the sonde; it is always activated.
- Page 17 Operating Instructions HOW TO ADJUST THE CAMERA LIGHT WARNING: The camera LEDs are very bright . Do not look directly at LEDs or point them at other people when turned on . To make the light the brighter, press the Lamp + button . To make the light dimmer, press the Lamp - button .
- Page 18 Operating Instructions HOW TO RECORD A MINASURVEY Press the Mina key and select New Project (providing an empty site info form) or Existing Project (providing the last set of site info pre-loaded) . Enter the necessary information concerning the survey site which will later be displayed on the video recording and pdf survey report .
- Page 19 Operating Instructions HOW TO ADD OBSERVATIONS TO A WINCAN SURVEY While recording a WinCan survey, observations can be added . Pressing the Snapshot button will automatically add a "General Photograph" observation to the survey . If the observation code is known, press the WinCan key and select "Add by Code" and then enter the desired code . On a valid code being entered, the entry parameter entry menu will open .
-
Page 20: Operating Tips
Operating Tips • If you get stuck in a line, try to rotate the push-cable by hand, first clockwise, then counter-clockwise . • The use of a lubricating agent on the push-cable itself can often increase the distance you are able to push the unit . Be certain to abide by all regulations regarding the use of oils (such as vegetable or mineral oils) or other lubricating additives down drain lines . -
Page 21: Maintenance
Maintenance The Spartan Explorer is designed for easy maintenance and trouble-free operation. Regular maintenance will prolong the life of the product. Follow these simple instructions: • Do not store outdoors and do not allow the unit to sit for extended periods in a hot environment, such as a truck or automobile in bright sunlight . -
Page 22: Survey Overlays
Survey Overlays When recording within a survey, text and graphics can be placed on top of the footage. TEXT • To place text, press the Overlay key (box with a pencil) . Words can then be typed out . • To change the style of the text, press the Overlay Style key, which will cycle through the available font colors . •... -
Page 23: Report Viewer (File Manager)
Report Viewer (File Manager) To view recorded videos and images, press the Report Viewer button . To navigate, press OK or the right arrow key to step into a folder, or the left arrow key to step up a level . Choose between files/ folders with the up and down arrow keys . -
Page 24: Settings
Settings Pressing the Settings button will bring up several options to customize the Explorer. Unless otherwise specified, to change these settings, navigate to the proper page, press the down arrow to select, and press the displayed letter to change a given setting. When done, press "Save Settings, "... -
Page 25: Wincan
Settings WINCAN • Change the specification, text color, and time text should remain on screen . Also enable or disable stamp codes to video . The system must be rebooted before the changes will take effect . • The WinCan Catalog Access Library version is also shown . STATUS •... -
Page 26: Warranty
Spartan Tool warrants its equipment to be free from defects in material and workmanship for one year from the date of purchase . To obtain warranty service, a purchaser should notify Spartan Tool in writing, at the address provided below, within the warranty period, and Spartan Tool will direct where to take or send the equipment for service . - Page 27 CONTACT US Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 800 .435 .3866 SpartanTool.com 75730010MAN-1810...
