Shanghai Berry Electronic Tech Co., Ltd.
Product Description
Pulse Oximeter is an important and common device to check oxygen saturation (SpO
rate. It's
a small, compact, simple, reliable and durable physiological mnitoring device. Include the
mainboard, OLED display and
Intended Use
Operation Manual
Release date: 07/28/2020 Version: 3.2
dry batteries.

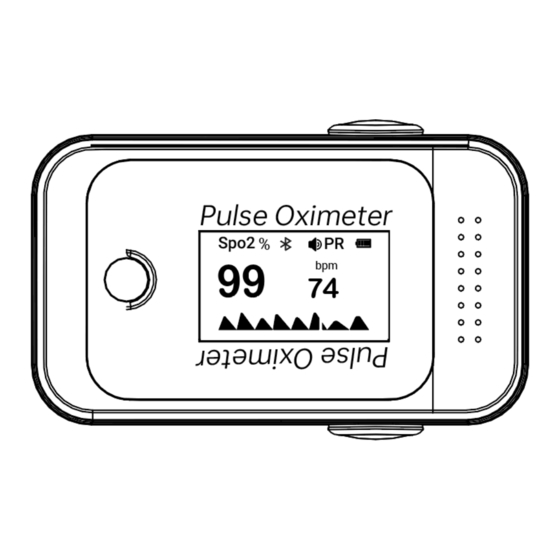

Pulse Oximeter
BM1000B/BM1000D
) and pulse
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Berry BM1000B
Summary of Contents for Berry BM1000B
- Page 1 Operation Manual Pulse Oximeter BM1000B/BM1000D Shanghai Berry Electronic Tech Co., Ltd. Release date: 07/28/2020 Version: 3.2 Product Description Pulse Oximeter is an important and common device to check oxygen saturation (SpO ) and pulse rate. It’s a small, compact, simple, reliable and durable physiological mnitoring device. Include the mainboard, OLED display and dry batteries.
-
Page 2: Measurement Principle
The pulse oximeter is reuse device and intended use for spot checking of the pulse oxygen saturation and pulse rate for adult in clinic environment. This medical device can be reused. Not for continuously monitoring. Applicable people and scope It is suitable for monitoring adults. It is used in clinic section office, out-patient department, sickroom. - Page 3 anesthetics, explosive substances, vapors or liquids. ⚫ Make sure not to use the pulse oximeter during MRI (magnetic resonance imaging) scanning or CT (Computed Tomography) environment because induced current could potentially cause burns. ⚫ The pulse oximeter is without alarm function. Continuous monitoring for a long time is not suitable.
-
Page 4: Product Feature
avoid strangulation due to Lanyard. ⚫ Connect accessory carefully to avoid the patient being twined or strangulated. Product Feature ◆ Simple and convenient usage of product, simple one-touch operation. ◆ Small volume, light weight, convenient to carry. ◆ Lower consumption, original two AAA batteries can continuously work for 15 hours. ◆... - Page 5 first finger, middle finger or ring finger when doing test. Don’t shank the finger and keep the testee at case during the process. The readings will be displayed on the OLED screen a moment later as shown in Figure 5. ⚫...
-
Page 6: Function Description
which may cause incorrect results. ⚫ The measurement part should be chosen well perfusion and be able to fully cover the test window of the sensor. Please clean the measurement part before place the pulse oximeter, and ensure drying. ⚫ Cover the sensor with opaque material under the condition of strong light. -
Page 7: Cleaning And Disinfection
Figure 8 Figure 9 Bluetooth Communication Function (optional) BM1000B pulse oximeter is with the Bluetooth communication function. It can send data to intelligent terminal and computer (Related software has been installed.) with communication function. NOTE: The usage of Bluetooth communication software which is installed in the computer or intelligent terminal is written into the “APP operation guide”. -
Page 8: Packing List
⚫ Never immerse or soak the pulse oximeter. ⚫ We recommend cleaning and disinfecting the product when necessary or when used in different patients to avoid damage to the product. ⚫ Never use cleaning agents/disinfectants other than the recommended. ⚫ Never permit high-pressure and high-temperature disinfection of the device. -
Page 9: Troubleshooting
5. Product specifications: Size: 58 (H) × 34 (W) × 30(D) mm Weight: 50g (include two AAA batteries) 6. Environment requirements: NOTE： ⚫ When the environment temperature is 20℃, the time required for Pulse Oximeter to warm from the minimum storage temperature between uses until it is ready for intended use is 30 to 60 minutes. -
Page 10: Symbol Meaning
Type Number. The European Union authorized. The product is protected against harmful effects of dripping water per IEC IP22 60529. Shanghai Berry Electronic Tech Co., Ltd. Unit 104, 1 Floor, 7 Building, No.1188 Lianhang Road, Minhang District, Shanghai, China 201112... - Page 11 Prolinx GmbH Brehmstr. 56, 40239, Duesseldorf Germany If you need additional information, please contact with us.
-
Page 12: Appendix A Emc Declaration
Appendix A EMC Declaration Table 1 – E limits per environment MISSION OME HEALTHCARE Phenomenon ENVIRONMENT Conducted and radiated RF Group 1 Class B EMISSIONS Harmonic distortion See IEC 61000-3-2 Voltage fluctuations See IEC 61000-3-3 and flicker Table 2 – * E NCLOSURE PORT Basic EMC MMUNITY TEST LEVELS... - Page 13 Table 4– Test specifications for ENCLOSURE PORT IMMUNITY RF wireless communications equipment Test TEST LEVEL Band Distance frequency Modulation MMUNITY (MHz) (MHz) (V/m) Pulse 380 –390 modulation 18 Hz 430 – 470 ± 5 kHz deviation 1 kHz sine Pulse 704 –...
