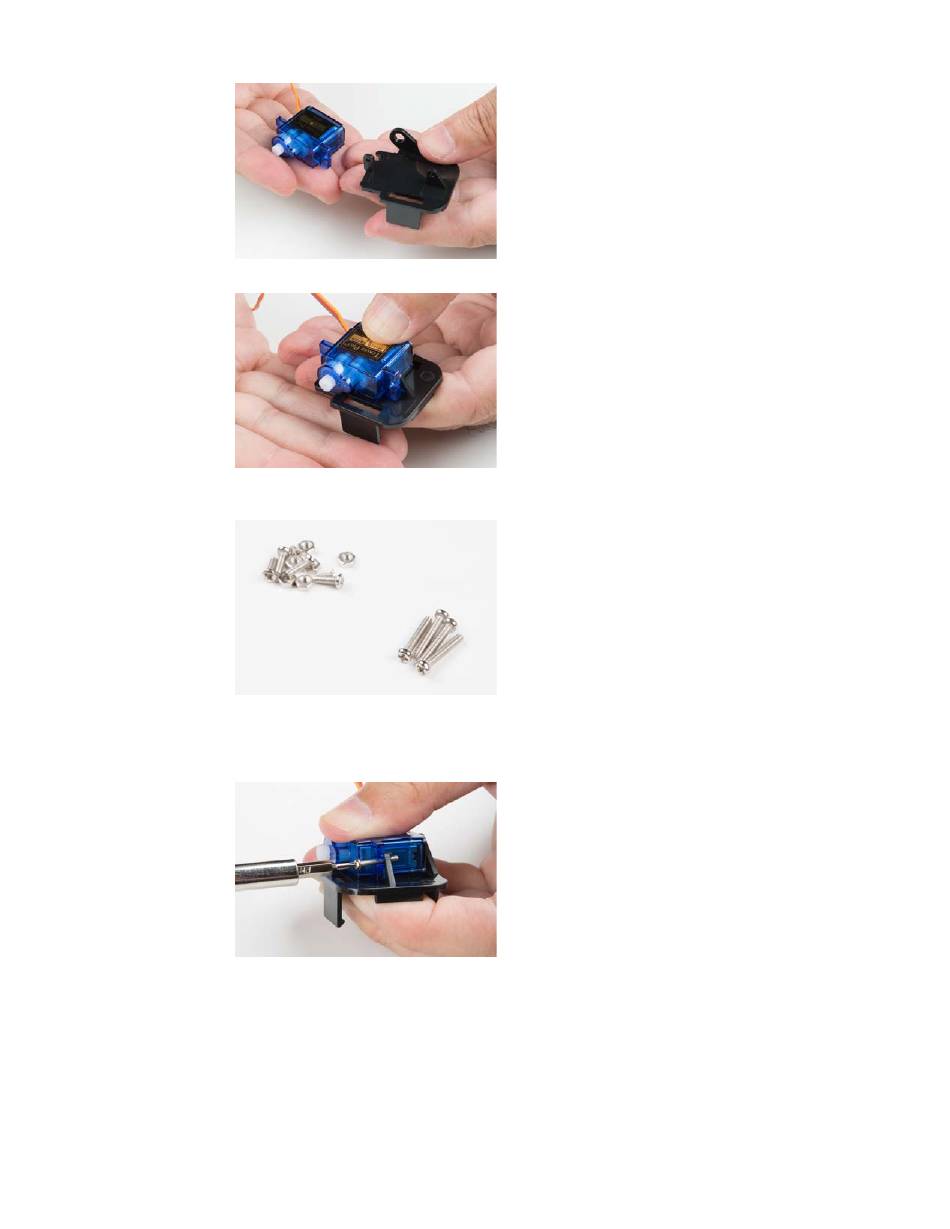

Here's a picture of the two pieces assembled to one another.
Now, find the longest machine screws in the baggie, as shown below. Once
again, you'll find that there are more of these than you need.
Thread these screws through the stand off wings on the servo motor and
into the last piece of the mechanism. You can use nuts for these if you like,
but I've found it to be unnecessary as they thread into the mechanism quite
snugly without the nut.
Now connect the two major pieces of the assembly together. The image
below shows the orientation of these two parts.
