Summary of Contents for HANNspree HL400UPB

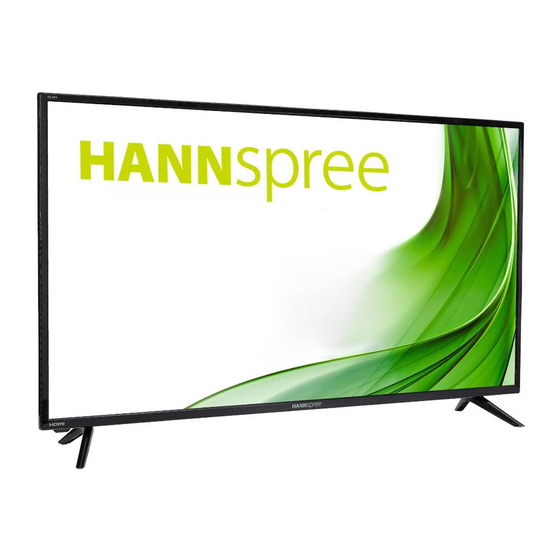

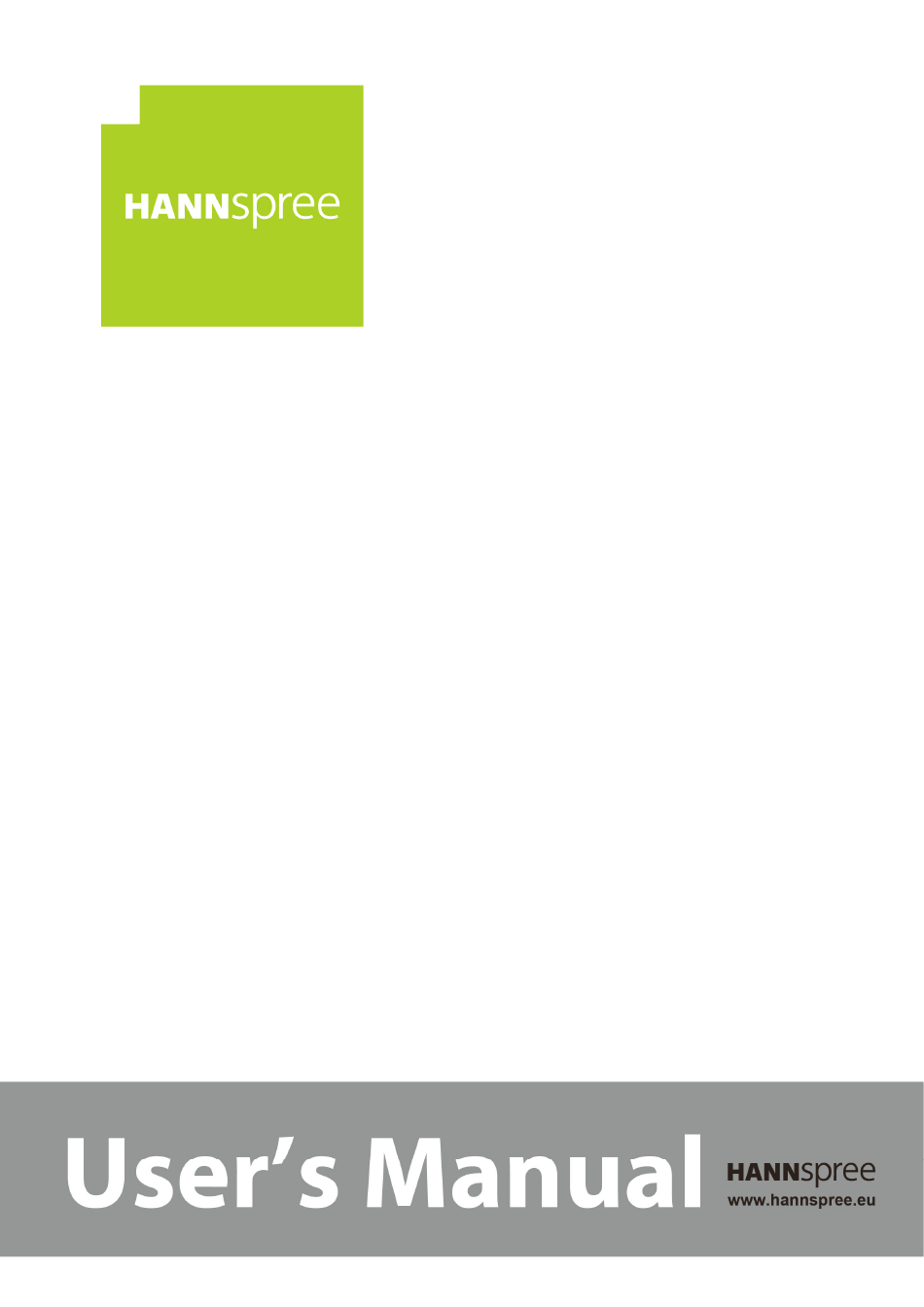

- Page 1 HL400UPB (HSG1467) LCD Monitor...
- Page 2 Socket-outlet shall be near the equipment and shall be accessible. Trademark Notice: HANNspree products incorporate High-Definition Multimedia Interface (HDMI™) technology. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and...
- Page 3 User’s Manual RECYCLING INFORMATION We, at HANNspree care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels.
-
Page 4: Table Of Contents
User’s Manual TABLE OF CONTENTS SAFETY NOTICE ....................5 PRECAUTIONS....................5 SPECIAL NOTES ON LCD MONITORS ............6 BEFORE YOU OPERATE THE MONITOR ............7 FEATURES......................7 CHECKING THE CONTENTS OF THE PACKAGE ........7 INSTALLATION INSTRUCTIONS ..............8 POWER....................... 8 SETTING THE MONITOR ON THE WALL .......... -
Page 5: Safety Notice
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 6: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. -
Page 7: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 100,33cm / 39.5” Wide Screen TFT Color LCD Monitor Crisp, Clear Display Ergonomic Design Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: LCD Monitor Display Base... -
Page 8: Installation Instructions
User’s Manual INSTALLATION INSTRUCTIONS Carefully place the Monitor face down on a soft and flat surface (blanket, foam, cloth, etc) to prevent any damage to the Monitor. INSTALL & REMOVE Figure.1. Installing and Removing the Base POWER POWER SOURCE: 1. Make sure that the power cord is the correct type required in your area. 2. -
Page 9: Setting The Monitor On The Wall
*Installing the LCD Monitor requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. HANNspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a... -
Page 10: Functions Of The Remote Control
User’s Manual FUNCTIONS OF THE REMOTE CONTROL • Remote control description Turn the monitor ON and OFF. Mute. No Function. Switches back and forth between the current and previous channels. P. MODE Select a picture mode for different picture qualities S.MODE No Function. -
Page 11: Making Connections
User’s Manual MAKING CONNECTIONS CONNECTING TO A PC You can setup your monitor with the below suggested connections. Ensure your monitor is off during this process. 1. Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer’s HDMI port. -
Page 12: Operating Instructions
User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 3). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 13: Front Panel Control
User’s Manual FRONT PANEL CONTROL Power Button: Press this button to switch ON/OFF of monitor’s power. Power Indicator: Blue — Power On mode. — Power Saving mode. MENU / ENTER: Turn the OSD menu on/off or enter to the previous menu. Adjust ▲▼: ... -
Page 14: How To Adjust A Settings
User’s Manual HOW TO ADJUST A SETTINGS PICTURE Adjust the overall effect of images :Standard , Dynamic , Movie , PICTURE MODE User. Adjust the overall layering of images: increase the analog value CONTRAST to improve the contrast and decrease the analog value to reduce the contrast(0-100). - Page 15 User’s Manual the balance is set to 0 . Select the 「AUTO VOLUME」 option to switch the function On AUTO VOLUME or Off. Select the 「SURROUND SOUND」 option to switch the function SURROUND SOUND Surround or Off. Select the 「SPDIF MODE」 option to switch the function: PCM , SPDIF MODE Off, Auto .
- Page 16 User’s Manual Select the 「RESET」option to reset to the monitor’s default RESET setting. This will erase the current settings. Enter the option and select On or Off.. LOCK Select the 「LOCK SYSTEM」 option to switch the function On or LOCK SYSTEM Off.
-
Page 17: Media Center Menu
User’s Manual MEDIA CENTER MENU * Your Monitor is equipped with a USB connector that enables you to view photos, listen to music, or watch videos stored on a USB storage device. Device File Format USB 2.0 device USB memory, USB card reader File System FAT / FAT 32 Photo file format... - Page 18 User’s Manual Playback MUSIC 1. Select MEDIA > MUSIC, then press OK to enter the main file content browser. 2. In the main file content browser, use ▲/▼/◀/▶to select a song or an inner file folder. ■ Select an inner file folder, press OK to enter a sub file content browser. ■...
-
Page 19: Plug And Play
User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 20: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. *Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &... - Page 21 86,4cm/34”(21:9) 3440x1440@60Hz 3440x1440@50Hz 111,25cm/43.8”(32:9) 3840 × 1080 @60Hz 3840 × 1080 @120Hz And if you still have display problem after doing the above procedure, please visit HANNspree support and Service Website: http://www.hannspree.eu/en/monitors Windows is a registered trademark of Microsoft Corporation.
-
Page 22: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED: 1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. - Page 23 User’s Manual 1440×900 @75Hz 70.635 74.984 1400×1050 @60Hz 64.744 59.948 1600×900 @60Hz 55.540 59.978 1680×1050 @60Hz 65.290 59.954 1920×1080 @60Hz 67.500 60.000 (Video mode) MODE RESOLUTION 640×480p @60Hz 720×480i @60Hz 720×480p @60Hz 720×576i @50Hz 720×576p @50Hz 1280×720p @60Hz 1920×1080i @50Hz 1920×1080i @60Hz 1920×1080p @50Hz 1920×1080p @60Hz...
-
Page 24: Appendix
4.0 kg (8.8 lb) *** The above specification is subject to actual product specification and is subject to change without prior notice. NOTES: The Maximum Resolution will depends on the display card supporting. Related issue can refer to http://www.hannspree.eu/en/monitors. FAQ section.
