Summary of Contents for INNOTECK KITCHEN PRO DS-5904
- Page 3 INDEX Important safeguards Getting to know your air fryer toaster oven Main component Features Technical specifications LED control panel Before using your air fryer toaster oven Operation guide Cooking functions quick reference chart Replacing the light Care, Cleaning & Storage Troubleshooting Warranty...
-
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Always follow basic safety precautions when using your Air Fryer Toaster Oven. READ ALL INSTRUCTIONS BEFORE USE Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning or handling, putting on or taking off parts. burns, use extreme caution when removing hot accessories or disposing of hot grease. Do not touch hot surfaces without using heat-protective gloves. To avoid other liquid to prevent against electrical hazard. This appliance should not be used by or near children. Do not immerse cord, plug or any parts of Air Fryer Toaster Oven in water or is dropped or damaged, please return product to original store or retailer for proper inspection and repair. Do not operate any appliance with a damaged cord or plug. If the appliance To avoid potential injury, do not use accessories or attachments not recommended for the unit. Do not use outdoors. child or pet interaction is present. Do not let the cord hang over the edge of a surface where the potential of Do not place on or near a hot gas or electric burner. Extreme caution should be exercised when using containers constructed of Do not use this appliance for other than intended use. materials other than metal or glass in the Air Fryer Toaster Oven. accessories in this appliance when not in use. Do not store any materials other than manufacturer’s recommended plastic, paper, or anything similar. Do not place any of the following materials in this appliance: cardboard, foil. This will cause overheating of the Air Fryer Toaster Oven. Do not cover Crumb Tray or any part of the Air Fryer Toaster Oven with metal Oversized foods, metal foil packages or utensils must not be inserted in an Air Fryer Toaster Oven as they may involve a risk of fire or electric shock. - Page 5 A fire may occur if the appliance is covered or touching flammable materials such as curtains, draperies or walls when in operation. Do not store any items on top of the appliance when in operation. Do not operate under wall cabinets. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, involving a risk of electric shock. during use. Use recommended temperature settings for all function. Warning: To avoid possibility of fire, Never leave the appliance unattended Do not rest cooking utensils or baking dishes on glass door. cabinet. When storing in an appliance garage, always unplug the unit from the electrical outlet. Do not operate your appliance in an appliance garage or under a wall Check if the voltage indicated on the appliance corresponds to the local main voltage before connecting the appliance. FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS...
-
Page 6: Main Components
GETTING TO KNOW YOUR AIR FRYER TOASTER OVEN MAIN COMPONENTS LED Control Panel Door Handle Oven Light GRILL BROIL AIRFRY DEHYDRATE TOAST Visible Door BAGEL BAKE PIZZA ROAST Hot Surface Do Not Touch PROOF Crumb Tray Baking Pan Air Fryer Basket Oven Rack Oven Rack : Used for meat, bread, pizza etc. Air Fryer Basket : Use the Air Fryer Basket in conjunction with the Air Fry function to optimize your cooking results. Used for fries, chicken wings, onion etc. It also could be used as the dehydrate basket. Baking Pan : Used for cookies, cake, turkey etc. It can also hold the drippings from the food or oil when Airfrying. Oven Light : Press the “Light” button to turn on or turn off light. In order to save energy, the light will turn off automatically in 5 minutes, and re-press “Light” button if want to turn on the light once again. -
Page 7: Technical Specifications
FEATURES By using all-new 360° HOT AIR CIRCULATION technology, The Air Fryer Toaster Oven can offer you more delicious and healthier cuisine. If the door is opened during cooking, the cooking will pause and the DOOR SENSOR light will turn on. The panel will show . When the door is closed, the light will turn off and resume cooking. Please make sure to keep the oven door closed during cooking. The built-in cord storage design, located in the back of the unit, takes up excess CORD STORAGE cord length and keeps your countertop looking clean and organized. TECHNICAL SPECIFICATIONS Frequency Capacity Voltage Power 1800W 50-60Hz 220~240V... - Page 8 LED Control Panel Up to 2 HOURS 230℃ 38-230℃ Up to 2 HOURS 230℃ 38-230℃ 230℃ Up to 2 HOURS 38-230℃ Up to 2 HOURS 200℃ 38-230℃ Up to 2 HOURS 230℃ 38-230℃ 50℃ Up to 8 HOURS KEEP WARM 4HOURS 38-120℃ LIGHT 1 MED 2 230℃ DARK 3 Up to 2 HOURS 230℃ 150-230 ℃ Up to 2 HOURS 176℃ 38-230℃ Up to 2 HOURS 200℃ 38-230℃ Up to 12 HOURS 4HOURS 50℃ 38-82℃ Up to 8 HOURS PROOF 40MINS 38℃...
- Page 9 LED Control Panel The above default data are for reference only, the user can adjust the desired temperature and time as required. Touch “POWER ON/OFF”icon to turn the Air Fryer Toaster Oven On/Off. ② POWER ON/OFF ④ DISPLAY:TIME DISPLAY:TEMPERATURE Touch “START/PAUSE”icon to start or cancel the program. START/PAUSE ⑦ Touch "PREHEAT" icon to preheat the Air Fryer Toaster Oven No need to touch the ⑧ PREHEAT “START/PAUSE”icon to enter the preheat program) Touch “LIGHT”icon to turn the oven light On/Off. (After manual selection, it will ⑨ LIGHT SWITCH automatically turn off 5 minutes later.) LIGHT...
- Page 10 LED Control Panel Touch “ ” icon and then touch “ > ” icon to increase the temperature as needed. TEMPERATURE INCREASE: ⑩+③ Long press “ > ” icon for rapid increase operation of setting. Touch “ ” icon and then touch “ < ” icon to decrease the temperature as needed. TEMPERATURE DECREASE: ⑩+⑥ Long press “ < ” icon for rapid decrease operation of setting. +③ Touch “ ” icon and then touch “ > ” icon to increase the time as needed. TIME INCREASE: Long press “ > ” icon for rapid increase operation of setting. TIME DECREASE: Touch “ ” icon and then touch “ < ” icon to decrease the time as needed. +⑥ Long press “ < ” icon for rapid decrease operation of setting. When “AIRFRY” icon is displayed on the LED control panel, the menu with air fry function is AIRFRY working. Icon will disappear for the menu without air fry function. The air fryer oven will enter in standby mode in 30mins without any operation, and any STANDBY MODE control on the touch screen panel or on the door can take the oven out of standby mode.
- Page 11 BEFORE USING YOUR AIR FRYER TOASTER OVEN Place on a stable, level, heat- Remove all packaging around and resistant surface, away from inside the oven. anything that can be damaged by heat. Keep at least 110 mm distance between the electrical outlet and the wall, furniture, etc. Wash all accessories and clean the interior of the Air Fryer Toaster Oven. Dry and place accessories back in oven. 1 1 0 m Before use, ensure that the power and outlet meet the requirements to operate this product (input power requirements). Upon first use, it is necessary to run the oven for 18 minutes at the highest temperature (230℃) in order to sterilize and remove any manufacturing odor. The Air fryer Toaster Oven may emit an odor or smoke due to the heater’s protective film.
- Page 12 OPERATION GUIDE Accessories POWER ON Function Preheat START position Plug in, touch the POWER ON/OFF to turn on the Air Fryer Toaster Oven, screen will illuminate and “French Fries” Icon will blink. Touch the desired menu icon gently to select the menu, screen will display the default temperature and default time for this menu, users can also adjust the temperature and time as desired. Function cannot be adjusted. The “TIME” icon will adjust the time duration for light, medium, or dark toast. Note: The temperature on the “Toast” function Touch the “PREHEAT” icon in order to preheat the Air Fryer Toaster Oven (No need to touch the “START/PAUSE” icon in order to begin preheating). When the internal temperature reaches 150 ℃, the “Add Food” signal PREHEAT will appear. Note: The Toast, Dehydrate, Keep warm and Proof options do not require preheating.
- Page 13 OPERATION GUIDE Position2: Position1: TOAST DEHYDRATE DEHYDRATE Position3: TOAST position2: DEHYDRATE FRENCH FRIES BAKE CHICKEN WINGS VEGETABLES PIZZA position4: Accessories ROAST Oven Rack Air Fryer Basket Baking Pan or the air fryer basket, place the baking pan in the slot underneath in Note: When cooking fatty foods (e.g. chicken wings) with the oven rack order to prevent oil from dripping on to the stainless-steel heater. Insert the accessories with food into the desired position then close the door. There are four groove positions, please to the above rack position diagrams to place the accessories. Accessories position Touch the START/PAUSE icon to begin cooking, and the display will show the timer counting down. The oven will beep 5 times, the display will show “END”, and all menu icons will light up. Note : The display will continue to show “END” until the menu icon is pressed. After cooking is complete, the fan will continue to run for 4 minutes in order to properly cool the appliance.
- Page 14 COOKING FUNCTIONS QUICK REFERENCE CHART Suggested Suggested Suggested FUNCTION PREHEAT French fries Amount of Food Accessory Rack Position 980g Air Fryer Basket Chicken 1038 g (21wings) Air Fryer Basket Wings Baking Pan 190 g Steak or Oven Rack Baking Pan Pizza 10 inches or Oven Rack Toast 6pcs Oven Rack 2or3 Baking Pan Vegetables or Oven Rack Baking Pan Bake or Oven Rack Baking Pan Broil or Oven Rack Baking Pan base on the food Roast or Oven Rack you select...
-
Page 15: Replacing The Light
REPLACING THE LIGHT ATTENTION: Be sure to unplug the Air Fryer Toaster Oven and allow it to cool completely before replacing the oven light. SPECIFICATION:25W halogen bulb 1.Rotate the light cover 2.Remove the used bulb counterclockwise to remove it. by pulling it directly. 3.Insert the new bulb 4. R otate the light cover clockwise to tighten it. -
Page 16: Care, Cleaning And Storage
CARE,CLEANING&STORAGE Before cleaning, remove the power plug from the power outlet. Allow the oven and all accessories to cool completely before disassembling and cleaning. Cleaning the outer body and door Wipe the outer body with a soft, damp sponge. A non-abrasive liquid cleanser or mild spray solution may be used to avoid build-up of stains. Apply the cleanser to the sponge, not the oven’s surface, before cleaning. To clean the glass door, use a glass cleaner or mild detergent and a soft, damp sponge or soft plastic scouring pad. Do not use an abrasive cleanser or metal scouring pad as these will scratch the oven’s surface. Wipe the LED screen with a soft, damp cloth. Apply cleanser to the cloth, do not apply cleanser directly on to the LED. Cleaning the LED screen surface with a dry cloth and/or abrasive cleaners may produce scratches. WARNING: To prevent electrocution, do not immerse the appliance or power cord into water or any other liquid. To clean any spattering that may occur while cooking, wipe the walls with a soft, damp sponge. Cleaning the interior A non-abrasive liquid cleanser or mild spray solution may be used to avoid build-up of stains. Apply the cleanser to the sponge, not the interior, before cleaning. WARNING: Use extreme caution when cleaning the heating elements. Allow the oven to cool completely, and then gently rub a soft, damp sponge or cloth along the length of the heating element. Do not use any type of cleanser or cleaning agent. Let all surfaces dry thoroughly prior to inserting the power plug into a power outlet and turning the oven on. After each use, slide out the crumb tray and discard crumbs. Wipe the tray with a soft, damp Cleaning the crumb tray sponge. A non-abrasive liquid cleanser or mild spray solution may be used to avoid build-up of stains. Apply the cleanser to the sponge, not the tray, before cleaning. Dry thoroughly. To remove the baked-on grease, soak the tray in warm soapy water then wash with a soft sponge or soft plastic scouring pad. Rinse and dry thoroughly. Always ensure to re-insert the crumb tray into the oven after cleaning and prior to inserting the power plug into a power outlet and turning the oven on. Wash all accessories in warm soapy water with a soft sponge or soft plastic scouring pad. Rinse and Cleaning the oven rack, dehydrate rack, baking pan and fry basket dry thoroughly. Do not use abrasive cleansers, metal scouring pads or metal utensils to clean any of the accessories as they may damage the surfaces. To extend the life of your accessories, cleaning them in the dishwasher is not recommended. Ensure the oven and all accessories are clean and dry. Storage Ensure the door is closed. Store the appliance in an upright position, standing level and on its supporting legs. Do not store appliance when wet or hot. Do not store in a wet or hot environment. -
Page 17: Troubleshooting
TROUBLESHOOTING Possible Problem Possible Cause Solution The appliance is not Make sure the oven is plugged in. plugged in You have not turned on Touch the POWER ON/OFF icon to power on。 the oven The oven does NOT The door is not closed Make sure the door is closed well. work properly This is normal. The door is vented to release steam created from You are cooking high moisture content foods high-moisture content foods such Steam is coming out as frozen breads. from the top of the oven door This is normal upon first use. We This is the first time suggest setting the oven to the highest temperature and letting it using the oven run empty from 18-20 minutes. This is normal when cooking greasy You’re cooking greasy White smoke is foods. This will not affect the food coming out of the cooking process. oven The baking pan, crumb tray, or heaters still Ensure each component is properly contain grease or oil... - Page 18 Possible Problem Possible Cause Solution Too much food in the Reduce the amount of food in the oven at once oven when cooking. Set the temperature higher or Setting temperature too time longer. low or time too short The ingredients Make sure you cook with the proper Choose the incorrect cooked with the oven function. are not done function Ingredients are stacked Make sure food and ingredients are or close to each other spread out evenly. during cooking Baking pan, Air Fry Adjust oven inserts into the proper Foods are cooked basket or oven rack position. Take caution as these unevenly position is not adjusted components may be hot. Spraying or brushing a small Ingredients with high amount of oil on food evenly can moisture increase crispiness. Foods are not crispy after Air Frying There is a short circuit Remove the power cord from the in the temperature power outlet. Contact Customer monitor...

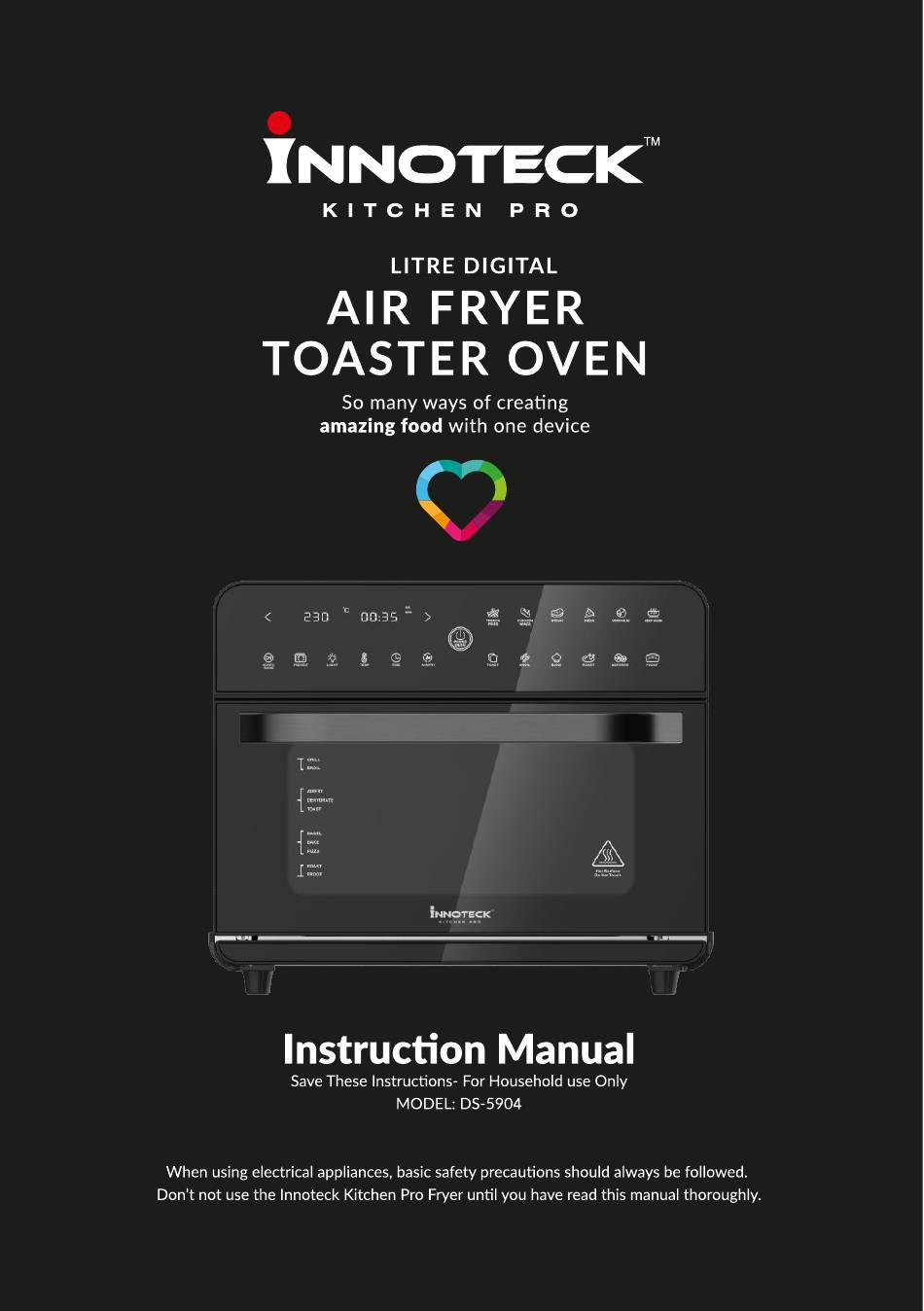

- Page 19 25 Litre Digital Air Fryer Toaster Oven Model: DS-5904 25 Litre Digital Air Fryer Toaster Oven...
