Contents Safety Precautions ... 3 Installation and important information ... 4 The remote control ... 6 Inserting batteries and effective range of the remote ... 7 Connecting external equipment ... 8 REGZA-LINK Connections ... 10 Connecting an HDMI ® or DVI device to the HDMI input ...
Page 3
Setting the Language ... 49 Text Information ... 49 Control Buttons... 49 Questions and Answers ... 50 Specifications and accessories ... 52 License Information used with Toshiba Televisions ... 53 Exhibit A ... 54 Exhibit B ... 54 Notes ... 56...
Safety Precautions This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.
Wall mounting of the TV should only be performed by qualified servicing personnel. Use only with the wall mount bracket specified by the manufacturer. Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by: fire;...
Page 6
SETTING UP SYMBOL SYMBOL DEFINITION DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated "DANGEROUS VOLTAGE" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. INSTRUCTIONS: The exclamation point within on equilateral triangle to alert the user to the presence of important operating and maintenance...
SETTING UP The remote control Simple at-a-glance reference of your remote control. For On/Standby mode To select input from external sources Still Picture To call up text services in analogue mode and interactive services in digital mode To turn the subtitle On/Off Stereo/Bilingual transmissions Number buttons Switch the Audio Description On/Off...
SETTING UP Inserting batteries and effective range of the remote Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V. Do not combine a used, old battery with a new one or mix battery types.
Page 9
SETTING UP off all main power switches. If there is no switch remove the mains plug from the wall socket. Connect the power cord into the AC-IN socket found at the back of the TV. Model 19/22 *a decoder could be Digital Satellite or any other compatible decoder.
SETTING UP or on the media recorder to the TV. SCART leads: - - - - - - - - - - - - - - - - - Connect the video recorder IN/OUT or decoder TV socket to the television. Connect the media recorder SAT socket to the decoder MEDIA REC.
Page 11
NOTE 2: The REGZA-LINK feature uses CEC Technology as regulated by the HDMI standard. This feature is limited to models incorporating Toshiba’s REGZA-LINK. However,Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.
The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device, or uncompressed digital video from a DVI (Digital Visual Interface) source device. This input is designed to accept HDCP (High-Bandwidth Digital- Content Protection) programme material in digital form from EIA/CEA-861-D–compliant [1] consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output).
Page 13
SETTING UP HDMI device To view the HDMI device video, press DVI device to the HDMI Input HDMI out to select the mode. HDMI cable (not supplied)
Connect an HDMI-to-DVI adapter cable (HDMI type A connector) to HDMI1 terminal and audio cables to the PC/HDMI1 Audio socket (see illustration). • The recommended HDMI-to-DVI adapter cable length is 6.6 ft (2m). An HDMI-to-DVI adapter cable transfers video only. •...
Page 15
SETTING UP Model 26/32/40 Audio cable for HDMI to television connection (not supplied) o ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these NOTE: procedures: • When turning on your electronic components, turn on the television first, and then the HDMI or DVI device.
Connecting a computer With the HDMI connection, you can watch your computer’s display on the television and hear the sound from the televisions speakers. To connect a PC to the HDMI terminal When connecting a PC to the HDMI terminal on the television, use an HDMI-to-DVI adapter cable and analogue audio cables.
Page 17
SETTING UP Acceptable Video signals through HDMI terminals Format Resolution 640 x 480 480i 720 x 480 576i 720 x 576 480p 720 x 480 576p 720 x 576 720p 1280 x 720 1080i 1920 x 1080 1080p 1920 x 1080 Acceptable PC signals through HDMI/D-SUB terminals Format Resolution...
Using the controls Whilst all the necessary adjustments and controls for the television are done using the remote control, the buttons on the television may be used for some functions. NOTE: COMMON INTERFACE (CI) The common interface is for a Conditional Access Module (CAM). Contact a service provider for details. Model 19/22 COMMON INTERFACE...
SETTING UP Switching on Before switching on the television, make sure to connect the aerial cable, and select TV as the input source. If the RED LED is off, check that the mains plug is connected to the power supply. If the picture does not appear, press on the remote control, it may take a few seconds to appear.
Tuning the television Before switching on the television, put your decoder and media recorder to Standby if they are connected. Make sure to connect the aerial cable, and select TV as the input source. To set up the television, press the buttons on the remote control as detailed on page 6.
TUNING THE TELEVISION Setting the programmes NOTE: When Channel Block is activated the 4-digit password is needed to enter the Channels submenu under SETUP menu. Auto Scan The Auto Scan will completely re-tune the television and can be used to update the channel list.
Update Scan Search the new channels that are not in the programme list. Press MENU and press ◄ or ► to select SETUP. Press ▼ to highlight Channels and press ► or Select Update Scan and press scanning. Update Scan Status: Scanning..
TUNING THE TELEVISION Select Analogue Manual Scan and press ► or to confirm it. Channels Auto Scan Update Scan Analogue Manual Scan Favorite Nework Select Channel Skip Channel Sort Channel Edit Channel Decode Analogue Channel Fine Tune Clean Channel List Enter Select RETURN...
Channel Sort Change the order of the programme list. Select Channels from the SETUP menu. Highlight Channel Sort and press ► or to enter. Press ▲ or ▼ to select the first channel you want for sorting and then press mark it.
CONTROLS AND FEATURES Analogue Channel Fine Tune When the reception is poor, you can use this function to do the fine tuning. In the SETUP menu, press ▼ to highlight Channels and press ► or Press ▼ to highlight Analogue Channel Fine Tune and press to enter.
General controls Selecting programme positions To select a programme position, press the numbered buttons on remote control. The programme positions can also be selected by pressing P and P To display on-screen information, i.e. programme position, input mode, or stereo/mono signal, press .
CONTROLS AND FEATURES Surround Sound This function enriches (expanding and deepening) the sound quality. In the SOUND menu, press ▼ to select Surround Sound. Press ◄ or ► to switch function On or Off. Stable Sound Stable Sound reduces the volume level differences between channels.
Make sure the Speaker Out option is set to On. Press ▼ to highlight Volume option, and press ◄ or ► to adjust the volume. Visually Impaired Speaker Out Volume Select RETURN Advanced Audio Settings The Advanced Audio settings help to create an enhanced surround sound experience with deep, rich bass from stereo sound sources.
CONTROLS AND FEATURES Widescreen viewing Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Native and will show the picture without over scan. Wide Cinema films/video tapes, this setting will eliminate by zooming in and selecting the image without distortion. Super Live Subtitle This setting is available when...
Page 30
Use this setting when watching a 14:9 14:9 HDMI or RGB/PC terminal when receiving PC Wide PC signal format. This setting will display HDMI or RGB/PC terminal when receiving PC Normal PC signal format. This setting will display the image correctly without distortion or Depending on the input signal format, Dot by Dot the picture is displayed with side panels...
CONTROLS AND FEATURES Picture controls Picture Mode You can adjust the best picture appearance by selecting the preset value in picture mode based on the programme category. Press MENU and press ◄ or ► to select PICTURE. Press ▼ to highlight Picture Mode and press ◄...
Press ◄ or ► to select Cool, Medium, Warm or User to suit your preference. Colour Temperature Colour Temperature User R Gain G Gain B Gain Select RETURN NOTE: R/G/B Gain: Increase or decrease the red/green/blue levels in the picture. Cinema Mode The frame rate of a movie film is generally 24 frames a second whereas the movie software...
CONTROLS AND FEATURES Adaptive Luma Control Automatically adjusts the brightness and contrast after analyzing the input signal. This function enriches the colours and the depth of the picture. In the PICTURE menu, press ▼ to highlight Advanced Video and press ► or to enter.
Press ▲ or ▼ to highlight Base Colour Adjustment and then press ► or Advanced Video Cinema Mode Auto Adaptive Luma Control Active Backlight Blue Screen 3D Colour Management Base Colour Adjustment Enter Select RETURN Press ▲ or ▼ to select an option, then press to enter the adjustment setting window.
CONTROLS AND FEATURES Timer control Time Zone When you select a Time Zone, the TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.
Sleep Timer The television can be set to turn itself Off automatically after a preset time. Press ▼ to highlight Sleep Timer in the APPLICATIONS menu. Press ◄ or ► to set the timer from Off, 10, 20, 30, 40, 50, 60, 90 or 120 Minutes. APPLICATIONS Media Player Time Setup...
This feature uses CEC (Consumer Electronics Control) technology, and allows the control of Toshiba REGZA-LINK compatible equipment from the television’s remote control. NOTE: Not all Toshiba products currently support to enter. REGZA-LINK. Equipment Control The REGZA-LINK mode on the television’s remote control allows the control of connected REGZA-LINK equipment being watched.
Input Source Selection When any equipment using CEC technology is connected, the REGZA-LINK icon will appear in the input source list allowing selection of individual devices. Press . A list will appear on screen showing modes and all stored external equipment.
CONTROLS AND FEATURES REGZA-LINK Menus By activating the Enable REGZA-LINK feature in the REGZA-LINK setup menu, individual REGZA-LINK features can then be activated. One Touch Play The function of REGZA-LINK will automatically power on the television that was in standby mode and switch the television’s input source to the port connected with the audio/video equipment by powering-on or playing from the audio/video...
Auto Standby When the Auto Standby is enabled, switching off the television will automatically switch off all connected REGZA-LINK equipment. In the REGZA-LINK Setup menu, press ▼ to highlight Auto Standby. Press ◄ or ► to select On or Off. Amplifier Control When Amplifier Control is enabled REGZA- LINK allows some of the amplifier features to be...
CONTROLS AND FEATURES Photo Multi-View This view mode allows all the images within a selected folder to be viewed simultaneously, using thumbnail views in a grid. The initial highlighted position will be the top left image within the grid. Open Media Player. Press ▲, ▼, ◄, or ►...
Viewing Music Files This view mode allows all the music files within a selected folder to be viewed simultaneously, using thumbnail views in a grid. The initial highlighted position will be the top left image within the grid. Open Media Player. Press ▼ to highlight Music.
CONTROLS AND FEATURES Preference control Analogue Subtitle You can set the subtitle on or off whilst watching Highlight Subtitle in the PREFERENCES menu, and press ► or PREFERENCES REGZA-LINK Setup Teletext Subtitle Audio Channel Stereo Auto Format 4:3 Stretch Side Panel Enter Select RETURN...
Audio Channel If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time the programme positions are changed, and then disappear after a few seconds. If the broadcast is not in stereo, the word Mono will appear.
CONTROLS AND FEATURES Parental control This function blocks channels or programmes that you do not want to or that you do not want your children to watch. A password is required to access this function. The factory default password is “0000”. NOTE: When Channel Block, Programme Block and Input Block are activated, you will need to enter the 4-digit password before you enter the...
Press ◄ or ► to set the Age Rating from age 4~18 or select None to turn this function off. Programme Block Age Rating None Select RETURN NOTE: This function is available for the programme with Age Rating information. Input Block This function can disable the specific external input signals.
CONTROLS AND FEATURES Panel Lock You can lock the control buttons on your TV by using this Panel Lock. When this function enables, the TV can be controlled only by the remote control. Highlight Parental in the SETUP menu, and press ► or to enter.
Guide Select the on-screen guide by pressing GUIDE, the guide screen will appear highlighting details of the programme and event currently being viewed. This may take a few moments to appear. Press ◄ or ► for information on other events scheduled for the programme selected.
NOTE: In DTV mode, this service page includes additional diagnostic information, such as signal strength, signal quality, centre frequency, modulation, etc. Software Upgrade Enter Select Back Exit RETURN EXIT to display the system Service Page TOSHIBA 2010 V1.19B 20100203 Good Back Exit RETURN EXIT...
Text services This television has a multi-page text memory, which takes a few moments to load. Setting the Language You can set the teletext language. In the PREFERENCES menu, press ▼ to highlight Teletext, then press ► or confirm. PREFERENCES REGZA-LINK Setup Teletext Subtitle...
PROBLEM SOLVING Questions and Answers Below are the answers to some of the most common queries. Why is there no sound or picture? Check the television is not in standby mode. Check the mains plug and all mains connections. Why is there incorrect or no sound when in DTV mode? Press to ensure the hard of hearing...
Page 52
Why does the TV turn off by itself? After roughly 15 minutes without any input video signal at TV mode, the TV will turn off to save power. Does this TV support the DPMS? This set is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard.

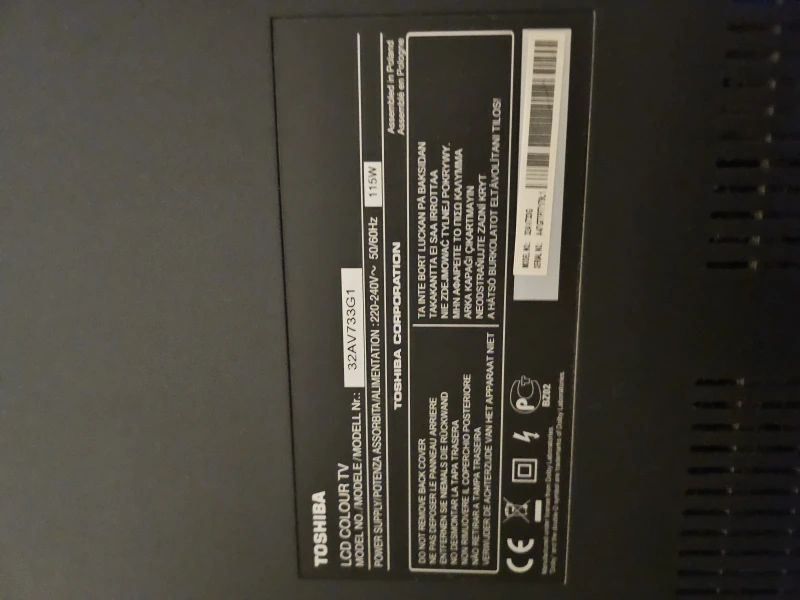

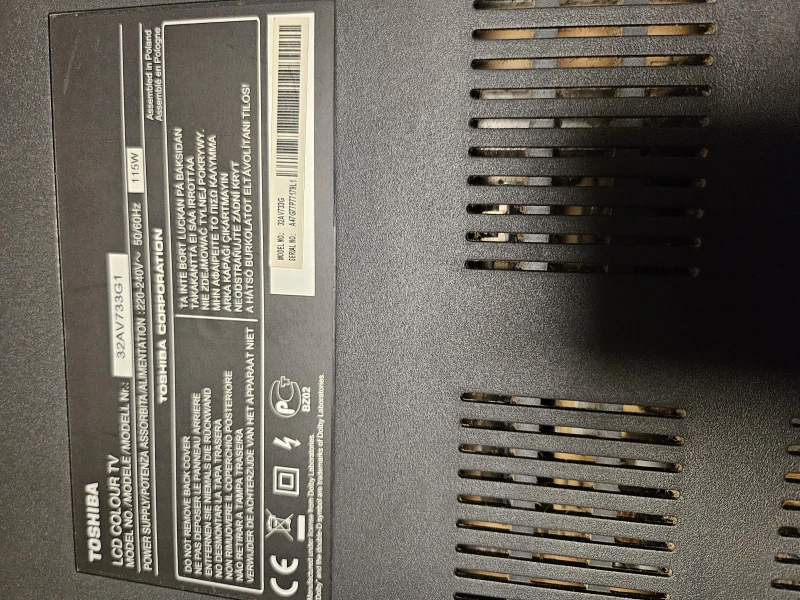

INFORMATION Specifications and accessories • This television complies with the specification listed below. • Design and specifications are subject to change without notice. DVB-T Broadcast systems/channels Broadcast systems/channels UHF 21-68 PAL-I France VHF 05-10 (VHF 01-05) PAL-B/G UHF 21-69 Germany VHF 05-12 SECAM-L UHF 21-69...
TOSHIBA and not subject to EULAs are not a target of source code offering. The Toshiba warranty provided in respect of the Digital TV is the only warranty provided and no additional warranties are provided in respect of the software components subject to EURAs.
INFORMATION Notes Cleaning the screen and cabinet… Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage. Disposal…...
