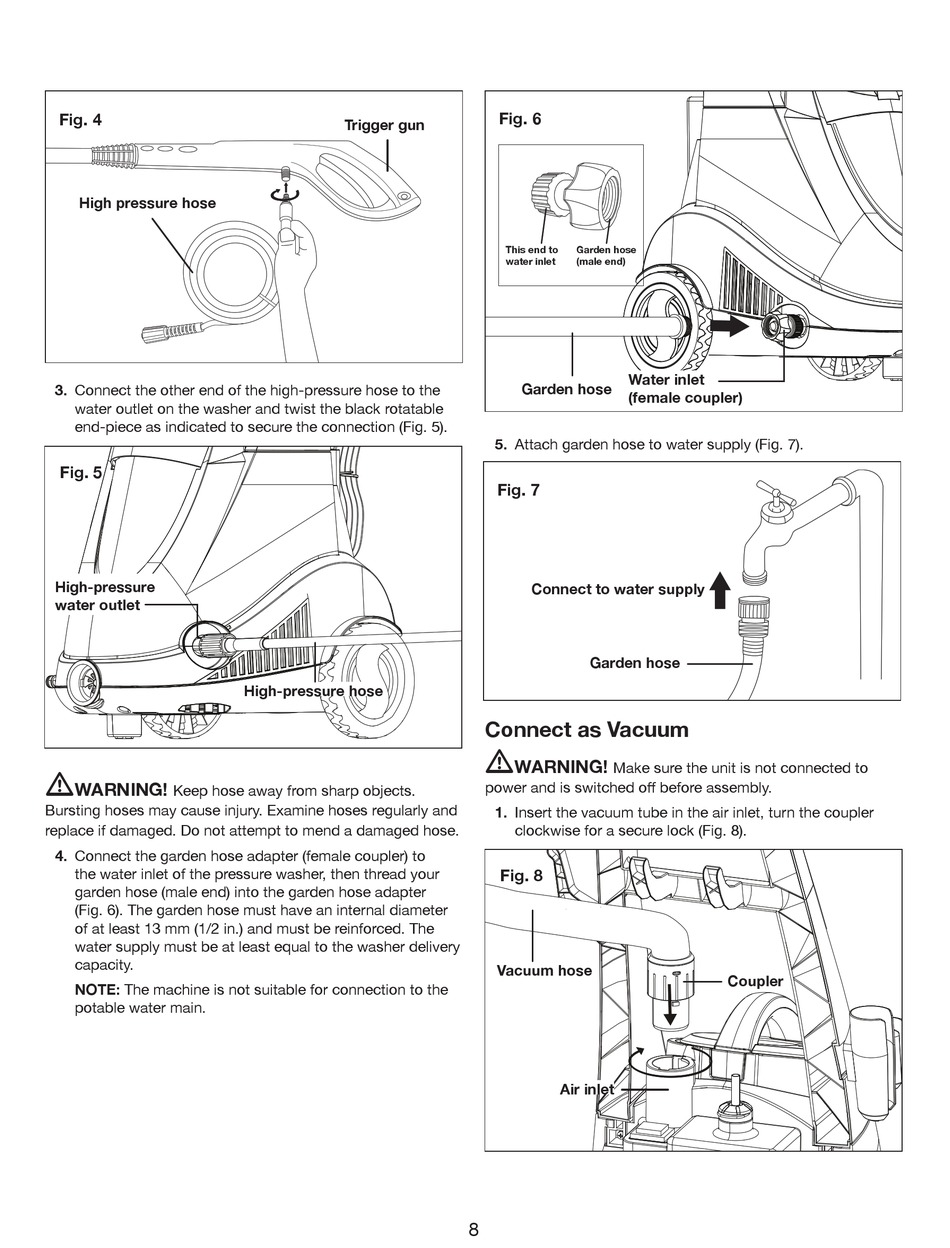

SNOWJOE SUNJOE SPX7000E Operator's Manual page 8

Fig. 4
High pressure hose
3. Connect the other end of the high-pressure hose to the
water outlet on the washer and twist the black rotatable
end-piece as indicated to secure the connection (Fig. 5).
Fig. 5
High-pressure
water outlet
m
WARNING!
Keep hose away from sharp objects.
Bursting hoses may cause injury. Examine hoses regularly and
replace if damaged. Do not attempt to mend a damaged hose.
4. Connect the garden hose adapter (female coupler) to
the water inlet of the pressure washer, then thread your
garden hose (male end) into the garden hose adapter
(Fig. 6). The garden hose must have an internal diameter
of at least 13 mm (1/2 in.) and must be reinforced. The
water supply must be at least equal to the washer delivery
capacity.
NOTE: The machine is not suitable for connection to the
potable water main.
Trigger gun
High-pressure hose
Fig. 6
This end to Garden hose
water inlet (male end)
Water inlet
Garden hose
(female coupler)
5. Attach garden hose to water supply (Fig. 7).
Fig. 7
Connect to water supply
Garden hose
Connect as Vacuum
m
WARNING!
Make sure the unit is not connected to
power and is switched off before assembly.
1. Insert the vacuum tube in the air inlet, turn the coupler
clockwise for a secure lock (Fig. 8).
Fig. 8
Vacuum hose
Air inlet
8
Coupler
