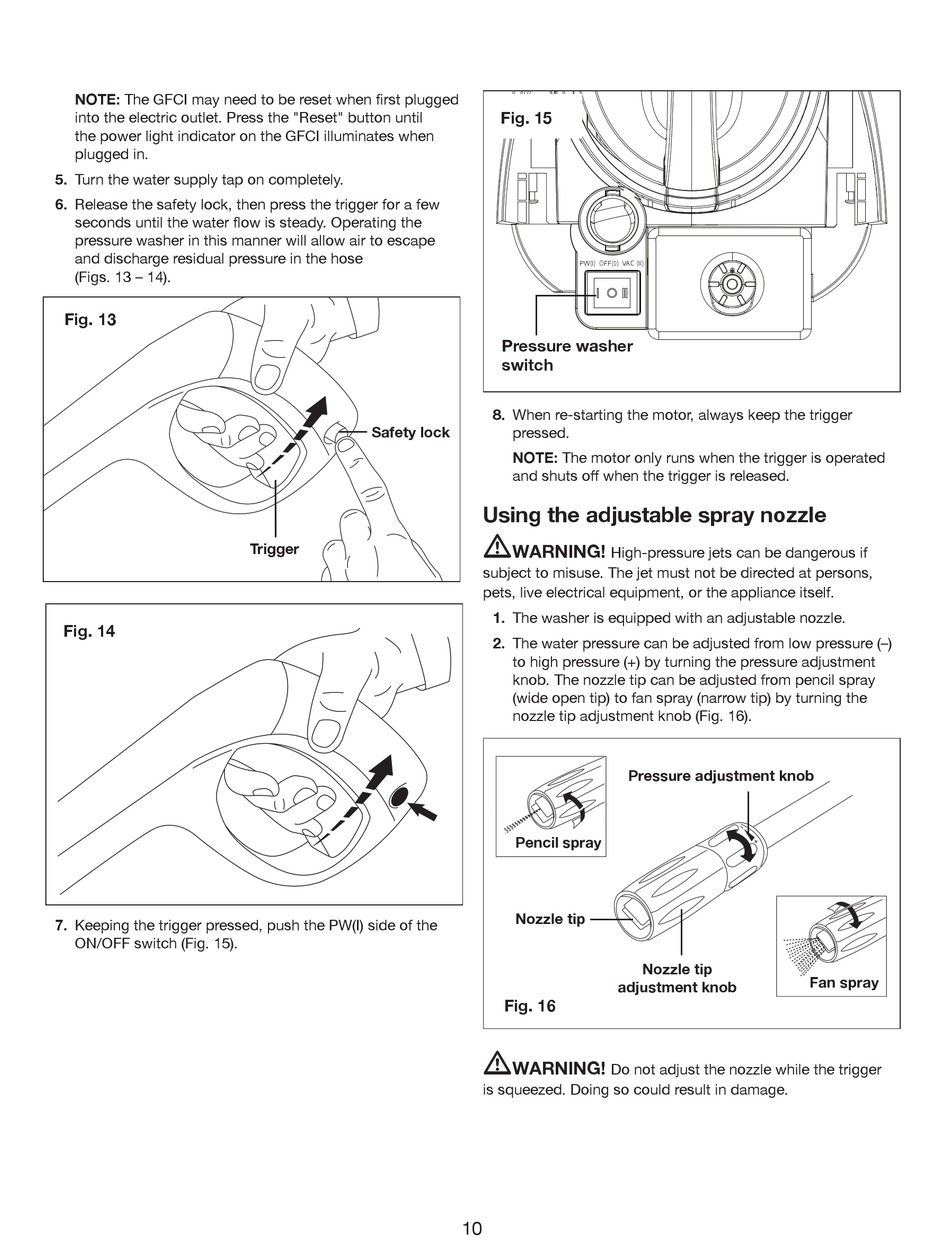

SNOWJOE SUNJOE SPX7000E Operator's Manual page 10

NOTE: The GFCI may need to be reset when first plugged
into the electric outlet. Press the "Reset" button until
the power light indicator on the GFCI illuminates when
plugged in.
5. Turn the water supply tap on completely.
6. Release the safety lock, then press the trigger for a few
seconds until the water flow is steady. Operating the
pressure washer in this manner will allow air to escape
and discharge residual pressure in the hose
(Figs. 13 – 14).
Fig. 13
Fig. 14
7. Keeping the trigger pressed, push the PW(I) side of the
ON/OFF switch (Fig. 15).
Safety lock
Trigger
Fig. 15
PW(I) OFF(0) VAC (II)
Pressure washer
switch
8. When re-starting the motor, always keep the trigger
pressed.
NOTE: The motor only runs when the trigger is operated
and shuts off when the trigger is released.
Using the adjustable spray nozzle
m
WARNING!
High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
1. The washer is equipped with an adjustable nozzle.
2. The water pressure can be adjusted from low pressure (–)
to high pressure (+) by turning the pressure adjustment
knob. The nozzle tip can be adjusted from pencil spray
(wide open tip) to fan spray (narrow tip) by turning the
nozzle tip adjustment knob (Fig. 16).
Pressure adjustment knob
Pencil spray
Nozzle tip
adjustment knob
Fig. 16
m
WARNING!
Do not adjust the nozzle while the trigger
is squeezed. Doing so could result in damage.
10
Nozzle tip
Fan spray
