AKM 274
GB
Operation of burners with safety
device and electric ignition
To light one of the burners:
Press the relative knob and turn it anti-
clockwise to the large flame and star
setting
.
At the same time, keep the knob pressed
against the control panel until the burners
ignites.
After the burner has ignited, keep the knob
pressed for about 10 seconds.
Release the knob.
If the burner does not ignite, repeat the operations
described above.
5019 319 01424

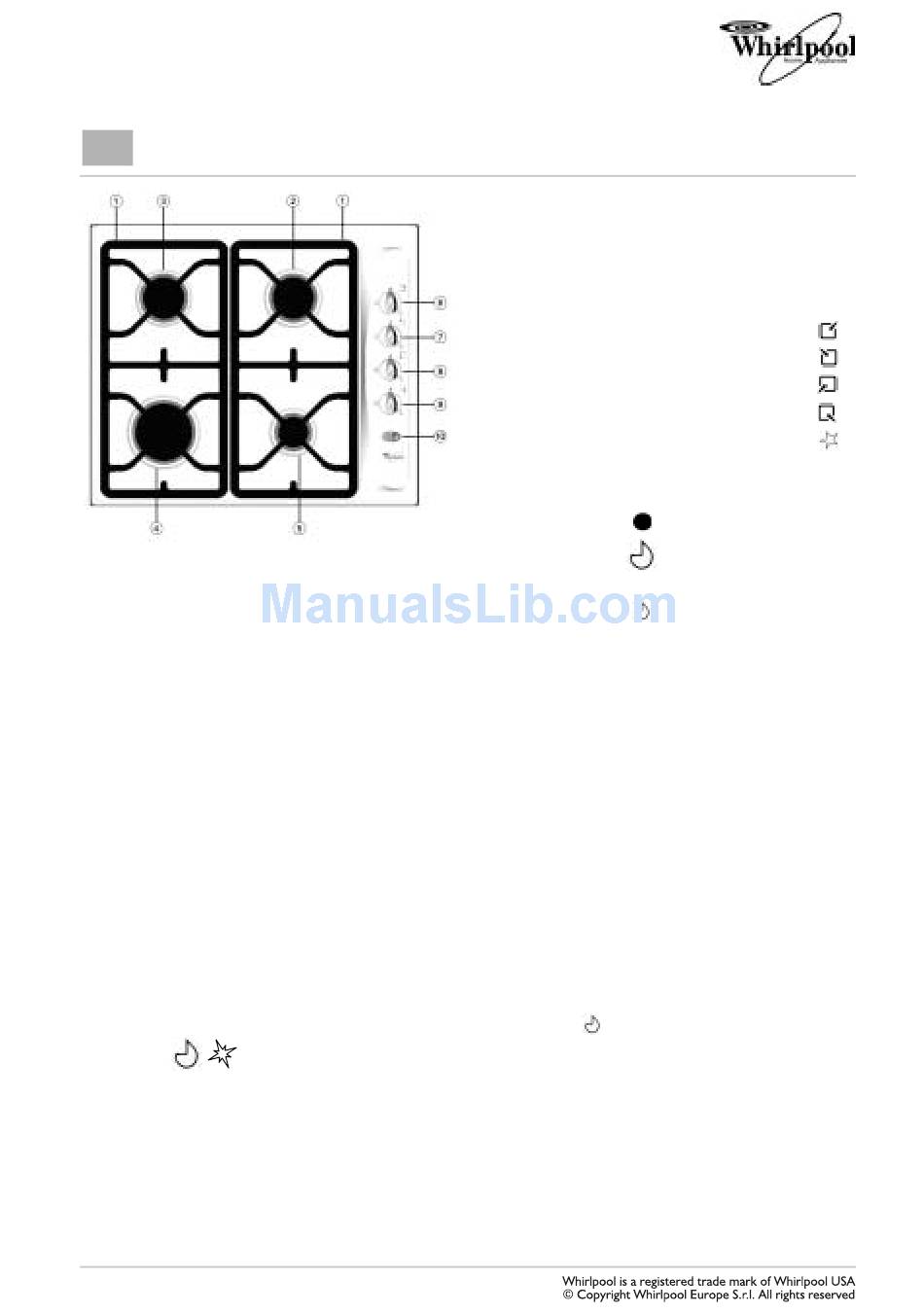

PRODUCT DESCRIPTION SHEET
1.
Removable panstand grids
2-3. Medium burners
4.
Large burner
5.
Small burner
6.
Medium burner control knob
7.
Medium burner control knob
8.
Large burner control knob
9.
Small burner control knob
10. Electric ignition button
Symbols
Shaded circle
Large flame
Small flame
Note:
Should particular local conditions of the
delivered gas make the ignition of the burner
difficult, it is advisable to repeat the operation
with the knob turned to the small flame
setting
The safety device of the burner shuts off the
gas supply to the burner if its flame goes out
accidentally (because of a sudden gust of
wind, an interruption in the gas delivery, the
overflowing of liquids, etc.).
Tap closed
Maximum opening
delivery
Minimum opening or
reduced delivery
.
