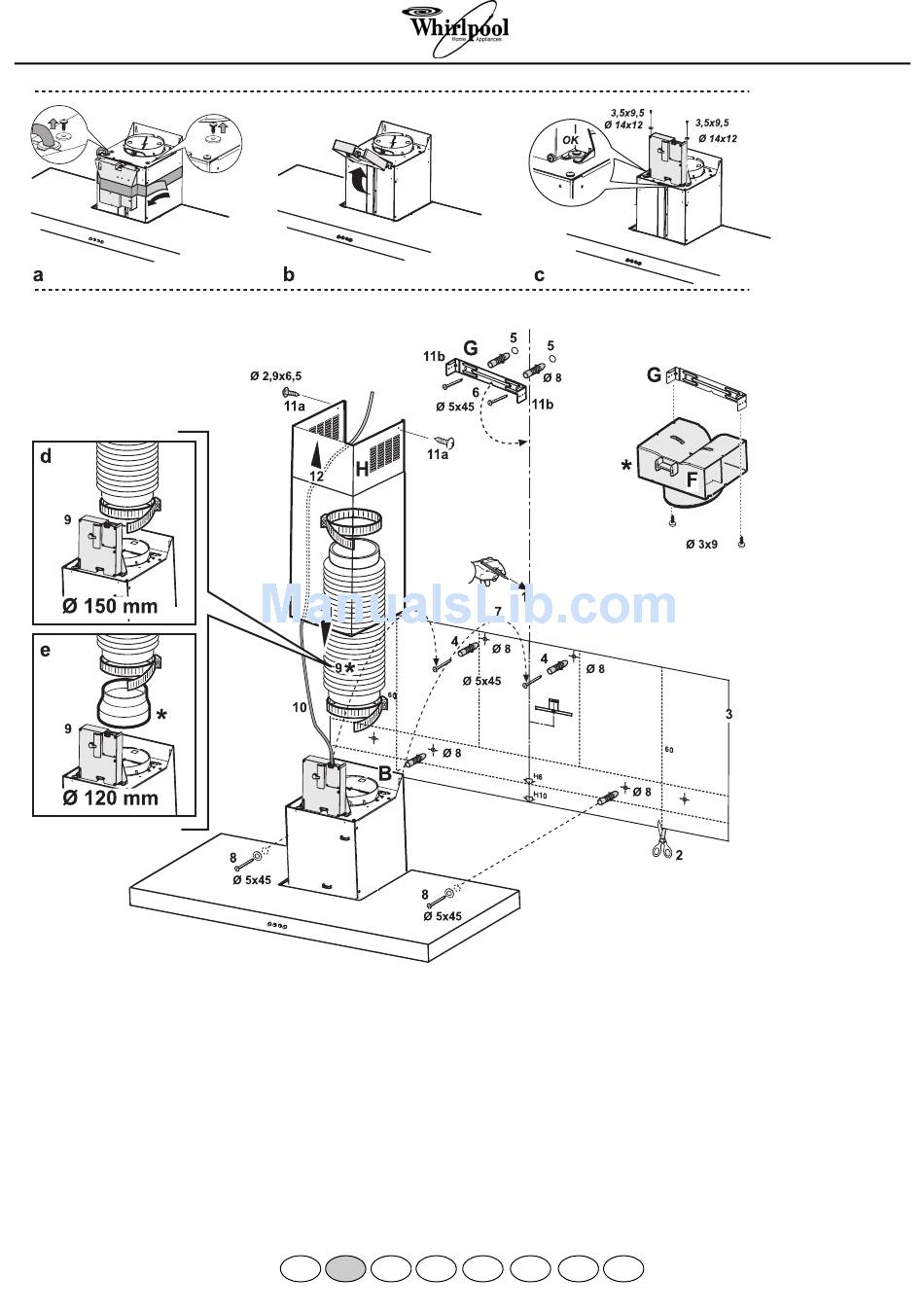

Fig. 1

Material supplied

Remove all the components from the packets. Check that all the components are included.

• Hood assembled with motor and lamps installed.

• Flue support bracket

• Assembly template

• Filter/s

• Instruction manual

• 1 - adapter Torx T10

• 1 - adapter Torx T20

• 2 - washers

• 6 - plugs 8 x 40 mm

• 6 - screws 5 x 45 mm

• 2 - screws 2.9 x 6.5 mm

• 2 - screws 3 x 9 mm

5019 318 33292
