Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
100cm
ASSEMBLY INSTRUCTION

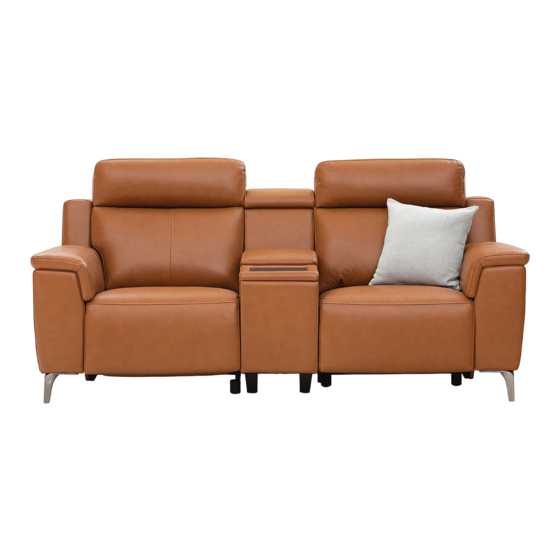

ARISTOTLE 2 SEATER
ITEM CODE 69318
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
219cm
Depth:
100cm
1
69318
Advertisement
Related Manuals for Amart Furniture SIGNATURE ARISTOTLE 69318
Summary of Contents for Amart Furniture SIGNATURE ARISTOTLE 69318
- Page 1 ITEM CODE 69318 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 219cm 100cm Depth: 100cm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 69318...
-
Page 2: Pre-Assembly Preparation
PRE‐ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. - Page 3 Step1: Locate power pack which is attached to the post at rear base of left hand facing electric recliner, then connect the power parts to be used at Step 6. Power Parts Connection Transformer Transformer Power cable Transformer cable 1pcs 1pcs 1pcs Step2: Locate package of metal legs with fittings which is attached to the bottom of left hand facing electric recliner. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering Bolt M8X40 Washer Allen key Metal leg 4pcs 2pcs 4pcs 1pcs 69318...
- Page 4 Step3: Tighten the two metal legs to the bottom of left hand facing electric recliner with bolt and washer by Allen key. Step4: Keep back rest in upright position, then slide receivers into steel mechanism posts at the seat of the left hand facing electric recliner, and press both sides of the back firmly into place to ensure fully locked. Receiver at bottom of back rest Mechanism post at rear of seat slide receiver into post 69318...
-
Page 5: Safety Note
Step5: Connect the “A”, one cord from the recliner back with the “B”, one cord from the recliner seat for power connection of headrest. Step6: Plug power parts connection (refer to step 1) into socket at back panel of left hand facing electric recliner. SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR transformer cable POWER CORD RESULTING IN power cable SERIOUS INJURY OR DEATH. transformer 69318... - Page 6 Step7: Locate power pack which is attached to the post at rear base of right hand facing electric recliner, then connect the power parts to be used at Step 12. Power Parts Connection Transformer Transformer Power cable Transformer cable 1pcs 1pcs 1pcs Step8: Locate package of metal legs with fittings which is attached to the bottom of right hand facing electric recliner. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering Bolt M8X40 Washer Allen key Metal leg 4pcs 4pcs 2pcs 1pcs 69318...
- Page 7 Step9: Tighten the two metal legs to the bottom of right hand facing electric recliner with bolt and washer by Allen key. Step10: Keep back rest in upright position, then slide receivers into steel mechanism posts at the seat of the right hand facing electric recliner, and press both sides of the back firmly into place to ensure fully locked. Receiver at bottom of back rest Mechanism post at rear of seat slide receiver into post 69318...
- Page 8 Step11: Connect the “A”, one cord from the recliner back with the “B”, one cord from the recliner seat for power connection of headrest. Step12: Plug power parts connection (refer to step 7) into socket at back panel of right hand facing electric recliner. SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN transformer cable SERIOUS INJURY OR power cable DEATH. transformer 69318...
- Page 9 Step13: Locate package of sofa legs with fittings and power supply cable that is placed into zipper pocket at bottom of the console. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering Bolt M8X90 Washer Allen key Plastic leg Power supply cable 4pcs 1pcs 4pcs 4pcs 1pcs Step14: Tighten the four plastic legs to the bottom of console with bolt and washer by Allen key. 69318...
- Page 10 Step15: Plug power supply cable taken from zipper pocket of console (refer to step 13) into socket at back panel of the console. SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN SERIOUS INJURY OR DEATH. Step16: Connect the 3 pieces of 2 Seater with console from right to left. Begin with right hand facing electric recliner, then console, final piece is left hand facing electric recliner. slide clips at connecting item into clips at connected item, then together press front and rear side of connecting item to ensure the clips go into each other to the bottom. 69318...
- Page 11 READ THESE INSTRUCTIONS THOROUGHLY BEFORE USE: DANGER: TO REDUCE THE RISK OF ELECTRIC SHOCK: Always unplug from electric outlet before cleaning. WARNING: RISK OF INJURY Keep children away from extended footrest and any moving parts. CAUTION: • Do not allow children to play on this electric recliner or operate the powered mechanism. The leg rest folds when closing and could possibly cause injury to a child.
- Page 12 69318...
