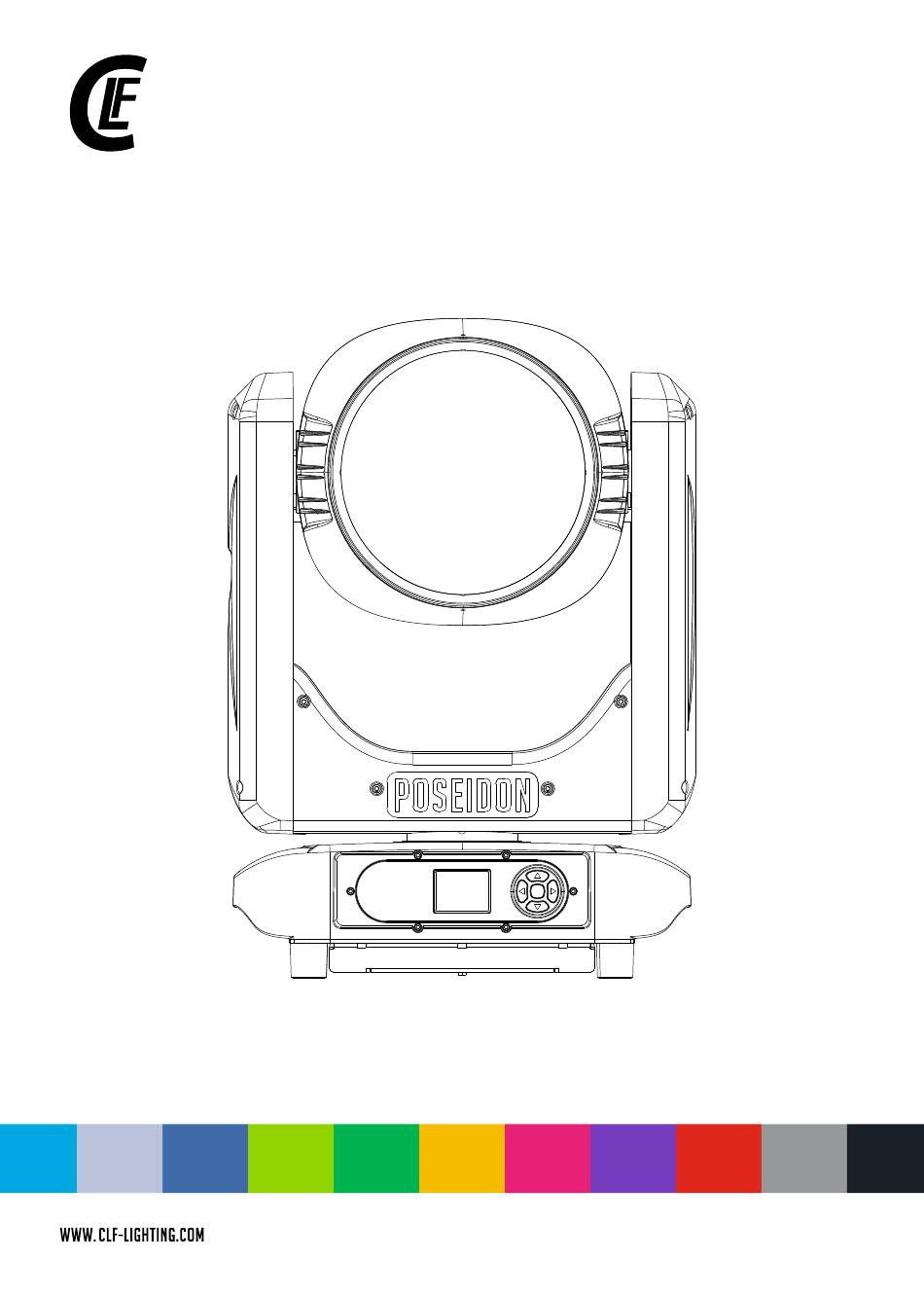

- Page 1 Poseidon Beam Ultra manual Beam Ultra V1.0 SEP 2023...
-
Page 2: Table Of Contents
table of CONTENTS Dimensions Safety instruction Protection from burns and fire Protection from injury Lamp life Fixture overview Introduction Powerful outdoor Beam Ultra Using for the first time AC Power Power voltage Power cables Relaying power to other devices Data link Tips for reliable data transmission Physical installation Fastening the fixture to a flat surface... -
Page 3: Dimensions
Dimensions ALL DIMENSIONS ARE IN MILLIMETERS WWW.CLF-LIGHTING.COM... -
Page 4: Safety Instruction
Safety Instruction WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! WARNING! WARNING! Safety hazard. -
Page 5: Protection From Burns And Fire
PROTECTION FROM BURNS AND FIRE • The exterior of the fixture becomes hot during use. Avoid contact by persons and materials. Allow the fixture to cool for at least 5 minutes before handling. • Keep all combustible materials (e.g. fabric, wood, paper) at least 1 metres away from the fixture. •... -
Page 6: Fixture Overview
Fixture overview FUSE display battery 5P DMX INPUT WIRELESS ANTENNA 5P DMX OUTPUT AC MAINS POWER OUTPUT AC MAINS POWER INPUT SAFETY ATTACHMENT POINT WWW.CLF-LIGHTING.COM... -
Page 7: Introduction
Introduction powerful outdoor Beam Ultra ■ IP65 DUST AND WATER PROTECTION ■ 200MM LENS FOR 1.6° BEAM ■ CMY AND COLOR WHEEL ■ GOBO WHEEL, FROST AND 2 PRISMS ■ LIGHT WEIGHT SLIM HOUSING Using for the first time Warning! Read “Safety Information” before installing, powering, operating or servicing the fixture. Before applying power to the fixture: Check that the local AC mains power source is within the fixture’s power voltage and frequency ranges. -
Page 8: Power Cables
Power cables Power input and throughput cables must be rated 16A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum. In the EU the cable must be HAR approved or equivalent. -
Page 9: Physical Installation
Physical installation Warning! The fixture must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Warning! Always attach an approved safety cable to one of the safety cable attachment points on the base. Do not illuminate surfaces within 12 meters of the fixture. -
Page 10: Rigging Via Omega Bracket
If the fixture shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The fixture must never be fixed swinging freely in the room. Caution: Fixture may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the moving head! Before rigging make sure that the installation area can hold a minimum point load of 10 times the fixture’s weight. -
Page 11: Outdoor Ip-Rated Fixtures
Outdoor IP-rated fixtures CLF products are applied to official classified IP norm levels. For this product the IP rate is IP65 when using the covers for the chassis parts. IP65 means according classified norm: shielded against dust and pressurized water from any side. Typical use for outdoor rated stage events with normal weather acceptance. -
Page 12: Setup
Setup Warning! Read “Safety Information” before installing, powering, operating the fixture. W-DMX control • This is an invisible menu. This menu will only be displayed when a wireless module is inserted. • Do not use Wireless DMX and Wired DMX at the same time because it will give unwanted interference. When this sign appears, it means: Connected Transmitte and Wireless DMX Connect .“... -
Page 13: Onboard Control Menu
Onboard control menu Main menu Menu level 1 Menu level 2 Menu level 3 Menu level 4 ─ Address:001-512 Address(***-***) (Default:001) ─ Wire -- WDMX OFF(Default) DMX Address ─ DMX Signal mode ─ Wireless -- WDMX ON ─ Return(ESC) ─ Total Hours: ***(H) ─... - Page 14 Main Menu level 1 Menu level 2 Menu level 3 Menu level 4 ─ OFF ─ Leak light protect ─ ON ─ OFF ─ Wireless ON/OFF ─ ON ─ ldle ─ wireless settings ─ Unlink transmitter ─ Wireless options ─ Wireless off ─...
- Page 15 Main menu Menu level 1 Menu level 2 Menu level 3 Menu level 4 ─ Fade Time ─ Save the time ─ Return(ESC) ─ Static Scene:*** ─ Copy Scene ─ Copy Scene ─ Return(ESC) ─ Static Scene:*** ─ Paste Scene ─...
-
Page 16: Dmx Protocol
DMX protocol CHANNEL FUNCTION VALUE SETTING NOTE 0-255 Pan Fine 0-255 Pan Fine Tilt 0-255 Tilt Tilt fine 0-255 Tilt fine Pan/Tilt speed 0-255 Speed from max. to min Reserved (0=default) 10-14 Reserved 15-19 Reserved * function is active only3 seconds after switching the fixture on 20-24 Reserved 25-29... - Page 17 CHANNEL FUNCTION VALUE SETTING NOTE 30-34 Aquamarine+Green 35-38 Green 39-42 Green+Light Green 43-46 Light Green 47-51 Light Green+Lavender 52-55 Lavender 56-59 Lavender+Pink 60-63 Pink 64-68 Pink+Yellow Colour 69-72 Yellow 73-76 Yellow+Magenta 77-81 Magenta 82-85 Magenta+Cyan 86-89 Cyan 90-93 Cyan+CTO2 94-98 CTO2 99-102 CTO2+CTO1...
- Page 18 CHANNEL FUNCTION VALUE SETTING NOTE 159-165 Gobo 9 166-172 Gobo 10 173-179 Gobo 11 180-186 Gobo 12 187-193 Gobo 13 194-200 Gobo 14 201-207 Gobo 15 Rotating 208-227 Forwards gobo wheel rotation from fast to slow 228-229 No rotation 230-249 Backwards gobo wheel rotation from slow to fast 250-255 Auto random gobo selection from fast to slow...
-
Page 19: Gobo Overview
gobo overview Static gobo wheel Color disk Dark green Aquamarine Green Orange Light purple Front Dark red Dark red Pink White Dark blue Blue CT01 CT02 White 24 Prism 8 Prism WWW.CLF-LIGHTING.COM... -
Page 20: Photometrics
photometrics distance, spot diameter and illumination diagram Spot model 1.6 ° Lux（fc） 3640000(338290) 910000(84572) 227000(21097) 101000(9387) 56000(5204) 36000(3346) 404000(37546) 1.6° Distance(m) 0.42 0.56 0.84 1.12 Diameter(m) 0.14 0.28 WWW.CLF-LIGHTING.COM... -
Page 21: Circuit Connection Diagram
circuit connection diagram WWW.CLF-LIGHTING.COM... -
Page 22: Specifications
Specifications Power Input voltage & rate AC100-240V~, 50/60HZ Standby power Total power consumption( ) 530W at nominal voltage 230V Typical current ( 5.3A at nominal voltage 230V Cos φ - 0.95 Power plug type Seetronic Powercon TRUE 1 Configuration Lamp USHIO NSL301 Expected Lifetime 2000 hours / normal... - Page 23 DMX input connection 5-pin Data input (artnet, SACN) Hardware Interface LCD Display Software upload method Software upload method XLR, firmware upload tool Installation IP rating IP65 (Use rubber power & data cover) Orientation Housing Safety attachment point Bottom Lock Tilt lock Physical Net product weight 25.8Kg...
- Page 24 Poseidon Beam Ultra...
