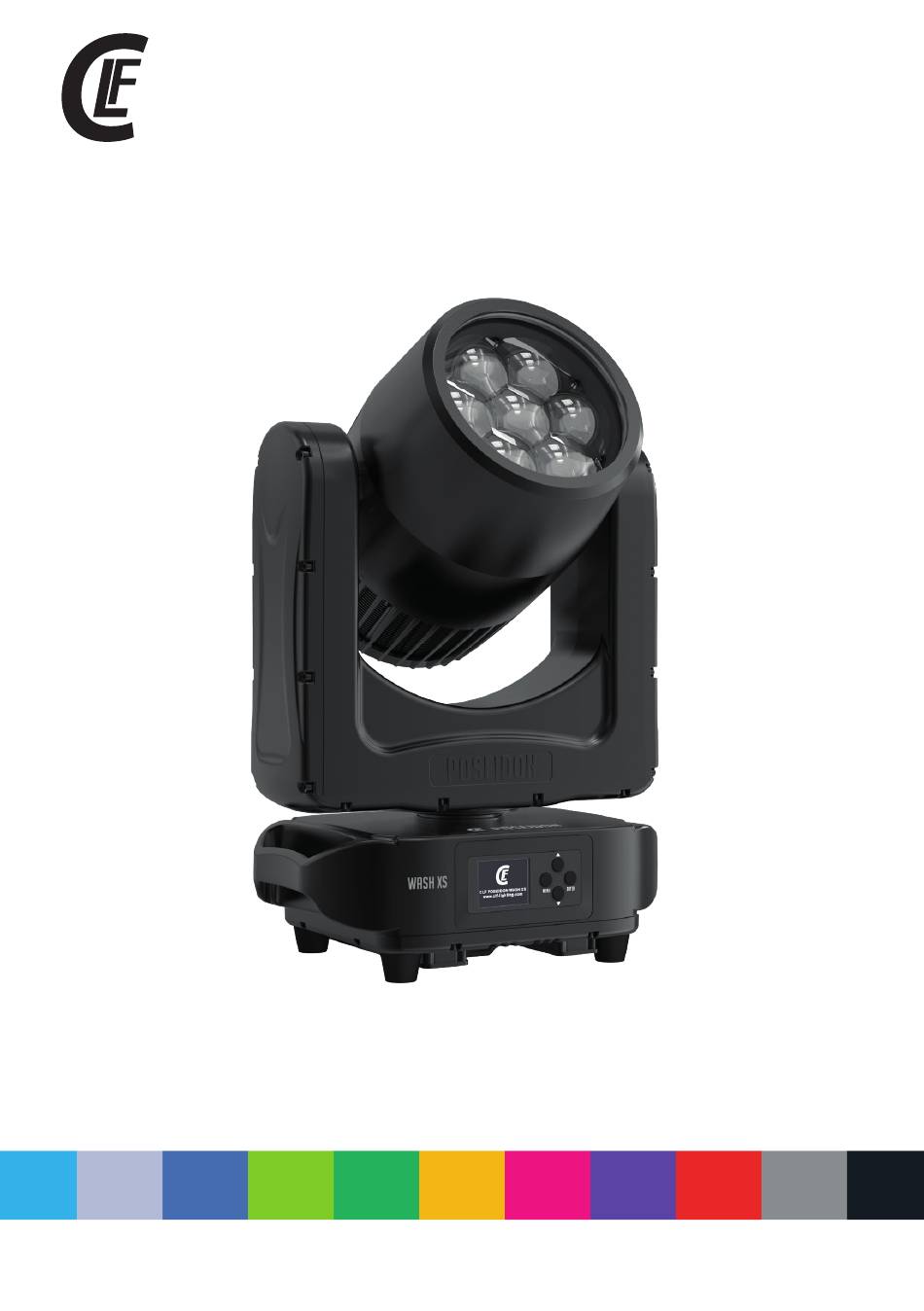

- Page 1 POSEIDON wash xs manual WWW.CLF-LIGHTING.COM V2.0 MAY 2022...
-
Page 2: Table Of Contents
table of CONTENTS Dimensions Safety Instruction Fixture overview Introduction AC Power Power voltage Power cables Relaying power to other devices Data link Tips for reliable data transmission Physical installation Fastening the fixture to a flat surface Rigging via omega bracket Outdoor IP-rated fixtures Condensation/moisture inside housing Fixtures temperature specification... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters WWW.CLF-LIGHTING.COM... -
Page 4: Safety Instruction
Safety Instruction WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! WARNING! WARNING! Safety hazard. - Page 5 PROTECTION FROM BURNS AND FIRE • The exterior of the fixture becomes hot during use. Avoid contact by persons and materials. Allow the fixture to cool for at least 5 minutes before handling. • Keep all combustible materials (e.g. fabric, wood, paper) at least 100 mm away from the fixture. •...
-
Page 6: Fixture Overview
Fixture overview LCD Display WDMX AC mains power Control buttons 5P DMX input input & output 3P DMX input (accessoires) CLF-13-453 5P DMX output 3P DMX output (accessoires) CLF-13-454 WWW.CLF-LIGHTING.COM... -
Page 7: Introduction
Introduction POWERFUL AND VERSATILE OUTDOOR LED WASH ■ OUTDOOR LIGHTING ESSENTIAL ■ TOURING - READY, COMPACT HOUSING ■ 7 RGBL HIGH POWER LEDS ■ 4° - 40° ZOOM ANGLE ■ IP65 RATING Using for the first time Warning! Read “Safety Information” before installing, powering, operating or servicing the fixture. Before applying power to the fixture: Check that the local AC mains power source is within the fixture’s power voltage and frequency ranges. -
Page 8: Power Cables
Power cables Power input and throughput cables must be rated 16A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum. In the EU the cable must be HAR approved or equivalent. -
Page 9: Physical Installation
Physical installation Warning! The fixture must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Warning! If the fixture can cause injury or damage if it falls, attach an approved safety cable to one of the safety cable attachment points on the base (see “Fixture overview”). -
Page 10: Rigging Via Omega Bracket
If the fixture shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The fixture must never be fixed swinging freely in the room. Caution: Fixture may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the moving head! Before rigging make sure that the installation area can hold a minimum point load of 10 times the fixture’s weight. -
Page 11: Outdoor Ip-Rated Fixtures
Outdoor IP-rated fixtures CLF products are applied to official classified IP norm levels. For this product the IP rate is IP65 when using the covers for the chassis parts. IP65 means according classified norm: shielded against dust and pressurized water from any side. Typical use for outdoor rated stage events with normal weather acceptance. -
Page 12: Setup
Setup Warning! Read “Safety Information” before installing, powering or operating the fixture. Control panel and menu navigation The onboard control panel and backlit graphic display are used to set the fixture’s DMX address, configure individual fixture settings (personality), read out data and execute service utilities. See “Onboard control menus” for a complete list of menus and commands. Using the control buttons •... -
Page 13: Control Mode
Control mode DMX control mode is selected in the CONTROL MODE menu. The fixture can be controlled with 3 DMX control modes: Small-20CH Medium-27CH Large-55CH Shutter Dimmer Dimmer fine Pan fine Tilt Tilt fine P/T speed/time Zoom Function set, Macro color RGBL RGBL fine LED 1-7 (RGBL) -
Page 14: Control Panel
control panel Here you can set all functions for the fixture. Personality Regulated = power : Min 84.5%, FAN : variable Full = power : Min 84.5%, FAN : 4000RPM FANS Silent 1 = power : Min 60%, FAN : 2240RPM Silent 2 = power : Min 40% ,FAN : 1840RPM Dimmer speed “Normal”... - Page 15 Dimmer mode provides five dimming options (see picture below): D M X % D MX % D M X % LI N EA R SQ U A R E LA W IN V ER SE S QU A R E LA W D M X % S - C U R VE D M X % UP...
-
Page 16: Onboard Control Menus
Onboard control menu Main menu Menu level 2 Menu level 3 Remark Set DMX Address <001> Default : 001 DMX ADDRESS DMX Signal Mode wire / wireless Default : wire Mode 1 - 20CH 1.Shutter, 2.Dimmer, 3.Pan, 4.Pan fine, 5.Tilt, 6.Tilt fine, 7.P/T speed/time, 8.Zoom, 9.Function set, 10.Macro color, 11.Red, 12.Green, 13.Blue, 14.Lime, 15.Static pixel effect, 16.M.P effect, 17.M.P effect speed, 18.Crossfade/dimmer,... - Page 17 Fixed color R, G, B, L, RG, RB, GB, RGB, RL, GL, BL, RGL, RBL, Default : RGBL GBL, RGBL 2500K / 2800K / 3200K / 4000K / 5000K / 5600K / 6000K / Default : 7000K 7000K / 8000K / 9000K /10000K Dimmer 0 - 255 Default : 000...
-
Page 18: Dmx Protocols
DMX protocols 20 CH 27 CH 54 CH Function Value Setting Remark 000 - 019 No function 020 - 024 Shutter open 025 - 064 Strobe 1 (fast → slow) 065 - 069 Shutter open 070 - 084 Strobe 2: opening pulse (fast → slow) 085 - 089 Shutter open 090 - 104... - Page 19 20 CH 27 CH 54 CH Function Value Setting Remark 000 - 009 No function Value must be held for 3 seconds to activate. 010 - 014 Reset entire fixture 015 - 059 No function 060 - 064 Fan mode REGULATED 065 - 069 Fan mode FULL 070 - 074...
-
Page 20: Arrangement Of The Led Groups
20 CH 27 CH 54 CH Function Value Setting Remark Red 5 000 - 255 0 - 100% Green 5 000 - 255 0 - 100% Blue 5 000 - 255 0 - 100% Lime 5 000 - 255 0 - 100% Red 6 000 - 255 0 - 100%... -
Page 21: Static Pixel Effect Chart
Static pixel effect chart Background color(White): control by Background Macro color channel value. Static pixel color(Blue): control by RGBL / Macro / CCT channel value. Dmx Value Pixel Dmx Value Pixel 000 - 004 No funtion 130 - 137 005 - 009 135 - 139 010 - 014 140 - 144... -
Page 22: Moving Pixel Effect Chart
Moving pixel effect chart Background color(White): control by Background Macro color channel value. Move pixel color(Red): control by RGBL / Macro / CCT channel value. Pixel Dmx Value step 1 step 2 step 3 step 4 step 5 step 6 step 7 step 8 step 9... -
Page 23: Color Macro Chart
Color Macro Chart DMX value DMX value Gel Name Color Number Gel Name Color Number no function Fern Green LEE 122 Rose Pink LEE 002 Dark Green LEE 124 Medium Bastard Amber LEE 004 Mauve LEE 126 Pale Yellow LEE 007 Smokey Pink LEE 127 Dark Salmon... - Page 24 DMX value DMX value Gel Name Color Number Gel Name Color Number Zenith Blue LEE 195 Special Medium Lavender LEE 343 True Blue LEE 196 Fuchsia Pink LEE 345 Alice Blue LEE 197 Glacier Blue LEE 352 Palace Blue LEE 198 Lighter Blue LEE 353 Regal Blue...
- Page 25 DMX value DMX value Gel Name Color Number Function setting Bray Blue LEE 722 204 - 205 no function Virgin Blue LEE 723 206 - 215 colour rainbow 1 slow - fast Ocean Blue LEE 724 216 - 225 colour rainbow 2 slow - fast Old Steel Blue LEE 725...
-
Page 26: Specifications
Specifications Power Input voltage & rate 100-240V, 50/60Hz Standby power Nominal total power consumption (at nominal voltage 230V) 350W Typical current (at nominal voltage 230V) 1.56A Cos φ 0,974 Power plug type Seetronic PowerCon True Configuration LED color RGBL LED color temperature 2500 K - 10000 K Quantity of LED 7 pcs... - Page 27 Control Control protocol USITT DMX512/1990 DMX channel range 20 / 27 / 55 RDM compliance ANSI/ESTA E.120 WDMX Standard (Wireles Solution from Sweden) None DMX input connection DMX 5P in & out (3 pin possible with optional chassis part) Data input (artnet, SACN) None Hardware Interface...
- Page 28 POSEIDON wash xs CLFLIGHTING WWW.CLF-LIGHTING.COM...
