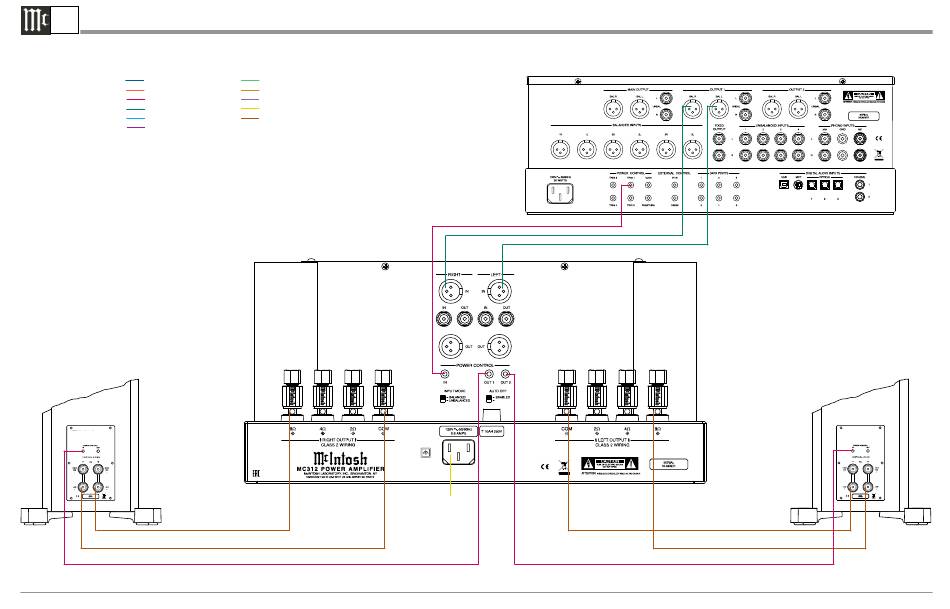

McIntosh MC312 Connection Diagram

Hide thumbs Also See for MC312:

Note: Refer to the MC312 Owner's Manual page 7 for additional connection information.

Connection Legend:

Data Cable*-

Digital Signal Cable -

Sensor/Keypad Cable -

Network/RS232 Cable -

Power Control Cable* -

Ground Wire -

Audio Signal Cable -

AC Power Cords -

Video Signal Cable -

Loudspeaker Cable -

RF Signal Cable -

2 conductor shielded with 1/8 inch stereo mini phone plug on each end.

Right Loudspeaker System

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com Part No. 04188400

DISABLED

Connect to

AC Outlet

Audio Preamplifier

Left Loudspeaker System
