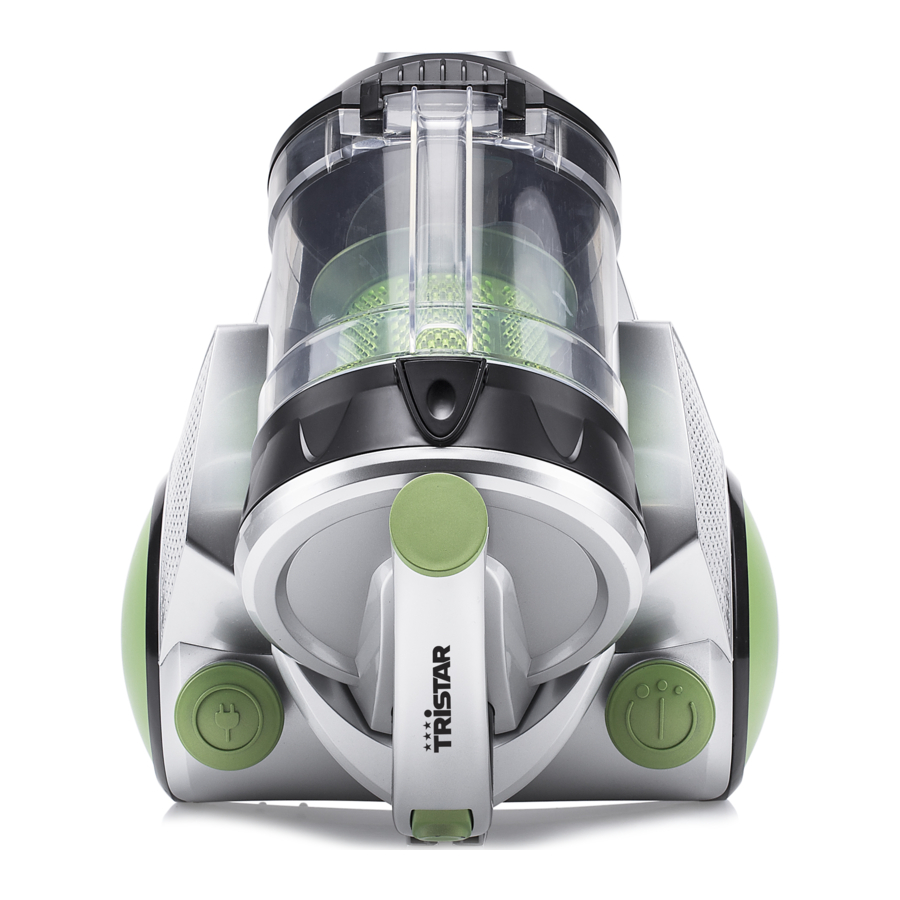

Tristar SZ-3135 - Vacuum Cleaner Manual

PARTS DESCRIPTION

1. On/off switch pedal / Power regulating switch
2. Cord rewind button
3. Filter holder
4. Filter
5. HEPA filter release button
6. Dust compartment
7. Dust compartment dump button
8. Dust compartment cover
9. Dust compartment release button
10. HEPA filter cover
11. HEPA filter

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Place the hose in the vacuum cleaner and turn clockwise to secure it (to release the hose, turn it counter clockwise and take it out). Place the other side of the hose into the tube.
• Only use the device if all the filters included the dust compartment are placed properly, a damaged or improperly installed filter or dust compartment may damage the unit.

USE

• Connect the different nozzle tools/floor brush to the tube for different cleaning purposes. The floor brush has two positions, soft/textile surfaces. The combi nozzle is for narrow surfaces.
• Turn on the appliance: Hold the plug and pull out the cord, then insert the plug into the power socket. Make sure that the power supply corresponds to the required power mentioned on the rating label.
  Press the on/off switch pedal to turn on the power.
• Turn off the appliance: After use, press the on/off switch pedal, the appliance is turned off. Pull the plug out of the power socket, press the cord rewinding pedal, the power cord will be drawn in.
• To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

CLEANING AND MAINTENANCE

• The plug must be removed from the power socket before any maintenance or replacement.

Emptying and cleaning the dust compartment

• Press the dust compartment release button and remove the dust compartment from the base.
• Hold the dust compartment over a bin then press the dust compartment dump button to empty out the dust.
• Remove the filter by turning it slightly anticlockwise then gently pulling it out of the dust compartment.
• Wash the filter with soap and water they dry it thoroughly before reinstalling it.
• To reinstall the filter, slide it back into the dust compartment and align the grips at the bottom of the filter then turn the filter clockwise to lock it in place.

Cleaning the HEPA filter

• Press the dust compartment release button and remove the dust compartment from the base.
• Press the release button (5) on the HEPA exhaust filter holder (3) and remove the HEPA filter cover (10) and the HEPA filter (11).
• Shake the dirt off from the HEPA filter, rinse it in warm water and allow it to dry thoroughly before reinstalling.
• Once the HEPA filter completely dried, place it back into the filter cover, and place the cover back into the HEPA filter holder.
