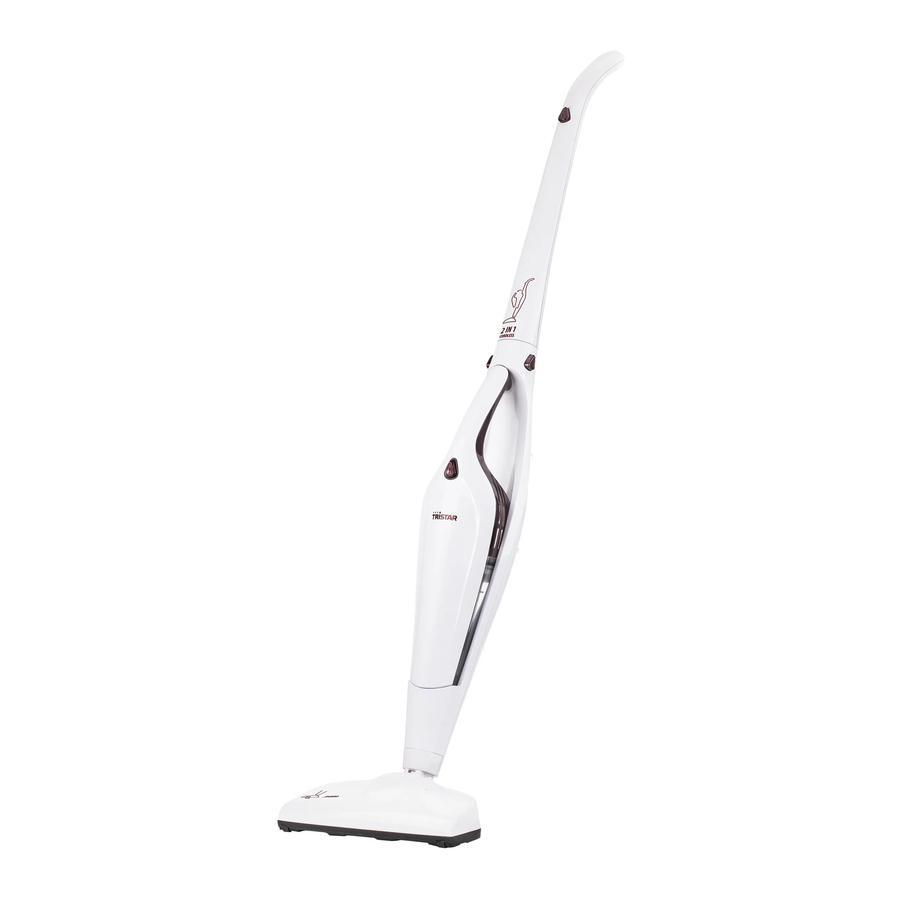

Tristar SZ-1917 - Vacuum Cleaner Manual

Table of Contents

PARTS DESCRIPTION

Parts Overview

Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
Assemble the charging base by clicking the support-piece on the foot
Assemble the vacuum cleaner by attaching the handle to the device
Plug the power adapter in the charging base and in the wall outlet

Hang the device on the charging station. Note: Always make sure that the device is turned off. The indicator lights will come on once the device has made contact with the charging station.
It takes 16 hours to fully charge the batteries before the first use.
When the device is totally discharged, approximately 14-16 hours charging is required for the battery to regain full capacity.
The adaptor may become warm during charging, this is normal.

You should regularly check that the nozzle cushions and the brush roller are clean in order to avoid scratching sensitive floors.
Start the device by pushing the on/off button
For tables, furniture and car seats you can remove the hand unit by pressing in the release button. The hand unit will now come free and can easily be removed.
The crevice nozzle can be fitted in order to reach awkward places.

Release the hand unit out of the handle.
Remove the whole dust container by pressing the release button and turn the dust container.
Pulling out the filters and emptying the contents of the dust container into a suitable vessel or bag.
The dust container and the filter can be cleaned and rinsed with warm water. Make sure the parts are dry before they are assembled.
Assembling the parts by following up the opposite procedures when detaching the dust container.

If the roller brush becomes blocked or jammed for any reason, the vacuum will be lower down. Than the roller brush have to be cleaned.
Carefully use a pair of scissors or a sharp knife to remove any items such as threads that may have become entangled.
If the roller brush needs to be lifted out, open the hatch cover by tuning the locking screw counterclockwise with a screwdriver. The brush will come free and can now be removed.
Lift out the roller brush and clean it.
After cleaning you can assemble the turbo brush by following the opposite procedures. Do not forget to attach the drive on to the brush.

If a wheel is jammed by threads or dirt, to prevent wear you need to clean this by time.
Remove the wheels by carefully prizing them loose using a screwdriver inserted into the cavity and lift them up.
Remove threads or any other objects that may have become jammed in the wheels axles. Reassemble the wheels by pressing them back in the floor brush.

This product is guaranteed for 24 months granted. Your warranty is valid if the product is used in accordance to the instructions and for the purpose for which it was created. In addition, the original purchase (invoice, sales slip or receipt) is to be submitted with the date of purchase, the name of the retailer and the item number of the product.
For the detailed warranty conditions, please refer to our service website: www.service.tristar.eu
