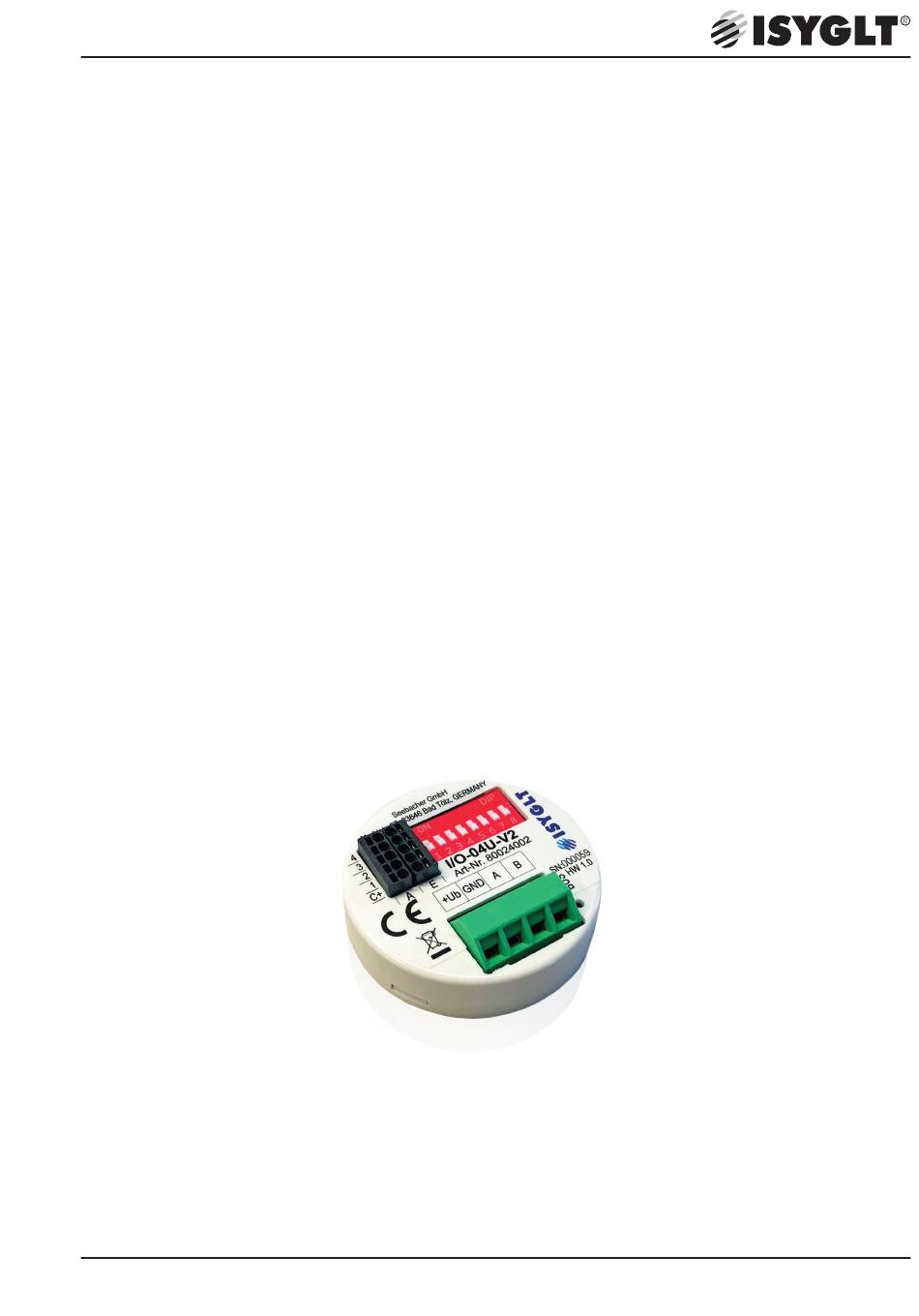

Technical Data / Instruction Manual
I/O-04U-V2
Article no. 80024002
Flush-mounted I/O Module
1
Seebacher GmbH
www.seebacher.de
Phone: +49 (0) 80 41 / 77 77 6
Marktstrasse 57, 83646 Bad Tölz
info@seebacher.de
Fax: +49 (0) 80 41 / 77 77 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I/O-04U-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for ISYGLT I/O-04U-V2

Summary of Contents for ISYGLT I/O-04U-V2

  • Page 1 Technical Data / Instruction Manual I/O-04U-V2 Article no. 80024002 Flush-mounted I/O Module Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...

  • Page 2: Notes On Documentation

    These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for 1.1.

  • Page 3: Safety Instructions

    Only use original spare parts and type. For applications with a higher required IP protection type, additional equipment from the manufacturer. the ISYGLT module must be installed in a housing or a cabinet 2.7. Liability notes with a higher IP protection type.

  • Page 4: Warranty

    These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.

  • Page 5: Product Description

    9. Product description The flush-mounted I/O module is used to couple illuminated pushbuttons to the subnet. With the module, 4 commands can be transferred to the BUS system and 4 signals can be output. The buttons and signal lamps are connected by means of push-in terminals, e.g. 4 pushbuttons or switches with feedback or separate signal lamp.

  • Page 6: 10. Technical Data

    10. Technical data Type designation I/O-04U-V2 Article no. 80024002 Operating voltage 12-27V DC Current consumption 10-100mA depending on output load Inputs +Ub -2V, 5mA via potential-free contact or 12-27V DC, line length max. 1m Outputs +Ub -2V, max. 15mA via OC outputs Subnet (RS-485) max.
  • Page 7 View Seebacher GmbH Marktstr. 57, 83646 Bad Tölz, GERMANY I/O-04U-V2 Art.-Nr. 80024002 +Ub GND A 50.0mm Depth with terminals 16mm Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...

  • Page 8: 11. Wiring Diagram

    11. Wiring diagram +24V +24V BUS-A BUS-A BUS-B BUS-B 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 I/O-04U-V2 I/O-04U-V2 BUS-Adresse BUS-Adresse Art.-Nr.: 80024002 Art.-Nr.: 80024002 Digital Output +24V DC Ext. Device Misprints and technical changes reserved.
