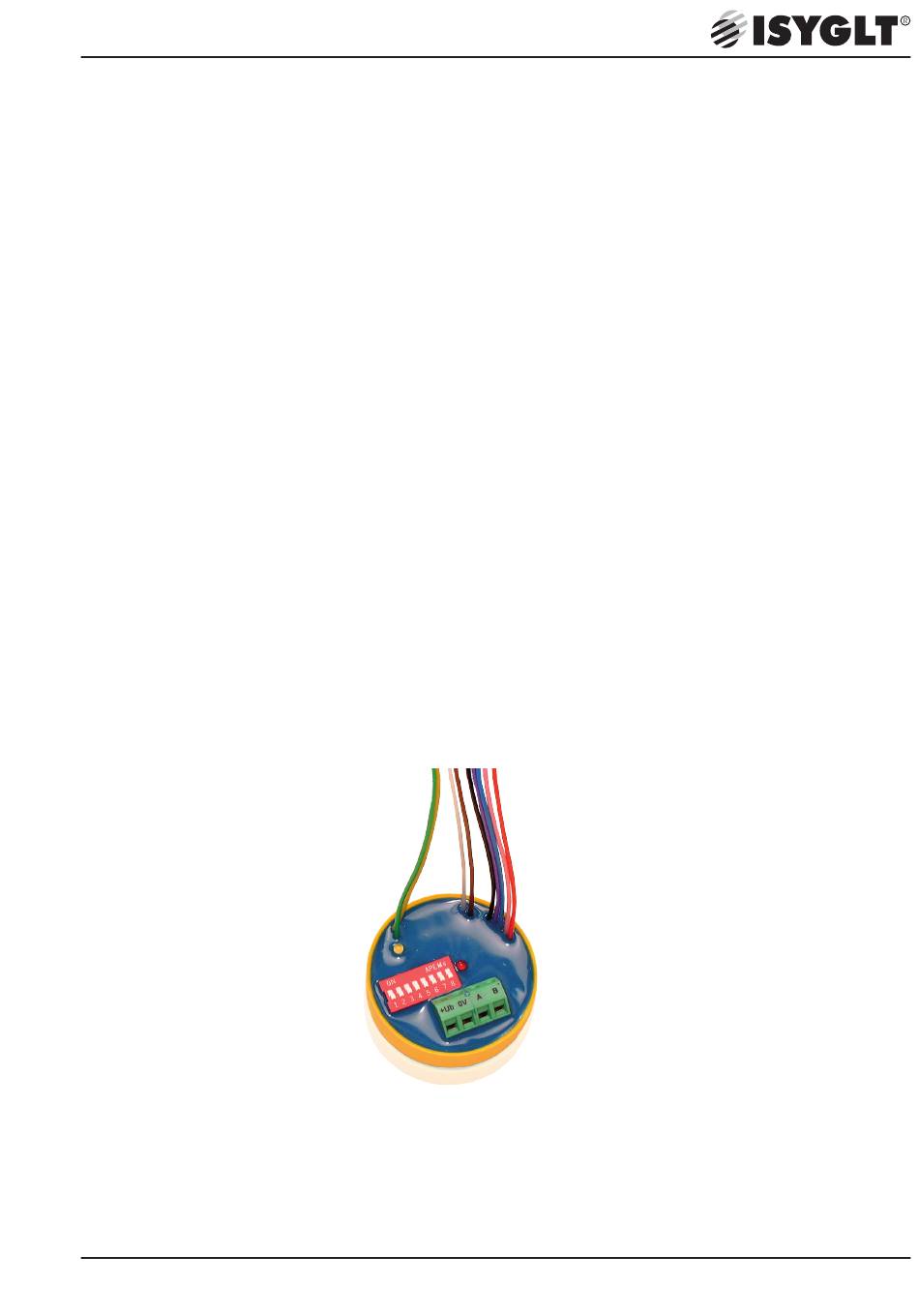

- Page 1 Technical Data / Instruction Manual I/O-04U Article no. 80024000 Flush-mounted I/O Module Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
- Page 2 These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further 1.1.
- Page 3 Protect module from humidity • ponents with tested standard plug connections, as well as operation and configuration of the ISYGLT module may only be carried out by In addition to these safety instructions, you must also observe trained staff. the special safety instructions listed in the individual chapters for the individual acts.
- Page 4 These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.
- Page 5 9. Product description The flush-mounted I/O module is used to couple illuminated pushbuttons to the subnet. With the module, 4 commands can be transferred to the BUS system and 4 messages can be output. The buttons and signal lamps are connected by means of prefabricated wires, e.g. 4 buttons or switches with feedback or separate signal lamp.
- Page 6 10. Technical data Type designation I/O-04U Article no. 80024000 Operating voltage 12-27V DC Current consumption 20-120mA depending on output load Inputs 12-30V DC 5mA (potential-free contact) via optocoupler (4.7kOhm) Outputs +Ub -1V, max. 20mA via OC outputs Subnet (RS-485) max. 5.6V limitation by Z-diodes...
- Page 7 View Input 3 (green) Input 2 (brown) Input 1 (white) COM. outputs+ (red) Output 1 (pink) Output 2 (blue) Input 4 (yellow) Output 3 (purple) Output 4 (black) Depth with terminals 18mm Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
- Page 8 11. Wiring diagram +24V BUS-A BUS-B ISYGLT I/O-04U Address 2 3 4 5 6 7 8 Art. no.: 80024000 Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de...
