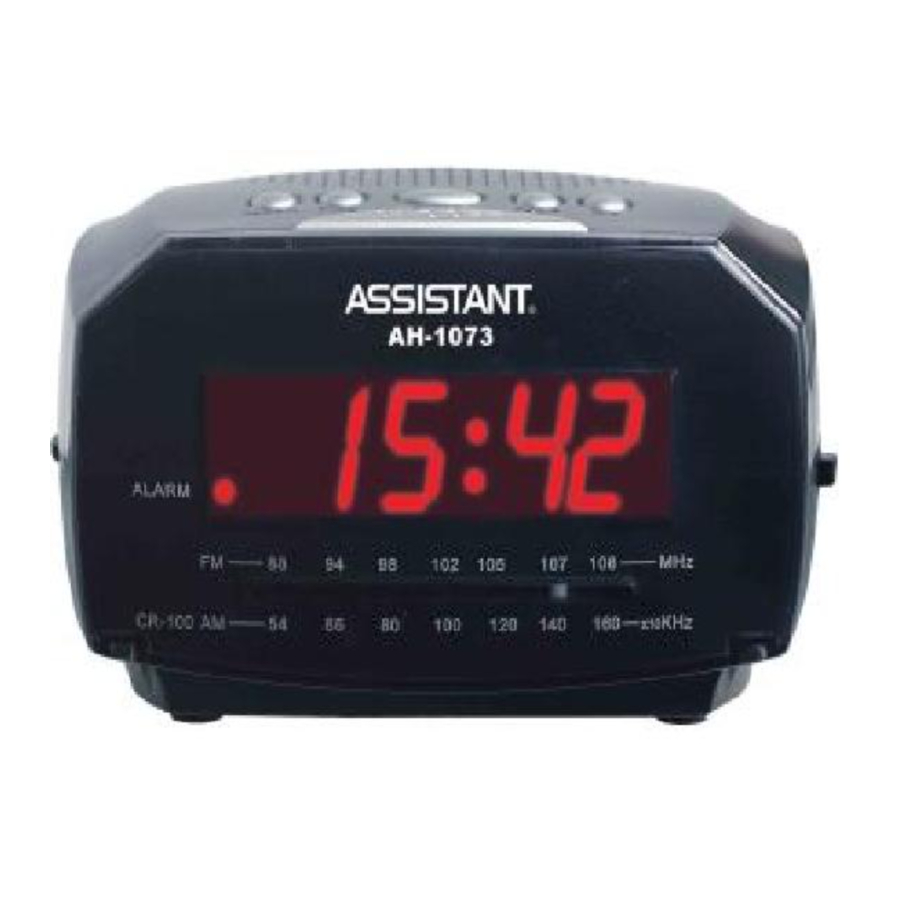

Assistant AH-1073 - LED AM/FM Radio Clock Manual

STRUCTURE

1. SNOOZE SET BUTTON
2. ALARM SET/OFF BUTTON
3. TIME SET BUTTON
4. SLEEP SET BUTTON
5. HOUR SET BUTTON
6. MINUTE SET BUTTON
7. LED DISPLAY
8. BAND SWITCH
9. POWER INDICATOR (DIAL POINTER)
10. TUNING CONTROL
11. BATTERY DOOR (Bottom)
12. VOLTAGE SELECTOR (Bottom) (OPTIONAL)
    (For dual voltage version only)
13. AC POWER CORD
14. FM ANTENNA WIRE
15. ON/OFF VOLUME CONTROL (BUZZ)
16. ALARM ON INDICATOR
17. FUNCTION SWITCH (ON/OFP/AUTO)
18. SPEAKER

UNIT OPERATION

This Electronic Clock-Radio should be operated on AC current only.
Your Clock Radio has a built-in antenna for AM reception which is directional. If the reception is not clear, try turning the radio to other directions.
The small flexible wire on the back of the unit is the FM antenna. For best reception, extend this wire to its full length.

TO PLAY RADIO

1. Slide the FUNCTION SMITCH (17) to ON position.
2. Slide the BAND SWITCH (8) to the band to your preference.
3. Select a station by rotating the TUNING CONTROL (10).
4. Adjust the VOLUME CONTROL (15) to a desired level.
5. To turn radio off. Slide the FUNCTION SWITCH (17) to OFF position.

TO SET THE TIME

1. Press and hold the TIME SET button (3).
2. Press the MINUTE SET button (6) until the correct minute setting is reached.
3. Continue holding the TIME SET button (3), press the HOUR SET BUTTON (5) until the correct hour setting is reached.

TO SET THE WAKE-UP ALARM TIME

1. Holding the ALARM SET button (2)
2. Press the MINUTE SET button (6) until the correct minute setting is reached.
3. Continue hold the ALARM SET button (2), press the HOUR SET BUTTON (5) until the correct hour setting is reached.

SLEEP FUNCTION

1. Slide the FUNCTION SWITCH (17) to OFF position.
2. Press and hold the SLEEP SET button (4), «59» will appear on the LED DISPLAY (7), indicating that the radio will shut off automatically in 59 minutes.
3. To shorten automatic shut down time, hold the SLEEP SET button (4) and press the MINUTE SET button (6) together to adjust as required.
4. To increase the automatic shut down time, hold the SLEEP SET button (4) and press the HOUR SET button (5) together to adjust as required. Maximum sleep time is 1 hour 59 minutes.
5. The SNOOZE button can be used to cancel the sleep function.

WAKE TO RADIO OR ALARM

1. Slide the FUNCTION SWITCH (17) to AUTO position.
2. When pre-set alarm time is reached, the radio will be switched on automatically for 120 minutes and then to be shut off automatically.
3. The unit will wake to ALARM instead of RADIO if the VOLUME CONTROL (15) is turned to BUZZER position (a «click» sound could be heard)

SNOOZE BUTTON

1. When the alarm is ringing, press the SNOOZE button (l), the unit will be shut OFF and switched ON again in exactly 9 minutes. You may repeat this operation within a period of 45 minutes after the pre-set alarm time.

BATTERY BACK-UP FOR CLOCK

1. Open the BATTERY DOOR (11), install a 9-volt battery into the battery compartment
2. When there is a power failure, the radio and the LED display will no longer operate, but the 9V battery will keep the clock going.
3. So, as soon as the power failure is over, the LED DISPLAY (7) will show the correct time immediately without the need for time adjusting.

MAINTENANCE

1. Do not place your clock radio in a high temperature area, such as under direct sunlight or close to a radiator. Excessive heat will damage the unit.
2.
   Do not expose your clock radio to rain or moisture to prevent fire or shock danger.
3. Do not use polish solvents or strong detergents to clean the unit. The cabinet can be cleaned with a piece of soft cloth or if necessary to be cleaned with a piece of soft cloth soaked with little water. The power plug should be disconnected from the mains supply during the cleaning.
