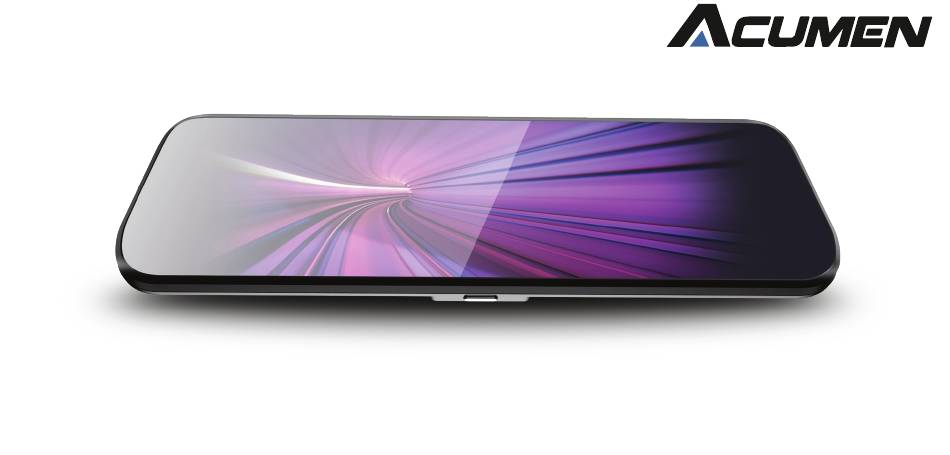

  • Page 1 XR10...
  • Page 2 Introduction Thank you for choosing Acumen. XR10 is designed to solve accident investigation problems. It can also be used in different situations, such as meeting recording, supervision, and road-trip recording. Acumen strive to design better cameras to make your d`riving experiences better and safer.
  • Page 3 Please read the instructions carefully and understand the warnings in this user manual before operation. We hope this device meets all of your needs. As the specifications maybe changed due to technical upgrades, Acumen reserves the right to change, modify, add or remove portions of these terms...
  • Page 4 Privacy Notice Please note that this product is for personal use only and may not be used in violation of national or international copyright/privacy laws. That is, the recorded images are for personal use only and may not be distributed to the public.

  • Page 5: Installation Notice

    Installation Notice This product should be installed close to the rear view mirror for the best view. However, some states prohibit drivers from mounting anything on windshield or on certain area of the windshield. It is owner’s responsibility to mount or use of this device in compliance with local laws.
  • Page 6 Do not try to change any settings while driving. Do so after you pull off the road. As the specifications maybe changed due to technical upgrades, Acumen reserves the right to change, modify, add or remove portions of these terms at any time without prior notice.

  • Page 7: Product Accessories

    Product Accessories The following items are product accessories. If there are any missing or damaged items, please contact seller immediately. Rearview mirror Fusebox Back-up 12v Power Rubber bands Power Cable Camera Cable...
  • Page 8 WARRANTY CARD Backplate Mirror mount Universal Acumen Mount point Warranty Card The pictures above are for refernces only, actual product may differ.

  • Page 9: Product Guide

    Product Guide...
  • Page 10 Product Guide USB Port Plug in the 12v power cable into the mini USB port Back Up camera Plug in the backup camera cable into this port Memory card slot Micro SD memory card slot make sure it is inserted in the correct direction.
  • Page 11 Keep pushing until it clicks and locks in place. XR10 is a high bit-rate dash camera. It requires high speed rating SDcards, so please use high speed memory card to support this dash cam (at lease class 10).
  • Page 12 Initial Settings for the Device: 1.In the menu home page, click the setting icon to enter the settings menu. 2.Use the touch screen to choose date and time 3.Press to select or to change. Once done, press save the settings.

  • Page 13: Video Recording

    Video Recording 1. The device will automatically start recording when powering. Recording will stop after the car is off. Or use the button to manually stop recording. 2. For other types of recording: Press button to start recroding; Press again to stop recording. Note: Choose either 1-min, 3-min or 5-min to split your video files length to selected setting.
  • Page 14 Playback 1.the playback icon is on the home page. Click to enter the playback inter- face. 2.Files with icon are regular videos. Files with icon are locked files. Files with icon are front camera videos. Click Again to switch to backup camera videos. Files with icon are backup videos.
  • Page 15 Features ADAS With advanced visual algorithm, the XR10 smart dash camera is able to alert the driver when necessary. Lane Departure Warnings: The XR10 smart dash cam will alert the driver when it detects the vehicle drafted apart from the center of the lane.
  • Page 16 Parking Mode (Turned off by default) 1) After turning on the parking mode, the camera will be turned on automatically, if the vehicle receives external forces. The camera will record 10-20 seconds after the collision and then shutdown, until another collision detected. 2) The files will be saved automatically.
  • Page 17 Time-lapse video function When the vehicle is turned off, the recorder automatically enters the low frame rate time-lapse recording mode (turned off by default). After the time-lapse record- ing function is activated, the screen display will be automatically turned off in 10 seconds.

  • Page 18: Backup Camera

    Backup camera Connect the power cable to the backup camera. Then connect the red power cable to the positive line of the backup light. After turning on the car, the screen should display backup camera view when shift to reverse gear and switch back to recording mode once it’s not in reverse gear.
  • Page 20 1. Speed display: Speed will be displayed here after connecting to external GPS. No speed will be shown if the external GPS is disconnected. 2. Streaming Media: Display backup camera footage. 3. Recorder: Display dash camera footage. 4. Still Capture: Take a picture. 5.
  • Page 22 1. Red dot: The red dot indicates the camera is currently recording; 2. Brightness: Tap this icon to adjust the brightness; 3. Time display: Display system time. Please set it up before use; 4. Home: Tap the home icon to go to home page; 5.
  • Page 24 1.Back: Tap this icon to exit the playback interface; 2.Regular videos: Regular video files; 3.Video folder: Swipe up and down to choose files. Click on the file to play the video; 4.Header: Display the current file storage page; 5.Locked files folder: Tap this icon to view the locked video files; 6.Photo folder: Tap this icon to view the photo files;...
  • Page 25 Settings Product Name XR10 Core Type Dual Core Special Features High Resolution Videos, Touch Screen ADAS Video Pixel 3 Megapixel Picture Pixel 8 Megapixel Date and Time Display Support Operation Memory 1024 M Lens Aperature F2.0 Support Night Vision Motion Detection...
  • Page 26 Settings Video Format Picture Format Video Resolutions 1920 x 1080 / 1280 x 720 Color Effect Standard Loop Recording Seamless Loop Recording G-Sensor Supports low, medium, high settings Auto Shut Down Auto on when ignition, auto off when engine is turned off Memory Card TF/Micro SD from 8GB to 128GB, recommend class 10 SD card Support...
  • Page 27 Settings USB Function Power in Parking Mode Support Power Input 5V 2.5A Batter 500 MAH...

  • Page 28: Screen Installation

    Screen Installation 1.Remove the existing mirror 2.Take off the elastics on the back. 3.Peel off the rubber tape and you will see four screws.
  • Page 29 4. Unscrew the 4 screws and place them in a safe place. Do no lose them. 5.Take off the two bands attachment on the back and screw on the backplate onto the dash cam, using the screws removed earlier. 8.! Plug...
  • Page 30 6. Use the other 4 screws included to screw the roatable mirror mount onto the backplate USB car charger to the cigarette lighter (Tuck the wire into your car to hide the wires) or connect the wire...

  • Page 31: Troubleshooting

    Trouble Shooting Please refer to the following possible solutions for problems. If the problems cannot be solved, please contact our support department immediately. 1. Camera does not turn on. Check if the cable is installed correctly; or remove the memory card and reboot. 2.
  • Page 32 4. The video quality is not consistant: The video quality is subject to the lighting environment. Backlighting, frontlighting and glare may affect the video quality. 5. There are streaks in the image: This is due to the wrong "light source frequency" setting under the fluorescent light.The domestic frequency is "120HZ".
  • Page 33 Disclaimer The audios and videos recorded by the recorder are for reference only. Special notice: The camera works well under normal conditions. However, the following situations may damage or even lose the data: 1. Pulling out the SD card while recording, may lose the last recorded file. 2.
