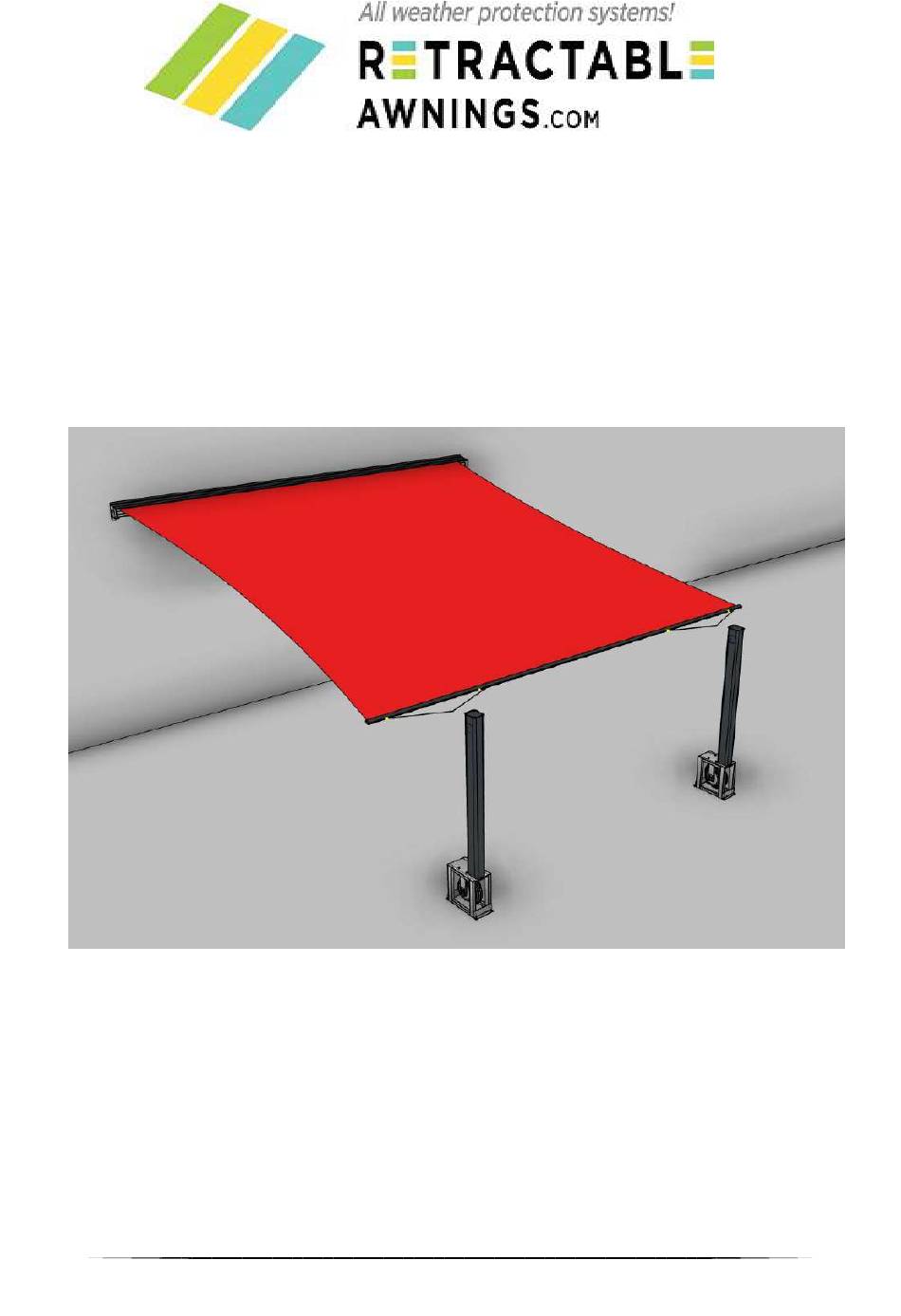

Hamburg
Installation Instructions
Assembly Instructions
All information contained in this document was provided by the
manufacturer of the components for this particular model. As a
fabricator/distributor, Retractableawnings.com Inc. claims no
liability with respect to these documents as we are not engineers
and did not complete any of the information, engineering or
calculations in this document.
All measurements in this document are metric. To convert from
metric (meters, centimeters and millimeters) to imperial (feet
and inches) visit this website:
http://www.onlineconversion.com/length_common.htm
1
Advertisement
Related Manuals for Retractable Awnings Hamburg
Summary of Contents for Retractable Awnings Hamburg
- Page 1 Hamburg Installation Instructions Assembly Instructions All information contained in this document was provided by the manufacturer of the components for this particular model. As a fabricator/distributor, Retractableawnings.com Inc. claims no liability with respect to these documents as we are not engineers and did not complete any of the information, engineering or calculations in this document.
- Page 2 Table of contents Page Installation of the Sunshield awning sail without a free-standing Installation of the Hamburg awning sail without a free standing rack (wall mounted) rack (wall mounting)) Mounting free-standing frame Assembly of the balancer posts Extending and hanging in the awning sail...
- Page 3 Installation of the Sunshield awning sail without a free-standing Installation of the Hamburg sail awning without a free standing one rack (wall mounting) rack (wall mounting) Before attaching the awning sail, check whether the existing building is suitable for the attachment of an awning sail.
- Page 4 Mount the canopy. The holes for fixing to the wall and possibly the grommet for the motor cable must be drilled on site in the canopy. Mounting free-standing frame The free-standing frame is delivered in 5 individual parts. 2x support posts 2x base plate (standard and/or flush) 1x cross member (completely pre-assembled)
- Page 5 The mountings for the consoles are already present on the frame (stud bolt M12, including M12 nut and washer) Screw the floor panels onto the support posts...
- Page 6 Set up the support posts with base plate and position them on the foundation (size at least 80x80x80cm). Align the support posts parallel and according to the order dimension. Drill the holes in the foundation. Recommended assembly with injection mortar and M16 threaded rods. Verify with your local structural engineer After the grout has hardened, use the nuts to align the post plumb under the base plate and then tighten all the nuts.
- Page 7 Once the freestanding frame is fully assembled, proceed to point 1.6. 2.10 The process is identical for a double awning sail (on both sides). The procedure from point 1.6 must be carried out twice. Assembly of the balancer posts During installation, it is important to ensure that all dimensions are observed according to the manufacturer's specifications and order dimensions, and that both balancers are aligned symmetrically and parallel to the direction of travel of the awning sail.
- Page 9 After aligning the balancers, drill the holes (4 per balancer) into the foundations (size at least 80x60x80cm HxWxD). Recommended assembly with injection mortar and M12 threaded rods. (like point 2.6). After the mortar has hardened, place a threaded nut on each of the threaded rods to adjust the balancer in all Verify with your local structural engineer.
- Page 10 Remove the clamp stone and the octagonal plate. Adjusting the end positions of the awning sail In the case of a balancer with integrated height adjustment, the end positions are already set at the factory For programming the end positions, please refer to the enclosed operating instructions from the motor manufacturer.
- Page 11 This is NOT a defect, but a safety feature of the engine. Adjust the end position when retracted so that the drop profile still has a distance of approx. 1 cm to the shaft. Due to the high spring tension of the balancers and the winding properties of the fabric, it is possible that the front rail is slightly curved when it is retracted.
- Page 12 Floor plate for the free-standing frame (millimeters [inches]) Galvanized steel Base plate flush for the free-standing frame (millimeters [inches]) galvanized steel...
- Page 13 Wall bracket without protection roof (Millimeter [Inch]) A2 Stainless steel Wall bracket with protection roof (mm [inch]) A2 stainless steel...
- Page 14 Balancer (Millimeter [ Inch]) All information contained in this document was provided by the manufacturer of the components for this particular model. As a fabricator/distributor, Retractableawnings.com Inc. claims no liability with respect to these documents as we are not engineers and did not complete any of the information, engineering or calculations in this document.
