INSTRUCTION MANUAL•MANUEL D'INSTRUCTION
ARIA

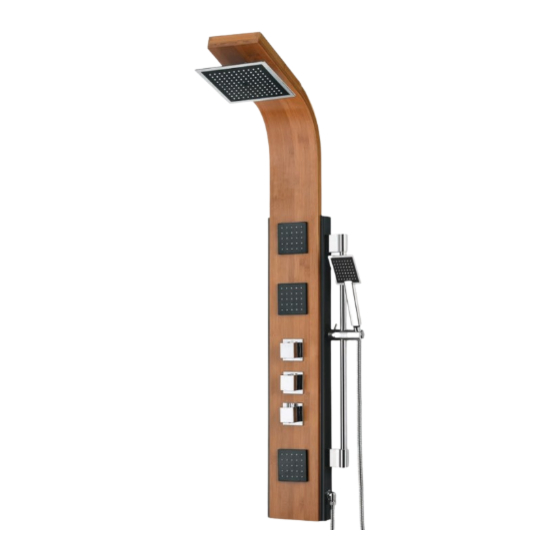

Thermostatic shower panel
Colonne de douche thermostatique
A QUESTION | A DOUBT | MISSING A PARTS
UNE QUESTION | UN DOUTE | PIÈCE MANQUANTE
Store/Magasin
1 844 666-0155
question@dimex360.com
Model/Modèle : SPM 0404
A QUESTION, A DOUBT, MISSING A PARTS, CONTACT US. We're there if you need help.
UNE QUESTION, UN DOUTE, PIÈCE MANQUANTE, CONTACTEZ-NOUS.
Nous sommes à vos côtés si vous avez besoin d'aide.
1 844 666-0155 • question@dimex360.com
2023-01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Akuaplus ARIA SPM 0404
Summary of Contents for Akuaplus ARIA SPM 0404

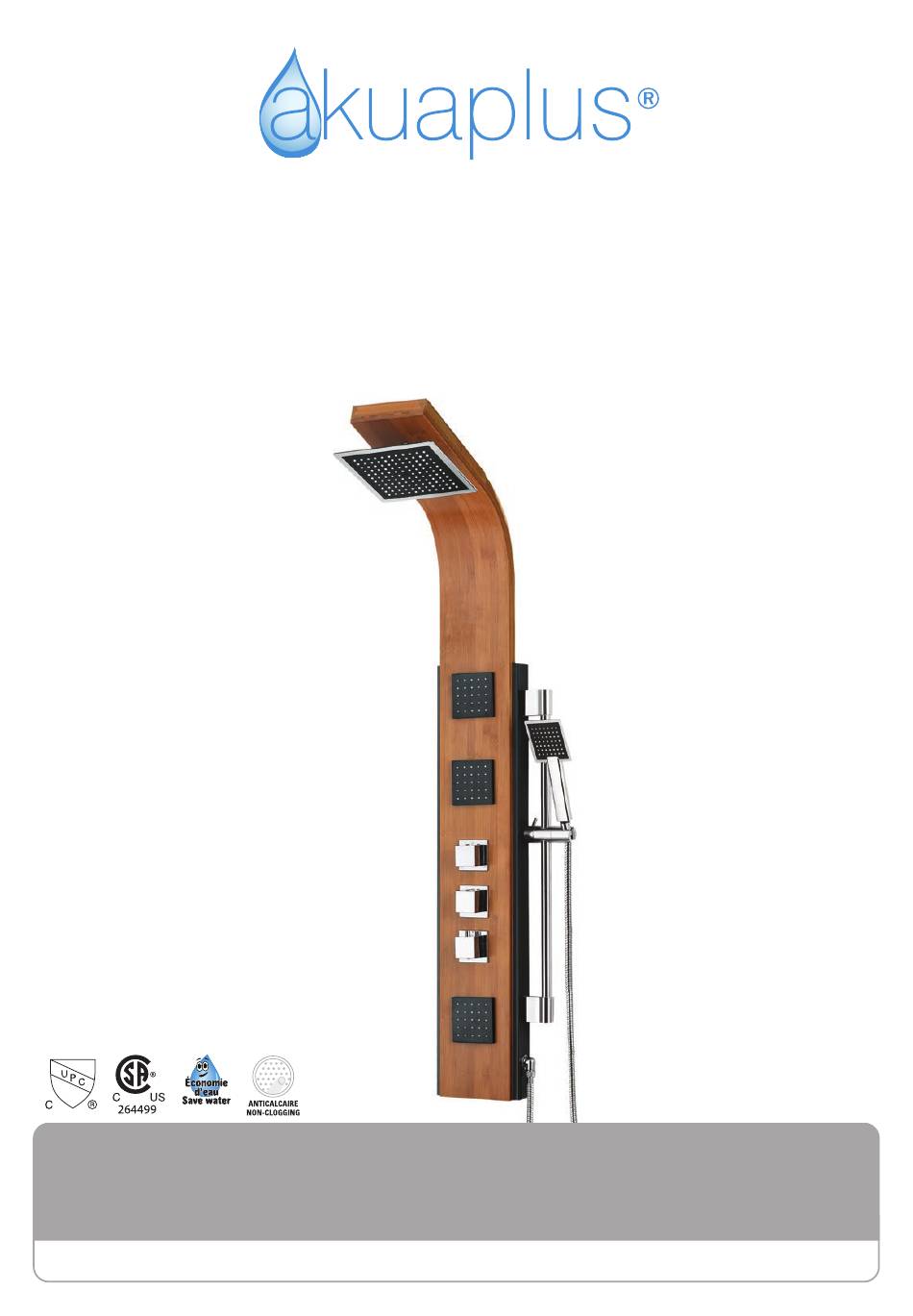

- Page 1 INSTRUCTION MANUAL•MANUEL D’INSTRUCTION ARIA Thermostatic shower panel Colonne de douche thermostatique A QUESTION | A DOUBT | MISSING A PARTS UNE QUESTION | UN DOUTE | PIÈCE MANQUANTE Store/Magasin 1 844 666-0155 question@dimex360.com Model/Modèle : SPM 0404 A QUESTION, A DOUBT, MISSING A PARTS, CONTACT US. We’re there if you need help. UNE QUESTION, UN DOUTE, PIÈCE MANQUANTE, CONTACTEZ-NOUS.
- Page 2 We recommend that you hire a professional plumber to install and repair this product. Refer to the regulations stipulated in the Plumbing Code and inquire about your municipality’s requirements before proceeding to the installation. The Plumbing Code requires the installation of a water-hammer arrestor. ALLOW PROPER A QUESTION, A DOUBT, MISSING A PARTS, CONTACT US.
- Page 3 38 41 24 25 #40 TD76 89 mm 76 mm 71 mm...
- Page 4 Parts list/Liste de pièces N°/No. Description Qté/Qty N°/No. Description Qté/Qty 1 Shower panel Colonne de douche 29 Plastic anchor Cheville en plastique 2 Shower head kit Ensemble de la pomme de douche 30 Aluminum body Corps en aluminium 3 Washer Rondelle d’étanchéité...
- Page 5 Recommended preparation of your wall / Préparation recommandé de votre mur 2x6 in. Piece of wood reinforcement Pièce de renforcement fait de 2x6 po Not included Non inclus 1/2” NPT You will need to reinforce your wall with 2 x 6 inches pieces of wood as shown (2), to do this, place the shower panel against the wall at the desired height (1) to measure and mark the position of the top bracket for the 2 x 6 (A), bottom bracket position for the 2 x 6 (C), and the 2 x 6 position of the 90˚drop ear elbow (B).
- Page 6 Place and mark the upper shower panel bracket (F), measure the distance between the both shower panel brackets (H) in order to place and mark at the right position the support of the bottom (G). Placez et marquez le support de la colonne de douche du haut (F), mesurez la distance entre les deux supports de la colonne (H) afin de...
- Page 8 Put on the impurity filter washer (A). Apply teflon (B) tape on thread. Install the 90° (if necessary) by screwing them in firmly by hand and tighten with ¼ turn with an adjustable wrench. Connect the hoses to the shower panel while making sure they are not twisted. Install the shower panel on the wall brackets. It is recommended not to apply silicone seal around the panel.
- Page 9 Water temperature adjustment Réglage de la température You may need to calibrate the water temperature, this is possible at this stage. In order to obtain the desired temperature, turn to the left for warmer water and to the right for cooler water. Put the handle back in place. Il se peut que vous ayez à...
-
Page 10: Troubleshooting Guide
This akuaplus® product has been designed to meet high-quality standards and comes with a limited lifetime warranty on Ce produit akuaplus® a été conçu pour répondre à des normes de haute qualité très strictes et est assorti d’une garantie à vie cartridges and a 1-year warranty against a manufacturing defect after the date of purchase.
