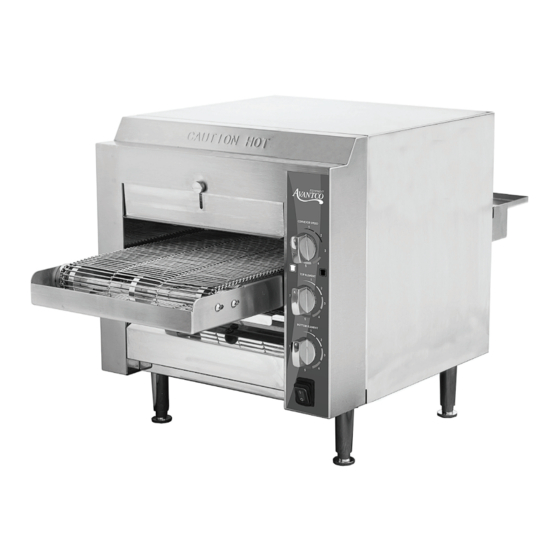

- Page 1 User Manual Adjustable Speed 5009704 Conveyor Ovens Conforms to UL STD.197 Models: 177CVROV10RA, 177CVROV10RB, 177CVROV10RD, 177CVROV14RB, 177CVROV14RD Please read and keep these instructions. Indoor use only. 10/2022...
- Page 2 User Manual Index Specifications ..........2 Safety Information ........3 Circuit Diagram ......... 4-5 Installation ............ 6 Before Use ............ 6 Operation Instructions ......... 6 Specifications ..........6 Cleaning & Maintenance ......7 17" (10A, 10B, 10D) 20" (14B, 14D) 36.5"...
- Page 3 User Manual Important Safety Information When using electrical appliances, basic safety precautions should always be followed, includ- ing the following: 1. Read all instructions carefully and completely. 2. For commercial use only. 3. DO NOT touch hot surfaces. 4. Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids.
- Page 4 User Manual Circuit Diagrams 120V 120V 60Hz 60Hz 177CVROV10RA Description Main Switch E1 / E2 Top Element - 420W / 60V E3 / E4 Bottom Element - 420W / 60V Conveyor Motor - 120V Cooling Fan - 120V Conveyor Speed Control...
- Page 5 (M1) User Manual Circuit Diagrams 208V or 240V 60Hz 177CVROV14RB & 177CVROV14RD Description Main Switch E1 / E2 Top Element - 875W / 100V (14B) or 900W / 120V (14D) E3 / E4 Bottom Element - 875W / 100V (14B) or 900W / 120V (14D) 177CNVYOV14B-208V Conveyor Motor - 240V 177CNVYOV14D-240V...
- Page 6 User Manual Installation CAUTION To reduce the risk of fire, the appliance is to be installed on a non-combustible surface and in non- combustible surroundings only, with no combustible material within 18" of the sides, front, or rear, or within 40" above the appliance. NOTE: Model 177CVROV14RB is for use on an individual branch circuit ONLY.
- Page 7 User Manual Cleaning & Maintenance CAUTION • DO NOT immerse the appliance in water. • ONLY USE a damp cloth or sponge dipped in soapy water. • DO NOT use steel wool as it will damage the stainless steel finish. Exterior 1.
