Summary of Contents for Avantco Equipment 177CO38M
Page 1

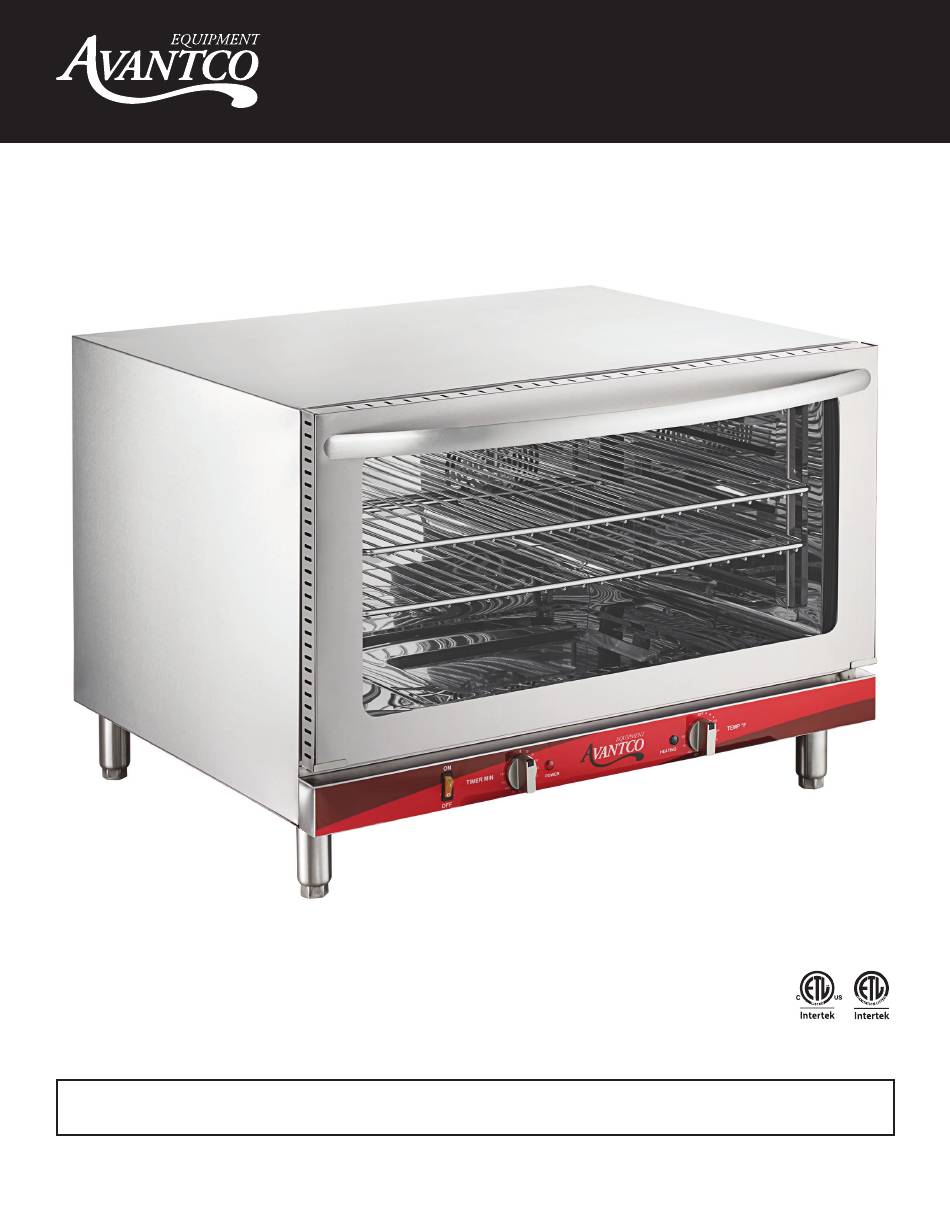

User Manual User Manual Countertop Convection Oven 10/2021 Models: 177CO38M (No Steam), 177CO46M (With Steam) Please read and save these instructions for future reference. Indoor use only.
User Manual Index Important Safeguards ������������������������������������������������������������������������� 3 Identification of Key Parts ������������������������������������������������������������������� 4 Identification of Accessories ���������������������������������������������������������������� 4 Usage Guidelines ��������������������������������������������������������������������������������� 5 Installation of Your Oven ��������������������������������������������������������������������� 5 Before Using Your Oven ����������������������������������������������������������������������� 6 Using Your Oven ���������������������������������������������������������������������������������� 6 Typical Operation Sequence ���������������������������������������������������������������� 6 Temperature Control Knob ������������������������������������������������������������������...
User Manual Important Safeguards When using electrical appliances, basic safety precautions should always be followed, including the following: Read all instructions carefully and completely. For commercial use only. Do not touch hot surfaces. Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids.
(on the backside) only for 177CO46M Timer Power Light Foot Heating Light Humidity Thermostat Button only for 177CO46M Identification of Accessories Roasting Racks - TRAY for 177CO46M and 177CO38M Recommended Bun Pans - Full Size (407BUNFULL) for 177CO46M and 177CO38M www.AvantcoEquipment.com...
*Usage: approximately 4 hours per day, 5 days a week. Installation of Your Oven 177CO46M and 177CO38M is 208-240V/60Hz, use 6-30P NEMA plug. All electrical connections must comply with specification and power standard, the installation operation must be done by qualified personnel.
User Manual Before Using Your Oven Before cooking anything in your oven for the first time, please follow these simple instructions: Using a small amount of detergent, wash the handle and roasting racks with soapy water. (NOTE: Do not use a spray or abrasive polishing agent.) Gently wipe down interior walls with a damp cloth. While washing this unit, do not to touch the electric heating element. Do not soak the inside of the oven with water. After washing and thoroughly drying the surfaces noted above, place the roasting racks back inside the oven. For first-time use of the oven, close the door and turn the bake control to max temperature. Set the timer for 30 minutes. During this burn-in you may notice a slight odor, this is normal. This process helps remove any fumes or odors which may be present. Using Your Oven To start your oven, you need to turn on the temperature dial to set your desired cooking temperature, and turn on the timer dial to set the cooking time.
User Manual Temperature Control Knob The temperature range of this unit is 0-500°F. This thermostatic switch controls the temperature inside the oven and helps to maintain the proper temperature during various heating, roasting, and baking applications. Power & Temperature Indicator Light Anytime this appliance is connected to the power supply with the temperature knob turned on, the power and heating indicator light will be on and the fan motor will begin to operate. Protection Component If the temperature of this oven reaches an unsafe limit, the electrical components will shut off and it will stop operating in order to prevent overheating. Cleaning & Maintaining Your Oven To clean, first remove the power cord’s plug from the wall outlet. Wait for the oven to cool. Use a damp cloth or sponge to gently wipe down the inside of the oven. Avoid soaking the inside of the oven or washing it in running water as this will cause serious damage to the unit.
User Manual Specifications Model # Power Supply Dimensions Unit Weight Size Capacity Rack # Plug 177CO38M 208/240V, 60Hz, 3500-2800W 32"W x 28"D x 23"H 100 lbs. (112 lbs. shipping) Full 4.4 cu. ft. 4 Racks NEMA 6-30P 177CO46M 208/240V, 60Hz, 3500-4600W 32"W x 28"D x 23"H...
User Manual Parts List PART NAME PART NAME PART NAME PART NAME Power cord Connection Pole Door Trim Hinge Assembly Wire buckle Water Spray Pipe Right Door Frame Shell Space holder Connection Plate Outer Glass Sensor Fixture Rear board Tray Grid Front Door Frame Internal Light Fan motor...
Limited Warranty Avantco Equipment warrants its equipment to be free from defects in material and workmanship for the prescribed time listed below, when purchased from an authorized dealer and appropriately installed in the United States. This is the sole and exclusive warranty made by Avantco covering your Avantco brand equipment. A claim under this warranty must be made within the prescribed time from the original date of delivery of the equipment.
Page 12
Replacement Warranty Coverage Limitations warranty applies to all Avantco Equipment products not specified below. This warranty applies to all Avantco Equipment products not specified below. Month Replacement Warranty This limited warranty does not cover: warranty applies only to the following item numbers: •...
